Mitsubishi FR-D740-0.75K-CHT

Mitsubishi FR-D740-0.75K-CHT | 0.75kW Compact Inverter – FR-D700 Series

Overview

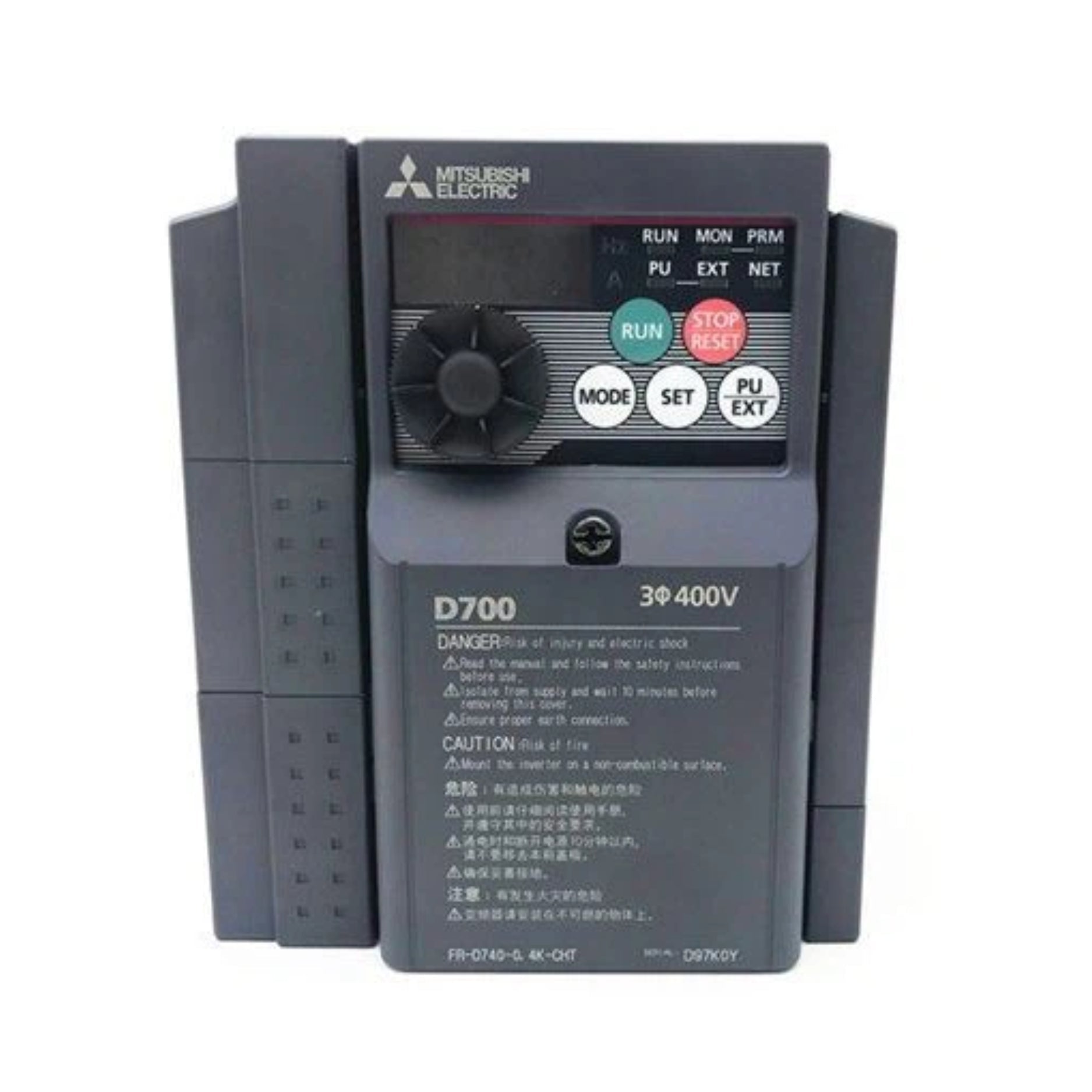

The Mitsubishi FR-D740-0.75K-CHT is a 0.75kW (1 HP) variable frequency drive from the FR-D700 Series, specifically designed for 3-phase 380–480V AC input applications. As a CHT model, it’s optimized for the Chinese market but widely compatible globally. Ideal for compact control panels and energy-efficient motor management.

Key Features

• Output Power: 0.75kW (1 HP)

• Input Voltage: 3-phase 380–480V AC

• Output Frequency: 0.2–400 Hz

• Control Method: V/F control and advanced PID

• Integrated Functions: Auto energy-saving, fault diagnostics

• User Interface: Built-in keypad and LED display

• Compact Size: Optimized for panel space efficiency

Technical Specifications

• Model: FR-D740-0.75K-CHT

• Series: FR-D700

• Rated Output Current: 2.5A

• Overload Capacity: 150% for 60 sec

• Cooling Method: Natural air cooling

• Ambient Operating Temperature: -10°C to +50°C

• Protection Features: Overvoltage, overload, ground fault, overheat

• Mounting: Wall or DIN rail mount

• Weight: Approx. 1.0 kg (2.2 lbs)

• Certifications: CE, UL (varies by region)

Applications

• Pumps and fans

• Small conveyors

• HVAC units

• Industrial mixers

• Machine tools and automation

Why Choose the FR-D740-0.75K-CHT?

• Reliable Performance: Proven stability and durability in diverse environments

• Space-Saving: Small form factor perfect for tight enclosures

• Energy Efficient: Reduces consumption with intelligent motor control

• Global Compatibility: Operates reliably with 380–480V systems

Order Now

The Mitsubishi FR-D740-0.75K-CHT VFD is available for immediate shipping.

Discover more options in the Mitsubishi FR Series Frequency Inverters (FREQROL category, designed for precision motor control, energy efficiency, and industrial automation.

For additional solutions, explore the full range of Mitsubishi products.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
