Mitsubishi FR-D720S-2.2K-CHT

Mitsubishi FR-D720S-2.2K-CHT

Overview

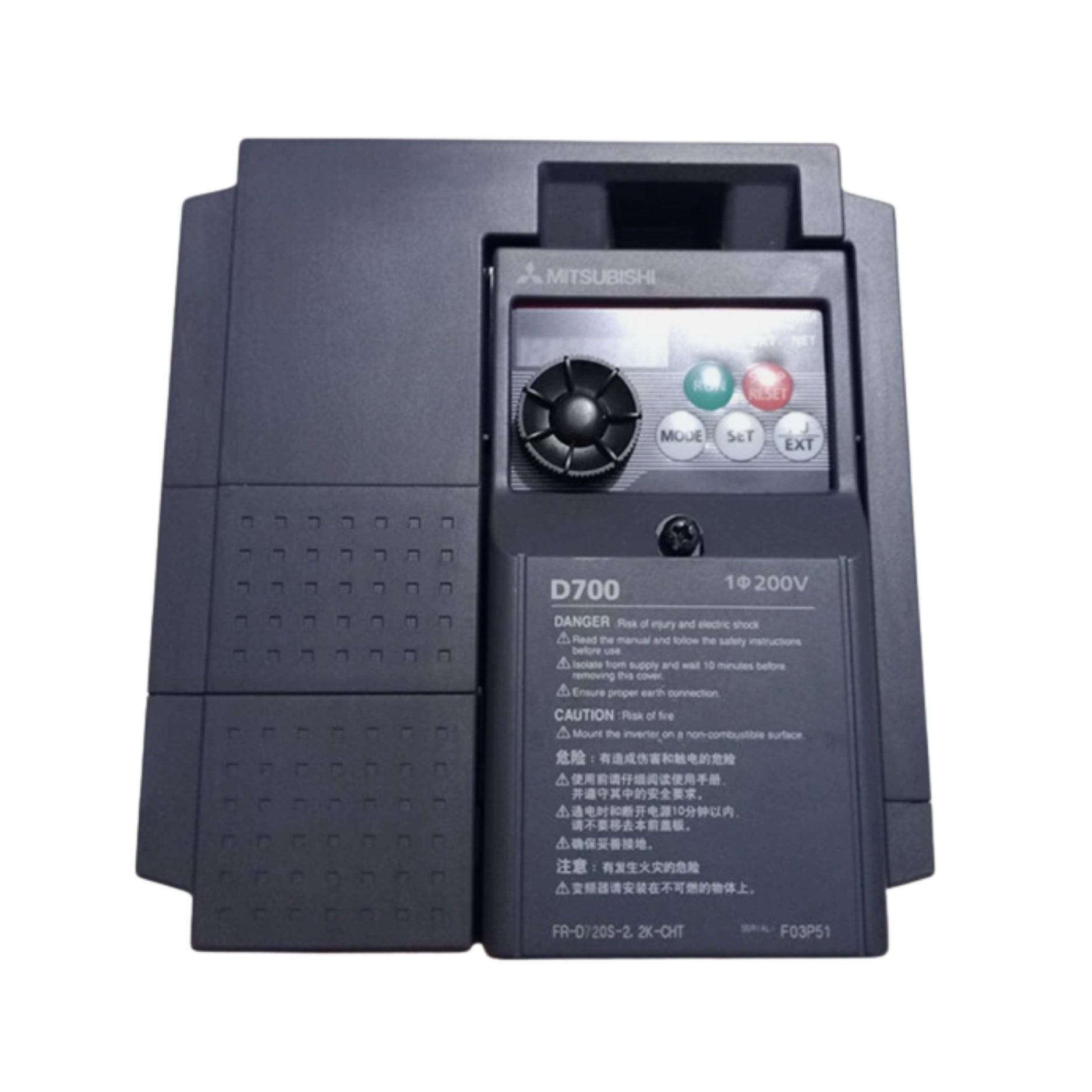

The Mitsubishi FR-D720S-2.2K-CHT is a compact frequency inverter rated at 2.2 kW, part of the D700 series. Designed for efficient and simple motor control in space-limited installations, it operates on a single-phase 220 V input and supports V/Hz control. Ideal for OEMs and end-users seeking high reliability and easy setup.

Key Features

• Power Rating: 2.2 kW (3 HP)

• Input Voltage: 1-phase 220 V AC

• Output Voltage: 3-phase 200–240 V

• V/Hz control with auto-tuning

• Integrated keypad with LED display

• Compact and DIN-rail mountable design

• Built-in safety and overload protection

• RS-485 communication interface

Technical Specifications

• Catalog Number: FR-D720S-2.2K-CHT

• Input Voltage: 1×220 V AC ±10%

• Output Frequency: 0.2–400 Hz

• Output Voltage: 3×200–240 V AC

• Power Output: 2.2 kW

• Control Method: V/Hz

• Protection Class: IP20

• Operating Temperature: –10 °C to +50 °C

• Mounting: Wall or DIN rail

• Cooling: Natural convection

• Certifications: CE, UL, cUL, RoHS

Applications

• Small conveyors and mixers

• Pumps and ventilation fans

• Compact packaging machines

• Door and gate automation

• Light-duty industrial machinery

Why Choose the FR-D720S-2.2K-CHT

• Compact size with robust performance

• Easy installation and quick commissioning

• Proven Mitsubishi reliability

• Versatile input/output compatibility

• Efficient control for light-to-medium duty drives

Order Now

The Mitsubishi FR-D720S-2.2K-CHT frequency inverter is available and ships worldwide.

Discover more options in the Mitsubishi FR Series Frequency Inverters (FREQROL category, designed for precision motor control, energy efficiency, and industrial automation.

For additional solutions, explore the full range of Mitsubishi products.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
