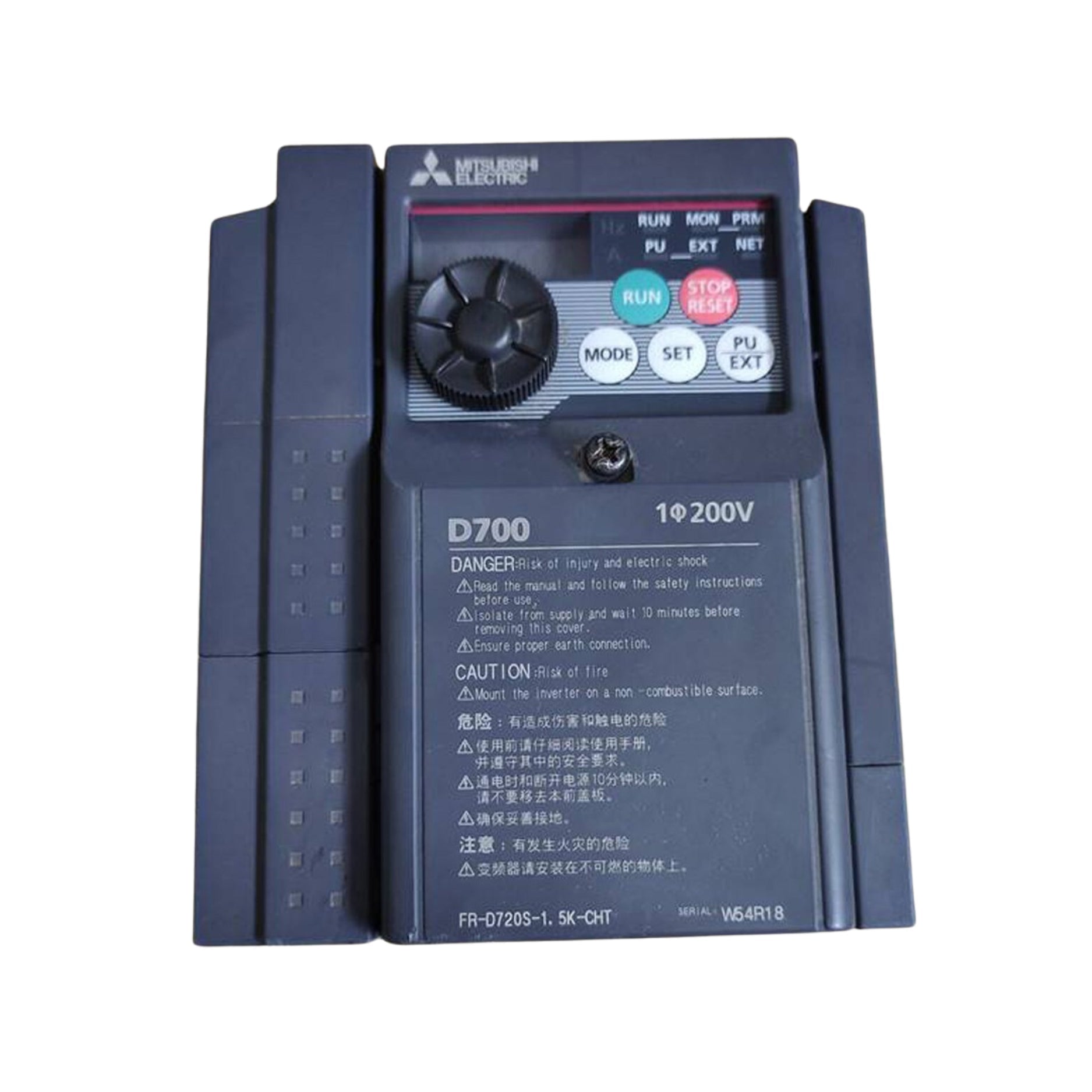

Mitsubishi FR-D720S-1.5K-CHT

Mitsubishi FR-D720S-1.5K-CHT

Overview

The Mitsubishi FR-D720S-1.5K-CHT is a compact variable frequency drive (VFD) from the D700 series, designed for 1.5kW motors operating on single-phase 220V power. This model is ideal for small to mid-sized applications requiring efficient, reliable speed control of AC motors. Easy to install and maintain, it’s suitable for general industrial and commercial use.

Key Features

• Power Rating: 1.5kW (2 HP)

• Input Voltage: Single-phase 200–240V AC

• Output Voltage: 3-phase 200–240V

• Frequency Range: 0.2 to 400 Hz

• Control Modes: V/F and Slip Compensation Control

• Compact Size: Saves panel space

• Integrated Functions: PID control, energy-saving functions

• User Interface: Digital operator panel with LED display

• Built-In Safety: Overload, overvoltage, and undervoltage protection

Technical Specifications

• Model Number: FR-D720S-1.5K-CHT

• Motor Output: 1.5kW (2 HP)

• Input Phase: Single-phase

• Output Phase: 3-phase

• Output Frequency: 0.2–400 Hz

• Dimensions: Approx. 150 × 100 × 140 mm

• Weight: ≈ 1.2 kg

• Cooling Method: Forced air cooling

• Operating Temp: -10 °C to 50 °C

• Certifications: CE, UL, RoHS

Applications

• Small conveyors and pumps

• Fans, blowers, and mixers

• HVAC systems

• Industrial and commercial automation

• Energy-efficient motor control solutions

Why Choose the FR-D720S-1.5K-CHT

• Reliable Performance: Proven Mitsubishi VFD technology

• Space-Saving Design: Compact for tight enclosures

• Ease of Use: Simple programming and quick startup

• Built-In Features: PID, braking, and safety monitoring

• Cost-Effective Control: Ideal for single-phase motor applications

Order Now

The Mitsubishi FR-D720S-1.5K-CHT inverter is in stock and ships worldwide.

Discover more options in the Mitsubishi FR Series Frequency Inverters (FREQROL category, designed for precision motor control, energy efficiency, and industrial automation.

For additional solutions, explore the full range of Mitsubishi products.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
