Mitsubishi FR-A7NC

Mitsubishi FR-A7NC

Overview

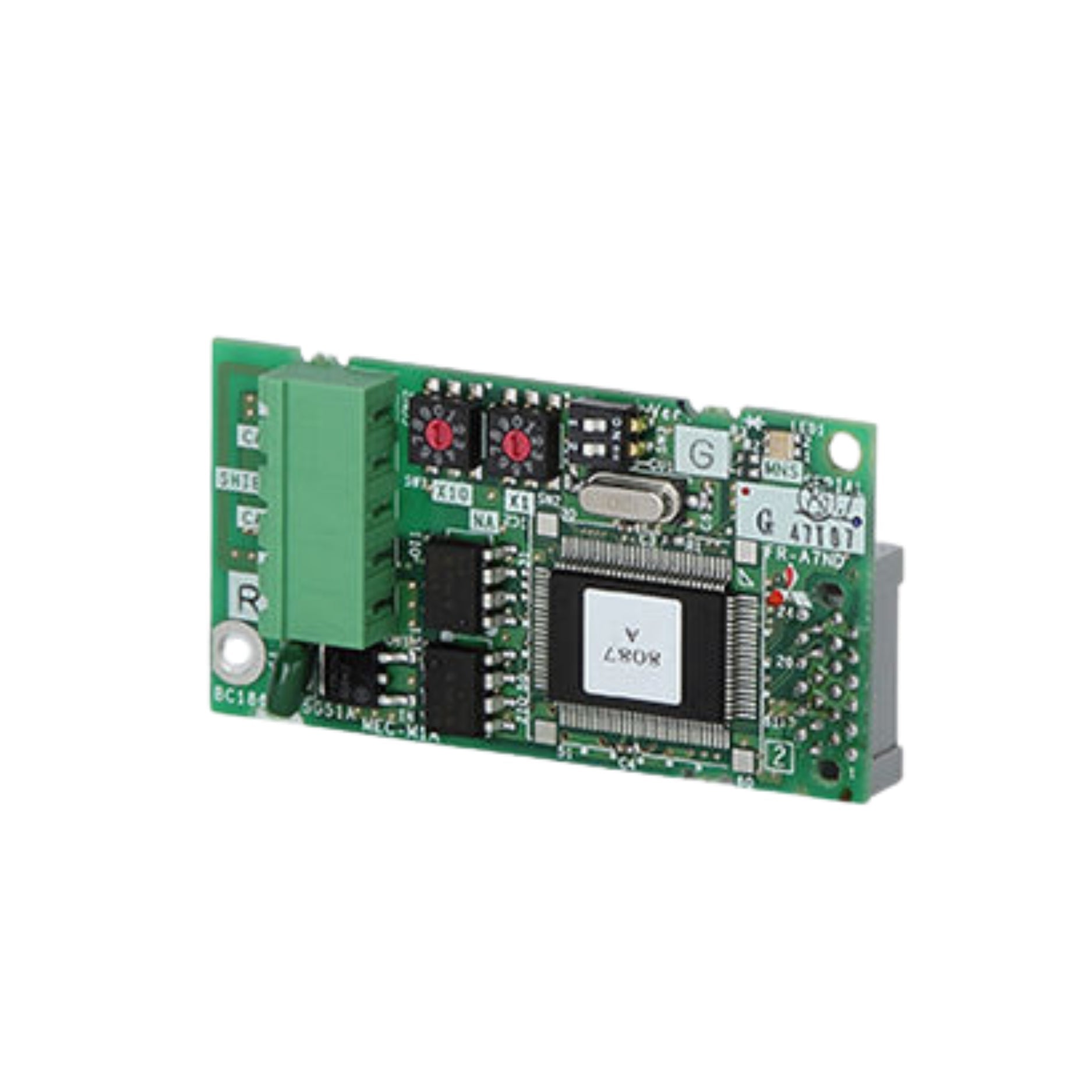

The Mitsubishi FR-A7NC is a CC-Link communication option card designed for the FR-A700 series variable frequency drives (VFDs). It enables seamless integration with CC-Link networks, allowing remote control, diagnostics, and monitoring of the drive from a master controller or PLC.

Key Features

• Compatible Series: FR-A700

• Network Type: CC-Link (Control & Communication Link)

• Connection Method: RJ-45 or screw terminal

• Mounting: DIN rail or drive-mounted

• Address Setting: Rotary switch (1–64 nodes)

• Diagnostics: Network error, node status, and communication monitoring

• Data Transmission: Cyclic and transient

• Response Time: ≤ 1.5 ms (standard CC-Link network)

• Power Supply: Supplied from inverter

Technical Specifications

• Catalog Number: FR-A7NC

• Communication Protocol: CC-Link Ver. 1.10

• Transmission Speed: Up to 10 Mbps

• Maximum Stations: 64

• Mounting Style: Plug-in (inverter) or DIN rail

• Ambient Temperature: 0°C to 55°C

• Protection Class: IP00

• Dimensions: Approx. 90 x 80 x 40 mm

• Weight: ≈ 0.15 kg

• Certifications: CE, UL, RoHS

Applications

• Remote drive control in automated lines

• Multi-axis motor control over CC-Link

• Factory and process automation

• Distributed systems with FR-A700 VFDs

• Network-based energy management

Why Choose the FR-A7NC

• Seamless Integration: Connects FR-A700 drives directly to CC-Link

• Remote Diagnostics: Monitor performance and detect errors remotely

• Fast Response: Supports high-speed data transmission

• Easy Setup: Rotary switch addressing and simple wiring

• Proven Compatibility: Designed specifically for Mitsubishi drives

Order Now

The Mitsubishi FR-A7NC CC-Link communication card is available and ships worldwide.
