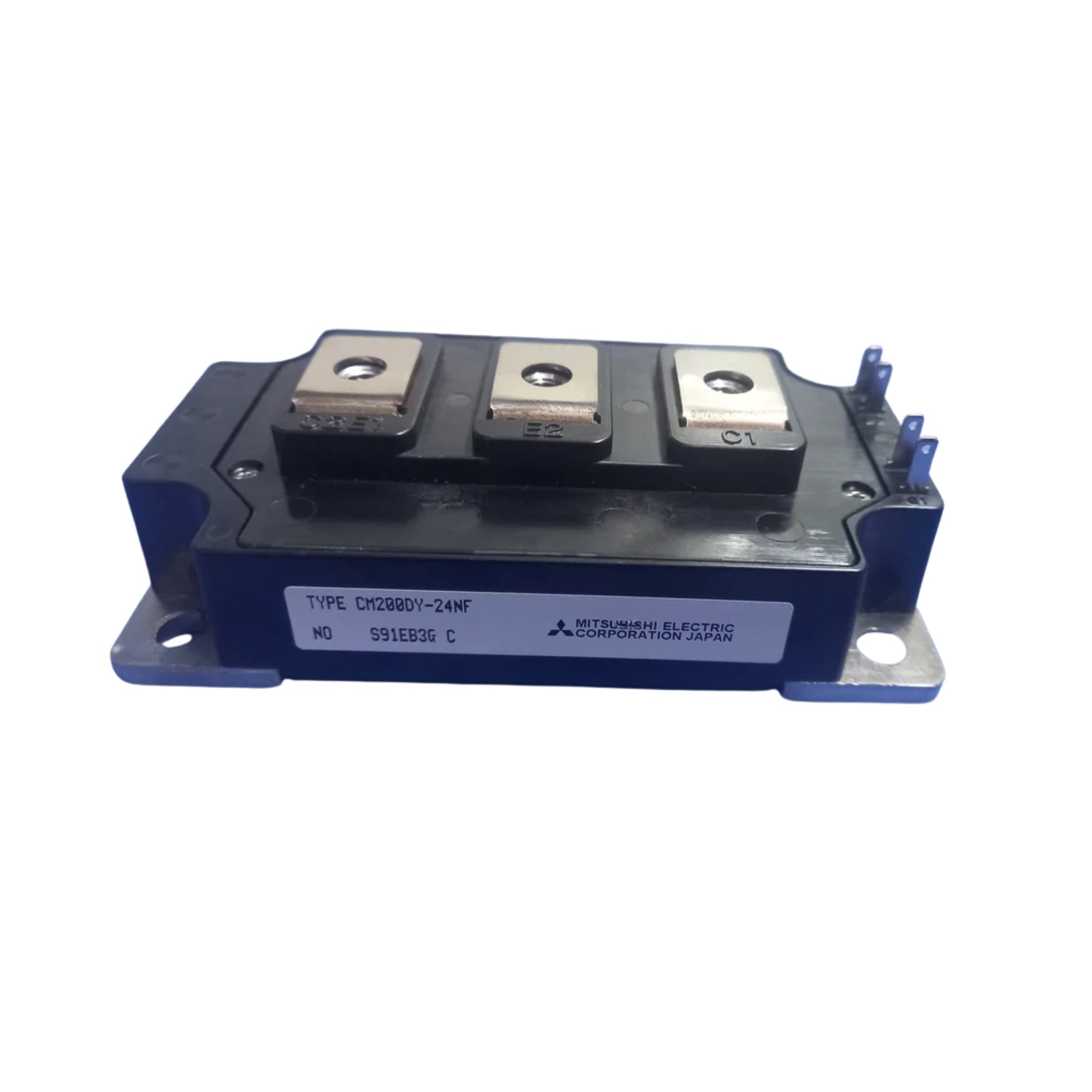

Mitsubishi CM200DY-24NF

Mitsubishi CM200DY-24NF

Overview

The Mitsubishi CM200DY-24NF is a high-performance IGBT power module featuring a dual transistor configuration. Rated at 200 A and 1200 V, it offers low conduction losses and high-speed switching. Built with an insulated baseplate and rugged module housing, it is ideal for industrial motor drives, UPS, and power control systems.

Key Features

• Dual IGBT configuration

• Rated current: 200 A

• Collector-emitter voltage: 1200 V

• Trench-gate structure for low VCE(sat)

• Built-in fast-recovery free-wheeling diodes

• Insulated base for efficient thermal transfer

• Compact and robust chassis mount design

• Ideal for inverter and power conversion systems

Technical Specifications

• Part Number: CM200DY-24NF

• Configuration: Dual IGBT with free-wheeling diodes

• Collector Current: 200 A (continuous)

• Collector-Emitter Voltage: 1200 V

• VCE(sat): Approx. 2.1–2.2 V at rated current

• Gate-Emitter Voltage: ±20 V

• Thermal Resistance (Junction-Case): ~0.18 °C/W

• Switching Characteristics: Fast rise and fall times

• Mounting Type: Chassis mount (isolated base)

• Operating Temperature: –40 °C to +150 °C

• Package: Power module

• Weight: Approx. 300 g

Applications

• Industrial motor drives and servo systems

• Uninterruptible power supplies (UPS)

• Renewable energy inverters

• High-power converters

• Electric welding and automation equipment

Why Choose the CM200DY-24NF

• Combines high current handling with 1200 V voltage capability

• Trench-gate IGBT design improves switching efficiency

• Robust and compact chassis mount structure

• Ideal for medium to high-power industrial applications

• Backed by Mitsubishi’s industrial reliability

Order Now

The Mitsubishi CM200DY-24NF IGBT module is available and ships worldwide.
