Overview

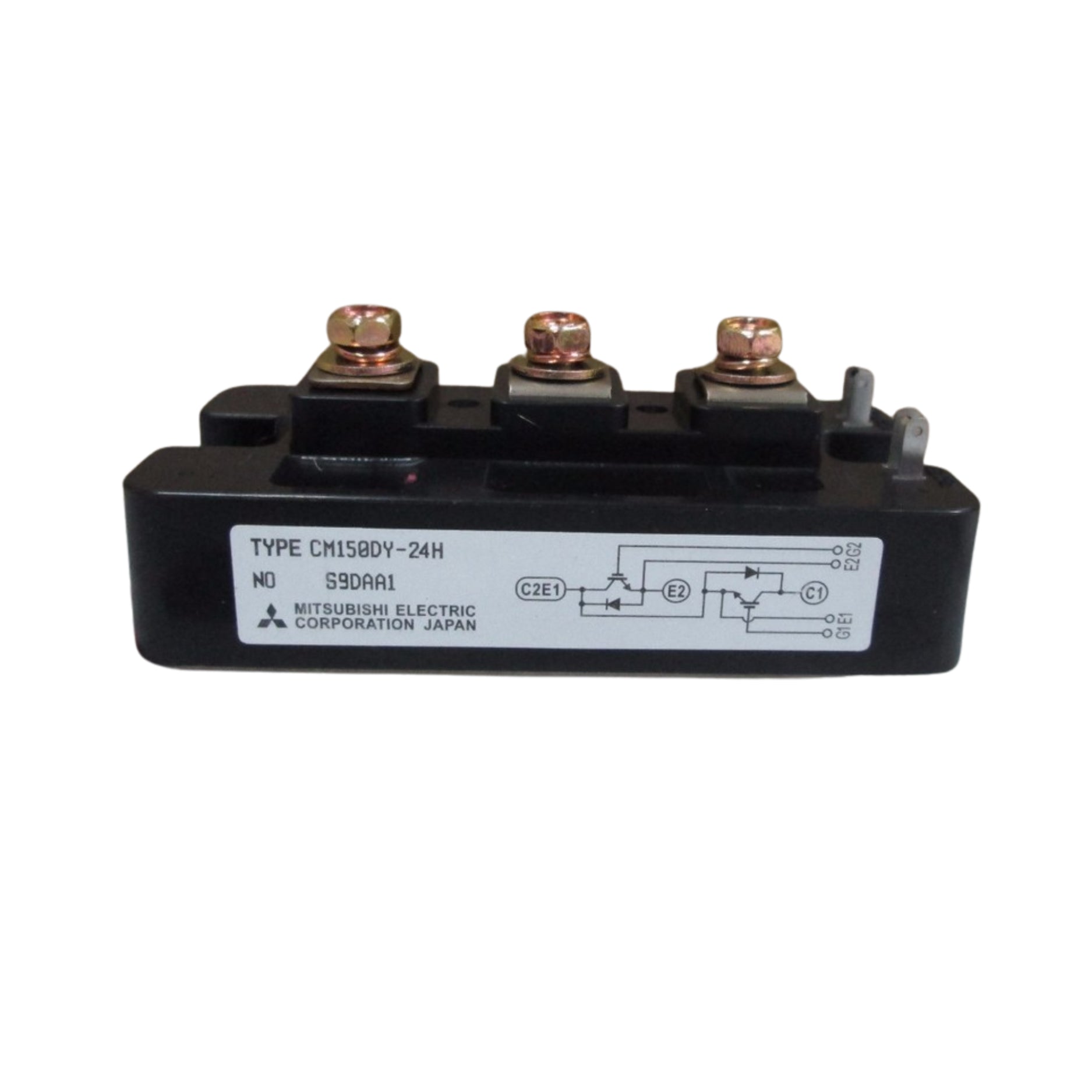

The CM150DY-24H is a compact dual-IGBT module designed for medium-power industrial applications. It features trench-gate IGBT technology and integrated fast-recovery diodes in a chassis-mount package with an insulated baseplate. With a 150 A current rating and 1200 V voltage capability, it's ideal for inverters, motor drives, and power conversion systems.

Key Features

• Dual IGBTs with integrated free-wheeling diodes

• Rated current: 150 A continuous

• Voltage rating: 1200 V

• Low saturation voltage thanks to trench-gate design

• Isolated baseplate for simplified heat-sinking

• Chassis-mount package for secure installation

• Efficient high-speed switching

• Industrial-grade reliability

Technical Specifications

• Model: CM150DY-24H

• Configuration: Dual IGBT + dual diode

• Collector Current (Ic): 150 A (continuous)

• Collector–Emitter Voltage (Vces): 1200 V

• Power Dissipation: ~650 W (Tc = 25 °C)

• VCE(sat): ≈2.1 V @ 150 A

• Gate–Emitter Voltage (VGE): ±20 V max

• Input Capacitance (Cies): ~100 nF

• Thermal Resistance (Rth(j‑c)): Approx. 0.25 °C/W

• Operating Temperature: –40 °C to +150 °C (Junction)

• Mounting: Chassis (M5/M6 hardware) with insulated base

• Weight: ~250 g

Applications

• Medium-power inverters and motor drives

• Uninterruptible power supplies (UPS)

• Power conversion systems

• Renewable energy inverters

• Automation and robotics equipment requiring rugged power modules

Why Choose the CM150DY-24H

• Combines efficient dual-IGBT switching in a compact module

• High durability with industrial-grade chassis design

• Low-loss trench-gate structure for energy-efficient performance

• Easy integration via insulated baseplate

• Mitsubushi-engineered quality for reliability in harsh environments

Order Now

The Mitsubishi CM150DY-24H IGBT module is available and ships worldwide.
