Mitsubishi CM150DY‑12H

Mitsubishi CM150DY‑12H

Overview

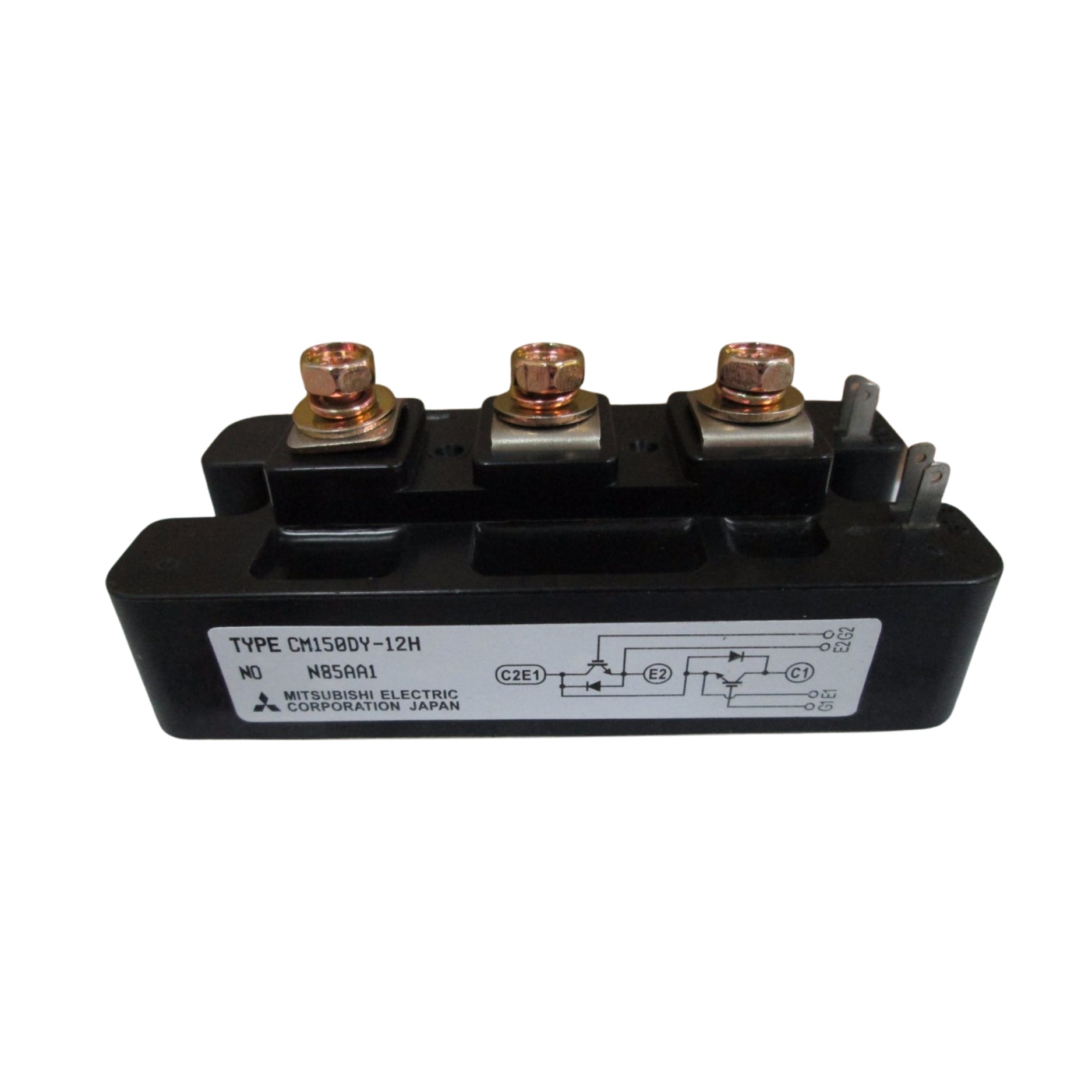

The Mitsubishi CM150DY‑12H is a dual IGBT module rated for 150 A and 600 V, engineered for medium-power switching applications. Featuring trench-gate IGBT technology and integrated fast-recovery diodes, this chassis-mount module offers efficient operation, reliable thermal performance, and easy integration into industrial inverters and motor control systems.

Key Features

• Dual IGBT configuration in half-bridge topology

• Rated for 150 A at 600 V

• Trench-gate IGBT technology for efficient switching

• Integrated free-wheeling diodes

• Low VCE(sat) for reduced conduction losses

• Insulated baseplate for simplified heat dissipation

• Fast switching performance for inverter-grade response

• Rugged industrial-grade construction

Technical Specifications

• Part Number: CM150DY‑12H

• Configuration: Dual IGBT with diodes

• Collector Current: 150 A continuous

• Collector-Emitter Voltage: 600 V

• VCE(sat): Approx. 2.2 V @ 150 A

• Gate-Emitter Voltage: ±20 V

• Switching Speed: Fast turn-on and turn-off

• Mounting: Chassis (bolt-on) with insulated base

• Thermal Resistance (Junction-Case): Approx. 0.25 °C/W

• Operating Temperature: –40 °C to +150 °C

• Package Type: Module

• Weight: Approx. 250 g

Applications

• AC motor drives

• Power inverters

• Uninterruptible power supplies (UPS)

• Renewable energy systems

• Industrial automation equipment

Why Choose the CM150DY‑12H

• Reliable 600 V operation in a compact dual-IGBT module

• High current capacity with low conduction loss

• Fast switching for efficient power conversion

• Designed for secure mounting and effective heat management

• Mitsubishi quality ensures long-term performance

Order Now

The Mitsubishi CM150DY‑12H IGBT module is available and ships worldwide.

This product is part of our Mitsubishi IGBT Modules collection, designed for high-efficiency power conversion and reliable performance in industrial automation. Browse the complete range of Mitsubishi IGBT Modules.

Return to the Mitsubishi Main Category for more Mitsubishi automation solutions.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
