Mean Well APC-35-700

Mean Well APC-35-700

Overview

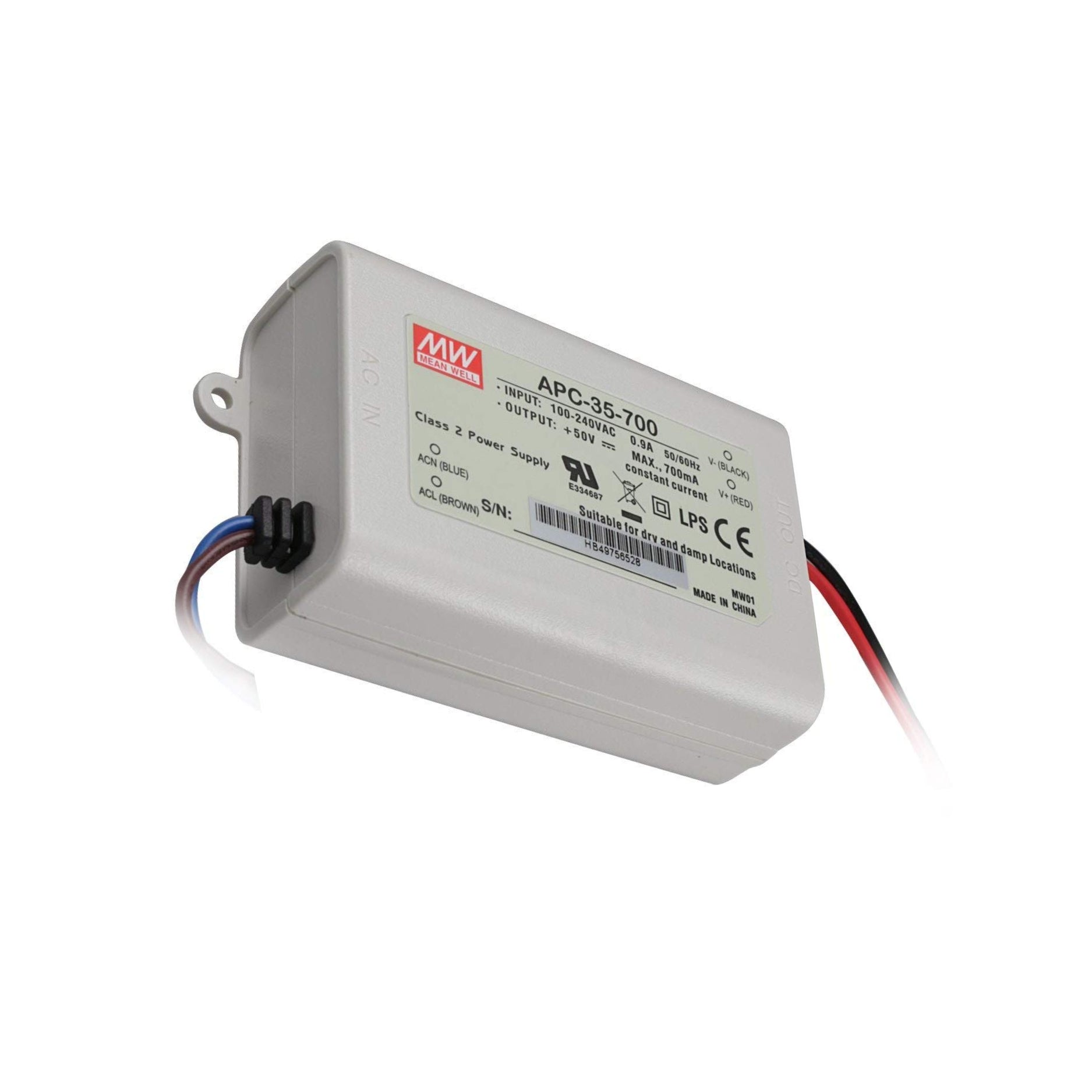

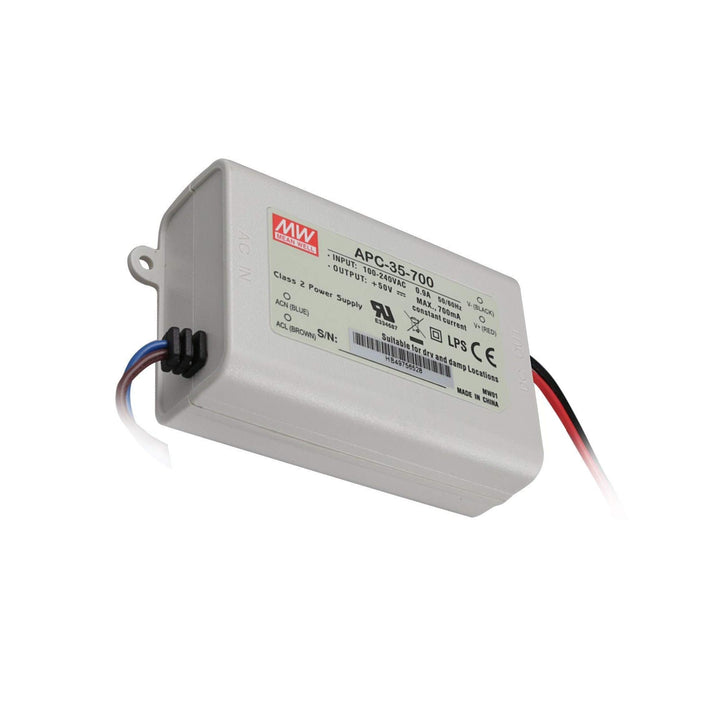

The Mean Well APC-35-700 is a 35 W constant current LED driver designed for efficient and reliable LED lighting applications. Delivering 700 mA output current, it ensures consistent performance and long-lasting illumination in residential, commercial, and industrial environments.

Key Features

• 35 W constant current output

• 700 mA rated output current

• Universal AC input: 90–264 V AC

• High efficiency up to 84%

• Compact plastic case design

• Protections: short-circuit, overload, overvoltage

• Class II power unit (no FG)

• Cooling by free air convection

Technical Specifications

• Manufacturer Code: APC-35-700

• Series: APC series

• Output Current: 700 mA

• Output Power: 35 W

• Output Voltage Range: 27–48 V DC

• Input Voltage: 90–264 V AC

• Efficiency: Up to 84%

• Cooling Method: Free air convection

• Mounting: Chassis mounting

• Operating Temperature: –30 °C to +70 °C (derating above +50 °C)

• Protection: SCP, OVP, OLP

• Certifications: CE, UL, RoHS

Applications

• Indoor and outdoor LED lighting

• LED strips and fixtures

• Commercial lighting systems

• Residential illumination

• Energy-efficient lighting projects

Why Choose Mean Well APC-35-700?

• Reliable constant current performance for LEDs

• Compact and lightweight design

• Wide input range for global use

• High efficiency with built-in protections

Order Now

Choose the Mean Well APC-35-700 LED driver for your next LED lighting project — efficient, reliable, and built for long-lasting illumination.
