Leuze SLE46C‑40.K2/4P‑M12

Leuze SLE46C‑40.K2/4P‑M12 | Safety Light Beam Receiver | 40 m Range | Type 2 | M12 Connector

Overview

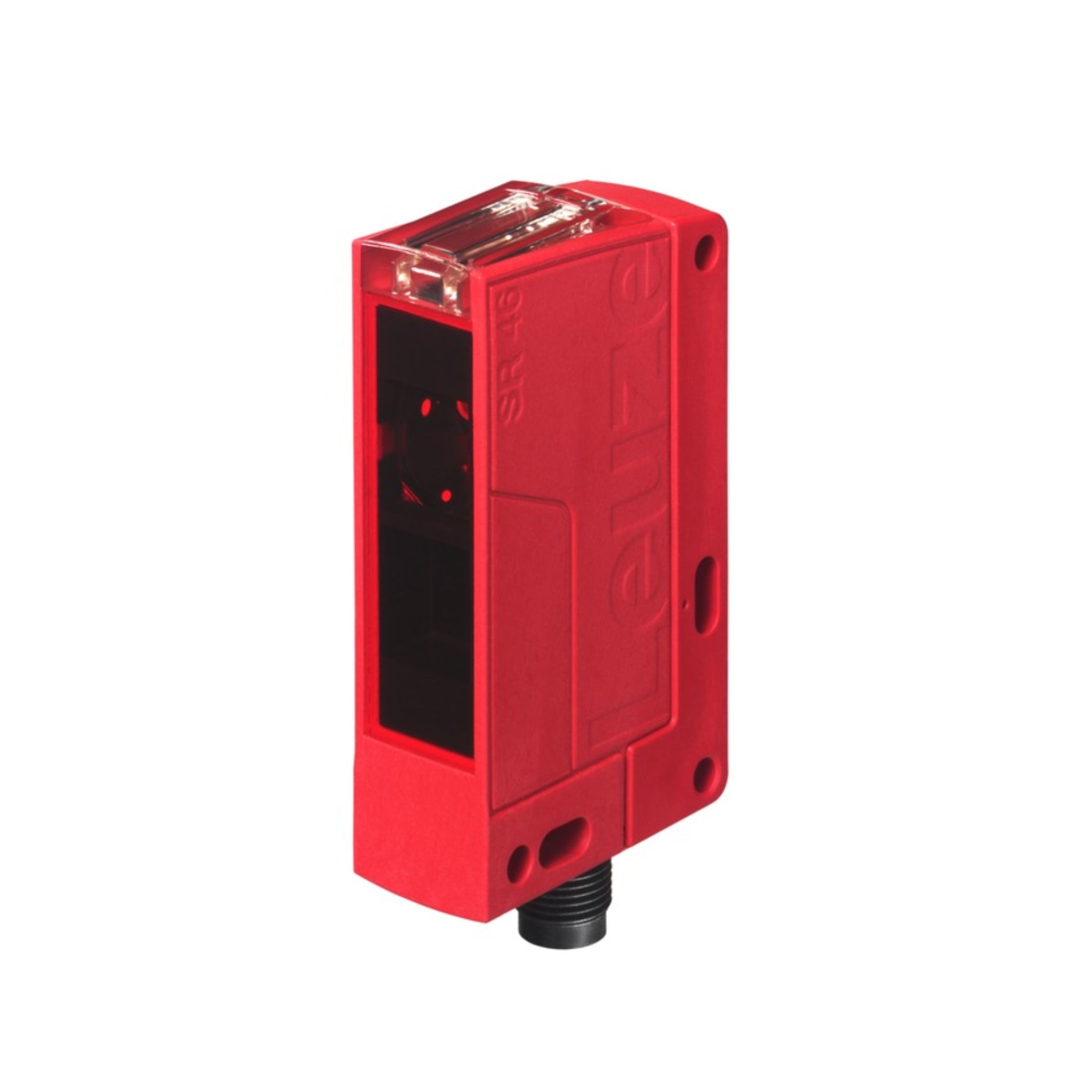

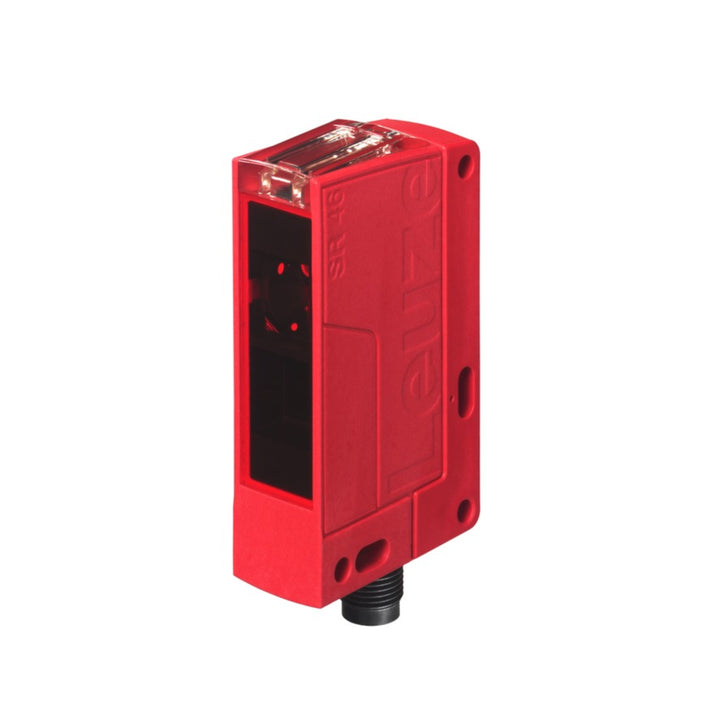

The Leuze SLE46C‑40.K2/4P‑M12 is a Type 2 single-beam safety light device receiver for monitoring hazardous areas in industrial environments. It works in conjunction with a matching transmitter to detect the interruption of the safety beam over distances up to 40 m. With a compact, IP67-rated housing and M12 connector, this safety receiver offers reliable personnel protection in compliance with EN/IEC 61496-1 Type 2 standards.

Key Features

• Operating range: Up to 40 m (with compatible transmitter)

• Designed for use in safety light beam systems (receiver unit)

• Safety Category: Type 2 (EN/IEC 61496-1)

• Output type: PNP, safety switching

• Compact rectangular housing with integrated optics

• M12, 4-pin connector for fast and secure wiring

• High immunity to ambient light

• LED indicators for alignment and diagnostics

• IP67 protection for industrial environments

Technical Specifications

• Catalog Number: 50121917

• Function: Single-beam safety light receiver

• Operating Range: Up to 40 m

• Output Type: PNP (safety switching output)

• Safety Category: Type 2 (IEC/EN 61496-1)

• Supply Voltage: 24 V DC (±20%)

• Electrical Connection: M12, 4-pin connector

• Protection Class: IP67

• Housing Material: Plastic

• Operating Temperature: –10 °C to +55 °C

• Storage Temperature: –25 °C to +70 °C

• Dimensions: Approx. 55 × 18 × 35 mm

• Weight: Approx. 50 g

Applications

• Access guarding for machines and robotic cells

• Perimeter protection in industrial automation

• Single-point safety beam interruption detection

• Personnel safety near hazardous zones

• Cost-effective safety solutions requiring Type 2 compliance

Why Choose SLE46C‑40.K2/4P‑M12

• Compact and robust design for easy integration

• Reliable long-range detection up to 40 m

• Designed to meet EN/IEC safety regulations

• Fast and secure wiring with M12 connector

• Excellent ambient light suppression for reliable operation

Order Now

The Leuze SLE46C‑40.K2/4P‑M12 safety light beam receiver (Part no. 50121917) is available and ships worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
