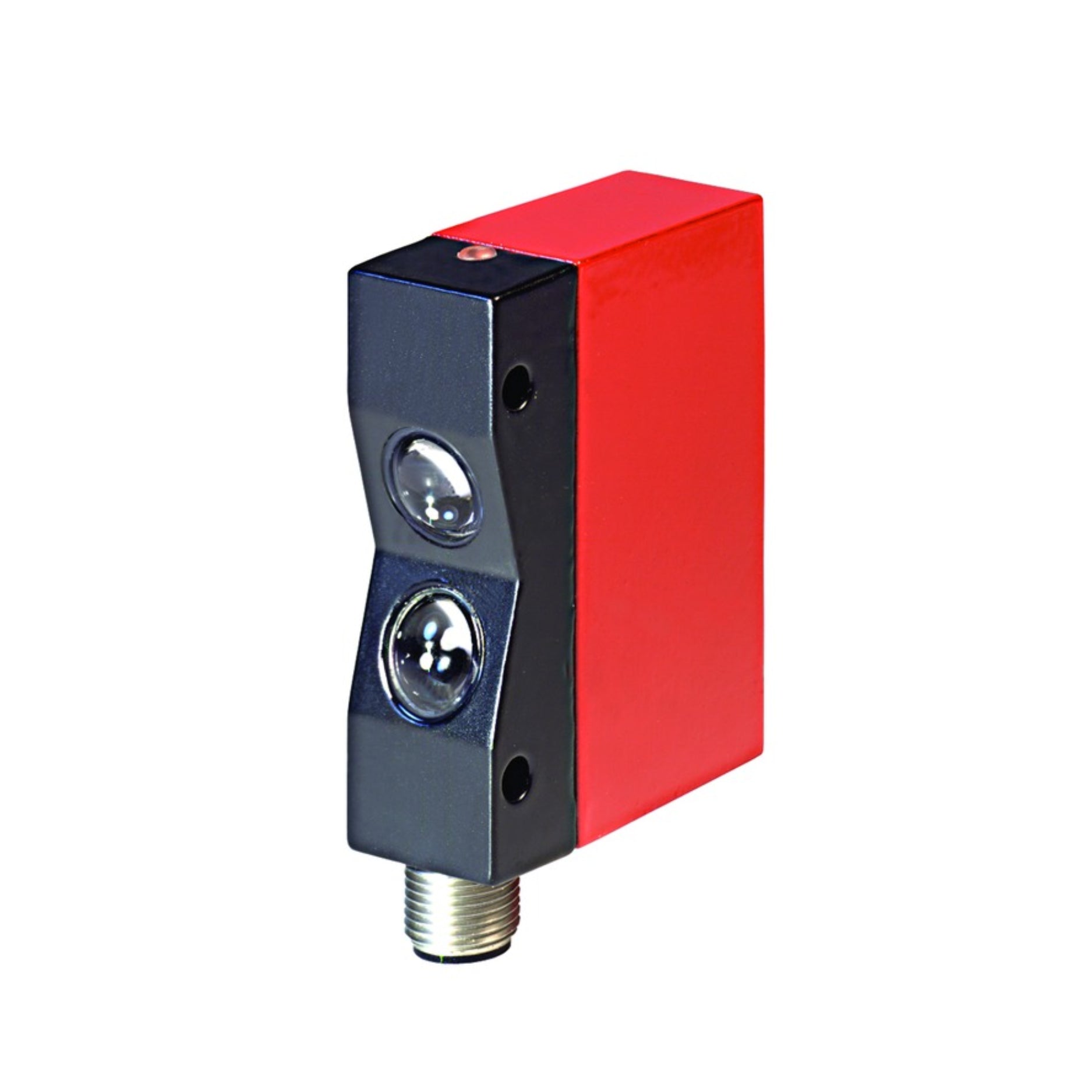

Leuze RK 93/4‑60 L

Leuze RK 93/4‑60 L | Energetic Diffuse Sensor | 60 mm Range | Red Light | Terminal Connection | Side View

Overview

The Leuze RK 93/4‑60 L is a compact energetic diffuse sensor with a 60 mm sensing range and side-view optics. It uses red LED light to detect objects directly via reflection and offers reliable switching performance. Featuring a terminal connection interface and rugged IP67-rated housing, it is ideal for tight spaces and short-range detection in industrial environments.

Key Features

• Sensing range: Up to 60 mm

• Energetic diffuse reflection sensing principle

• Red LED for visible targeting

• PNP switching output (normally open)

• Side-view optics for lateral object detection

• Terminal connection for robust installation

• High protection rating: IP67

• Compact housing suitable for space-constrained setups

Technical Specifications

• Catalog Number: 50022192

• Operating Principle: Energetic diffuse sensor

• Sensing Range: 10 mm to 60 mm

• Light Source: Red LED

• Output Type: PNP, NO

• Connection Type: Terminal block

• Supply Voltage: 10–30 V DC

• Response Time: <1 ms

• Housing Style: Rectangular with side optics

• Housing Material: Plastic

• Protection Class: IP67

• Operating Temperature: –25 °C to +60 °C

• Storage Temperature: –40 °C to +70 °C

• Dimensions: Approx. 50 × 18 × 40 mm

• Weight: Approx. 45 g

Applications

• Close-range object detection in assembly and automation

• Detection in confined or side-access mounting areas

• Material presence sensing in packaging lines

• OEM machinery requiring lateral sensing solutions

• Compact industrial systems needing short-range sensors

Why Choose RK 93/4‑60 L

• Reliable short-range detection in tight installations

• Side-view optics for flexible mounting positions

• Durable design for industrial environments

• Easy wiring via terminal connection

• Consistent performance with visible red LED targeting

Order Now

The Leuze RK 93/4‑60 L energetic diffuse sensor (Part no. 50022192) is available and ships worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
