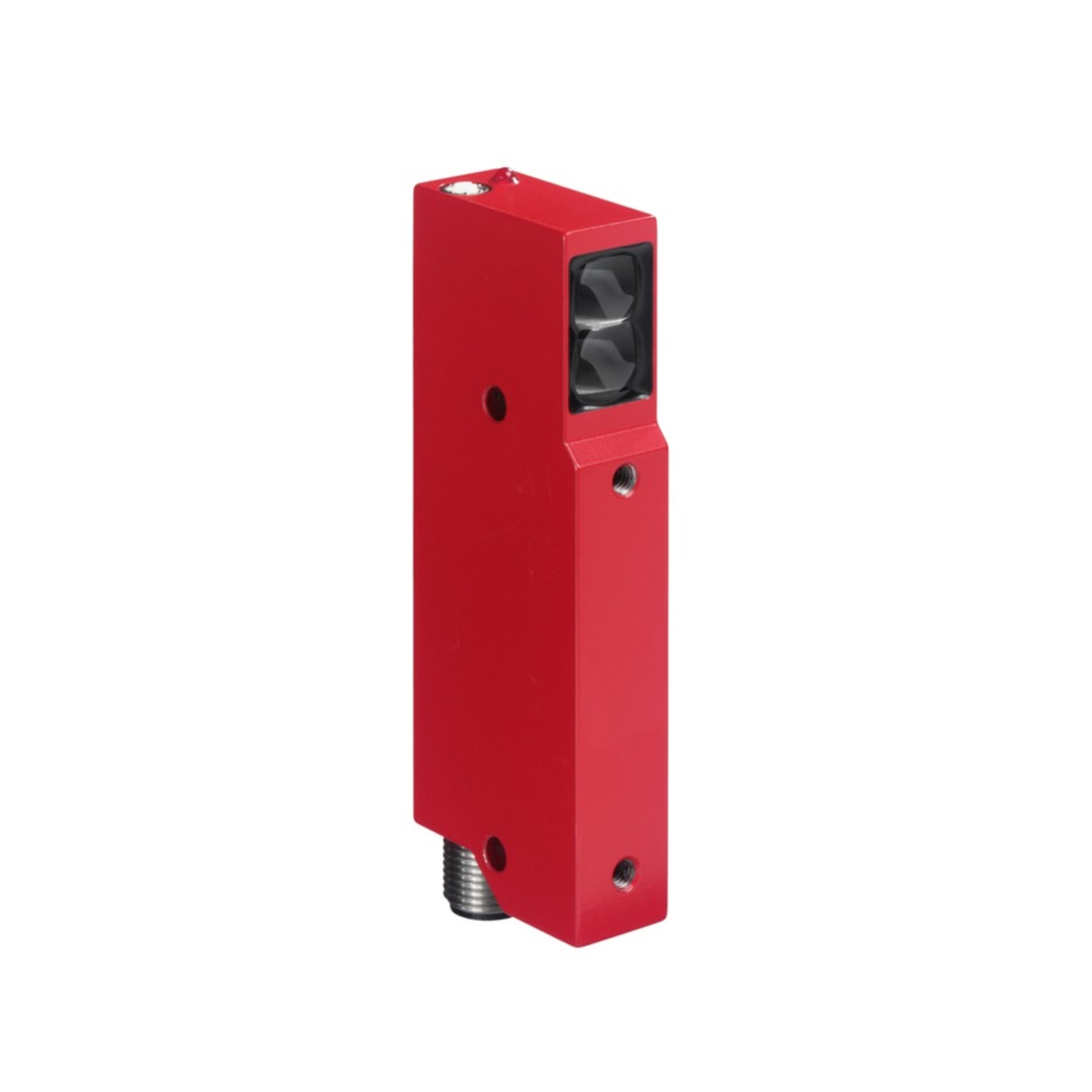

Leuze RK 72/4‑200

Leuze RK 72/4‑200 | Energetic Diffuse Sensor | 200 mm Range | Red Light | Cable Connection

Overview

The Leuze RK 72/4‑200 is a compact energetic diffuse sensor designed for close-range object detection up to 200 mm. Using red LED light and featuring a fixed 2 m cable, this sensor offers reliable and straightforward integration into industrial automation systems. Its IP67 protection and fast switching capabilities make it ideal for environments requiring dependable presence detection.

Key Features

• Sensing range: Up to 200 mm

• Energetic diffuse sensing with visible red LED

• PNP switching output (normally open)

• Fixed 2 m cable for easy installation (S8 connection)

• LED indicators for status and alignment

• Compact rectangular housing

• IP67 protection for industrial environments

Technical Specifications

• Catalog Number: 50000420

• Operating Principle: Energetic diffuse reflection

• Sensing Range: 10 mm to 200 mm

• Light Source: Red LED

• Output Type: PNP, NO

• Connection: 2 m fixed cable

• Supply Voltage: 10–30 V DC

• Response Time: <1 ms

• Housing Material: Plastic

• Protection Class: IP67

• Operating Temperature: –25 °C to +60 °C

• Storage Temperature: –40 °C to +70 °C

• Dimensions: Approx. 50 × 18 × 40 mm

• Weight: Approx. 40 g

Applications

• Short-range object detection

• Presence monitoring in packaging systems

• Small-part detection on assembly lines

• Conveyor and sensor-triggered sorting

• OEM automation with space constraints

Why Choose RK 72/4‑200

• Compact design with solid sensing performance

• Easy installation with pre-attached 2 m cable

• Ideal for fast-paced and compact automation systems

• Reliable object detection with standard red LED

• Built for industrial environments with IP67 protection

Order Now

The Leuze RK 72/4‑200 diffuse sensor (Part no. 50000420) is available and ships worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
