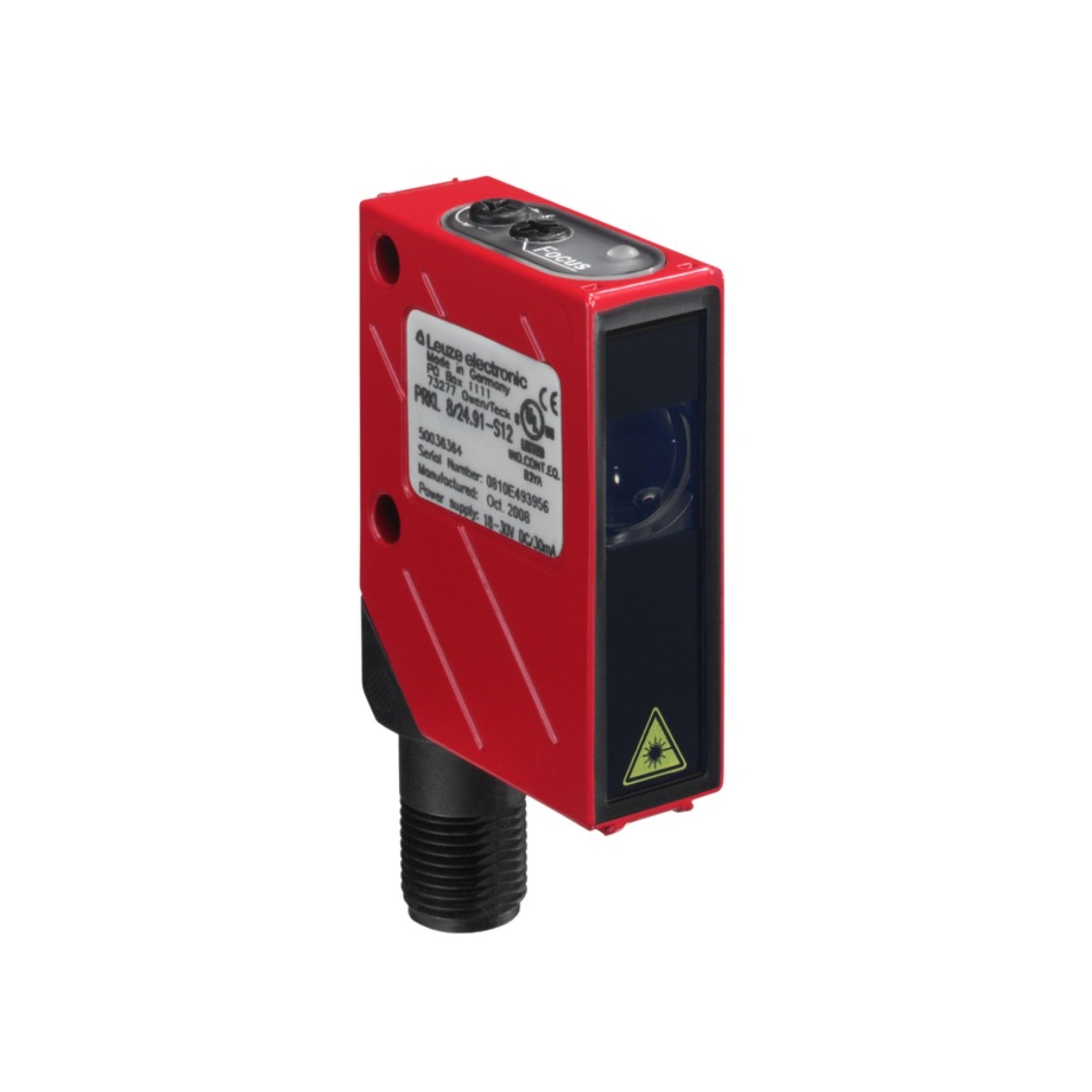

Leuze PRKL 8/24.91‑S12

Leuze PRKL 8/24.91‑S12 | Retro-Reflective Photoelectric Sensor | 0.1–8 m | Polarized Red Light | M12 Connector

Overview

The Leuze PRKL 8/24.91‑S12 is a polarized retro-reflective photoelectric sensor designed for mid-range object detection in industrial environments. With a detection range of up to 8 m and polarization filtering, it provides reliable detection even on shiny surfaces. Its compact housing, PNP switching output, and M12 connector ensure fast integration and high performance in demanding automation systems.

Key Features

• Sensing range: 0.1 m to 8 m (with reflector)

• Polarized red LED for suppression of false triggers

• PNP switching output (normally open)

• M12, 4-pin connector for fast electrical connection

• Compact rectangular design for easy installation

• Bright LED indicators for alignment and status feedback

• IP67-rated for industrial protection

Technical Specifications

• Catalog Number: 50036364

• Operating Principle: Polarized retro-reflective

• Light Source: Red LED

• Sensing Range: 100 mm to 8,000 mm

• Output Type: PNP, NO

• Electrical Connection: M12, 4-pin connector

• Supply Voltage: 10–30 V DC

• Response Time: <1 ms

• Housing Material: Plastic

• Protection Class: IP67

• Operating Temperature: –25 °C to +55 °C

• Storage Temperature: –40 °C to +70 °C

• Dimensions: Approx. 50 × 18 × 40 mm

• Weight: Approx. 40 g

Applications

• Conveyor and material flow monitoring

• Automated warehouse and logistics systems

• Packaging and labeling machines

• Reflective object detection in industrial automation

• OEM applications requiring a compact sensor with mid-range detection

Why Choose PRKL 8/24.91‑S12

• Reliable object detection up to 8 m

• Compact form factor with rugged IP67 protection

• Quick setup and easy wiring via M12 connector

• Effective in reflective and dynamic environments

• Ideal for a wide range of industrial automation tasks

Order Now

The Leuze PRKL 8/24.91‑S12 photoelectric sensor (Part no. 50036364) is available and ships worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
