Leuze PRKL 3B/6.22‑S8

Leuze PRKL 3B/6.22‑S8 | Retro-Reflective Photoelectric Sensor | 0.1–3 m | Polarized Red Light | Cable Output | IP67

Overview

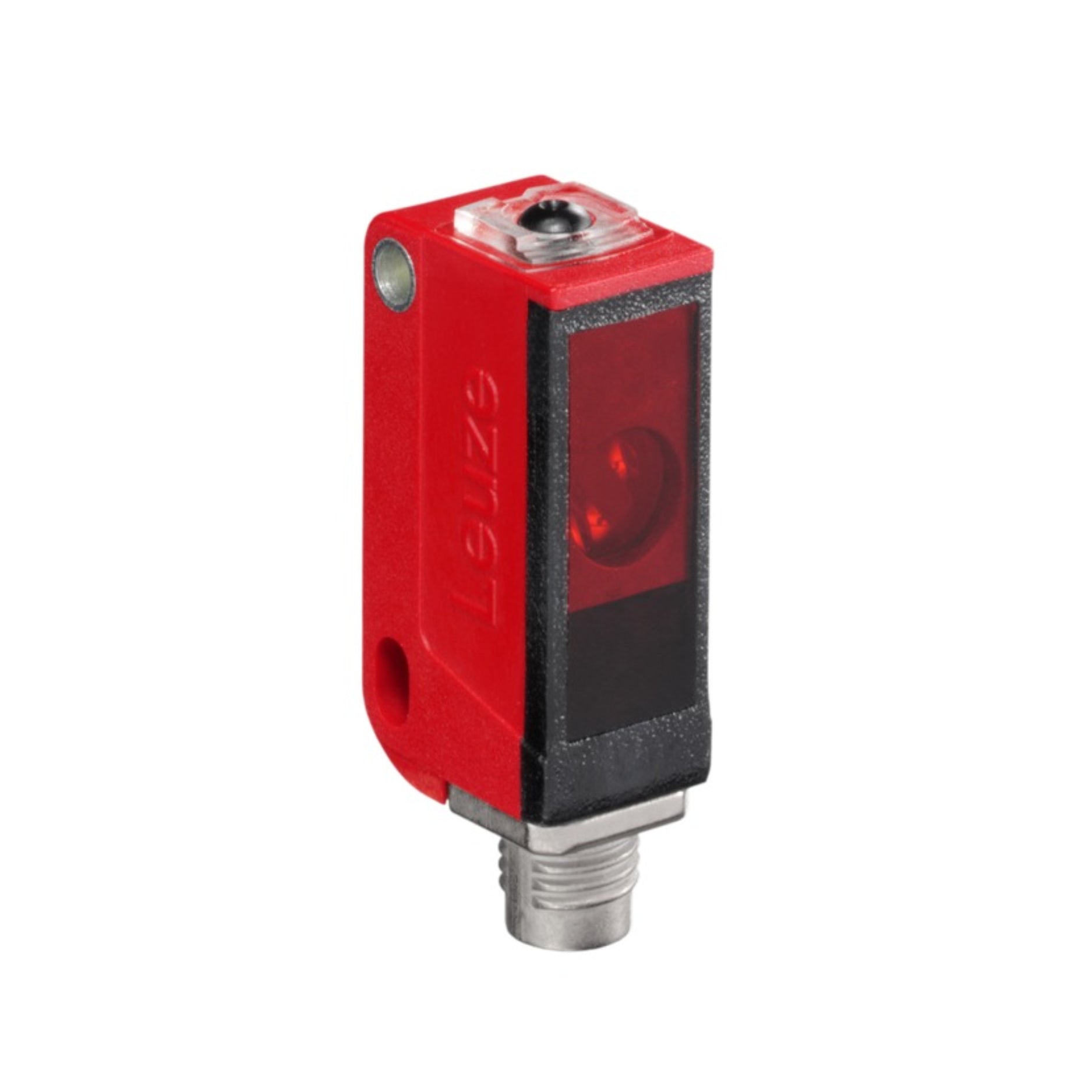

The Leuze PRKL 3B/6.22‑S8 is a compact polarized retro-reflective photoelectric sensor with a 3 m sensing range and fixed 2 m cable (S8 version). Designed for reliable object detection even on reflective surfaces, it features a red LED light source with polarization filtering. Its compact, IP67-rated housing ensures durable performance in industrial automation and machine integration applications.

Key Features

• Sensing range: 0.1 m to 3 m (with reflector)

• Polarized red LED for reliable detection of shiny or reflective objects

• Output type: PNP, normally open (NO)

• Electrical connection: 2 m fixed cable (S8)

• High switching frequency and fast response time

• Compact rectangular housing for tight spaces

• IP67 protection for industrial and dusty environments

• Bright LED indicators for operational feedback

Technical Specifications

• Catalog Number: 50104706

• Operating Principle: Polarized retro-reflective

• Sensing Range: 100 mm to 3,000 mm

• Light Source: Red LED

• Output Type: PNP, NO

• Connection Type: 2 m cable

• Supply Voltage: 10–30 V DC

• Response Time: <1 ms

• Housing Material: Plastic

• Protection Class: IP67

• Operating Temperature: –25 °C to +55 °C

• Storage Temperature: –40 °C to +70 °C

• Dimensions: Approx. 30 × 16 × 12 mm

• Weight: Approx. 25 g

Applications

• Compact machinery and small-scale automation

• Packaging and material handling lines

• Presence detection in conveyors and feeders

• Robotics and pick-and-place systems

• OEM applications requiring pre-wired sensors

Why Choose PRKL 3B/6.22‑S8

• Reliable detection of reflective surfaces up to 3 m

• Space-saving design with durable IP67 enclosure

• Easy wiring via 2 m pre-attached cable

• Fast response time for high-speed systems

• Ideal for OEM and integration in compact equipment

Order Now

The Leuze PRKL 3B/6.22‑S8 photoelectric sensor (Part no. 50104706) is available and ships worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
