Leuze PRK5/4P‑M8

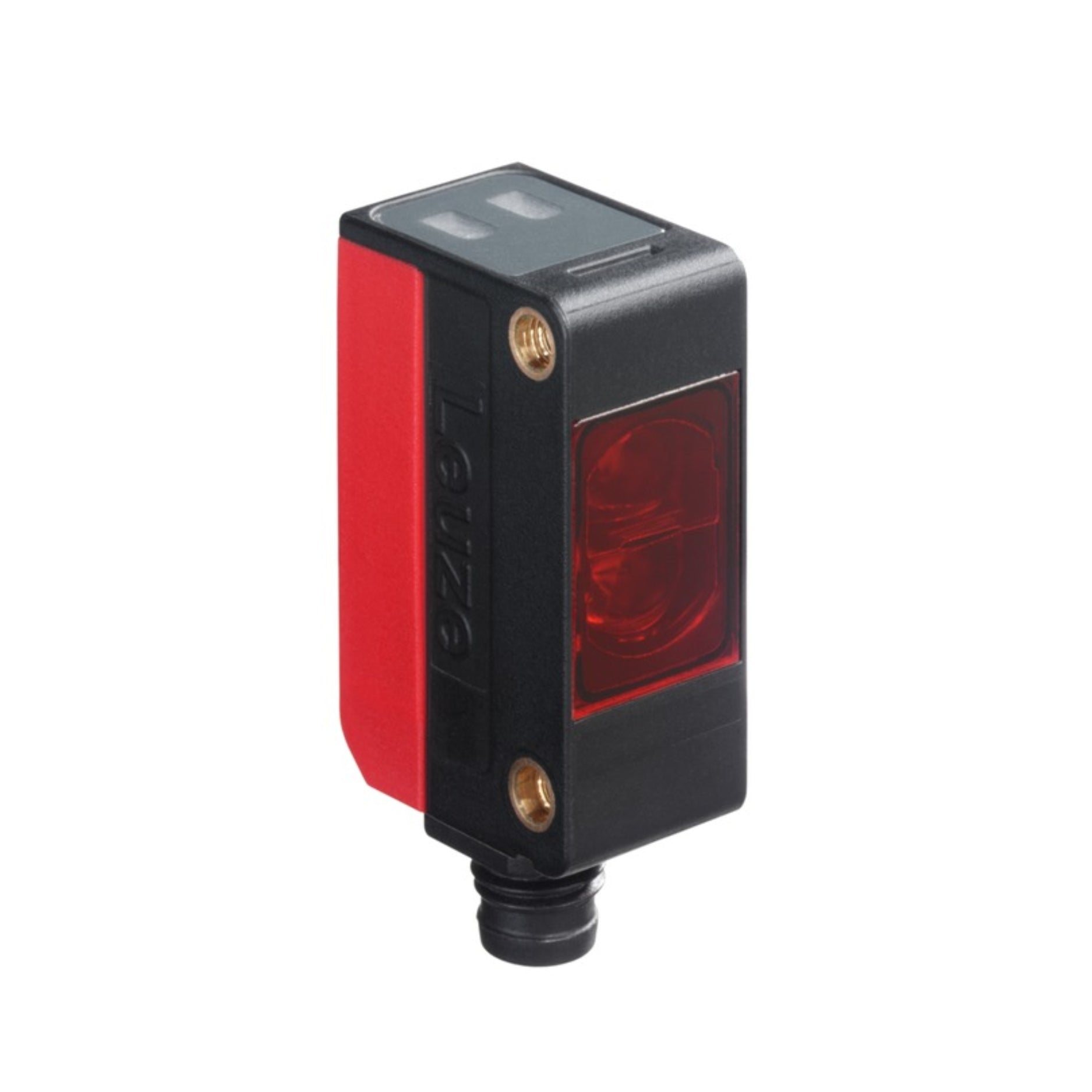

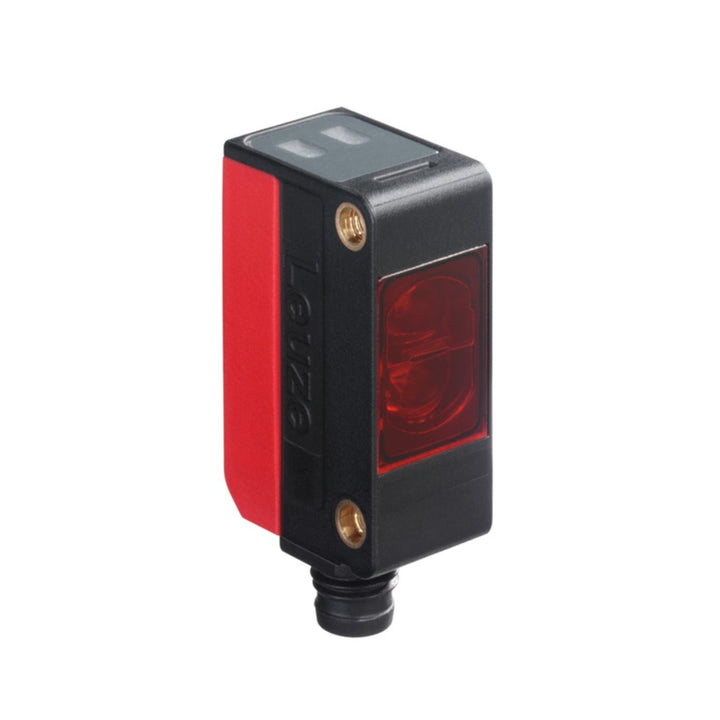

Leuze PRK5/4P‑M8 | Retro-Reflective Photoelectric Sensor | 0.1–2 m | Polarized Red Light | M8 Connector

Overview

The Leuze PRK5/4P‑M8 is a compact polarized retro-reflective photoelectric sensor with a 2 m sensing range, ideal for applications requiring precise detection in tight spaces. It features a red LED with polarization filtering to reliably detect reflective surfaces and includes a PNP output and M8 connector for seamless integration into small automation systems.

Key Features

• Sensing range: 0.1 m to 2 m (with reflector)

• Polarized red LED for reliable detection on shiny surfaces

• PNP switching output (normally open)

• Compact rectangular housing

• M8, 3-pin connector for minimal installation footprint

• IP67-rated protection for industrial use

• Fast response time for dynamic applications

Technical Specifications

• Catalog Number: 50117706

• Operating Principle: Polarized retro-reflective

• Light Source: Red LED

• Detection Range: 0.1 m to 2.0 m

• Output Type: PNP, NO

• Electrical Connection: M8, 3-pin connector

• Supply Voltage: 10–30 V DC

• Response Time: <1 ms

• Protection Class: IP67

• Housing Material: Plastic

• Operating Temperature: –25 °C to +60 °C

• Storage Temperature: –40 °C to +70 °C

• Dimensions: Approx. 34 × 12 × 20 mm

• Weight: Approx. 20 g

Applications

• Compact machinery and robotics

• Packaging lines and presence detection

• Conveyor belt object monitoring

• Small-scale OEM automation systems

• Limited-space sensor integration

Why Choose PRK5/4P‑M8

• Reliable detection in tight spaces

• Polarization filter prevents false triggers from shiny objects

• Plug-and-play setup with M8 connector

• Durable construction for industrial reliability

• Compact and cost-effective sensing solution

Order Now

The Leuze PRK5/4P‑M8 photoelectric sensor (Part no. 50117706) is available and ships worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
