Leuze PRK5/4P‑200‑M12

Leuze PRK5/4P‑200‑M12 | Retro-Reflective Photoelectric Sensor | 0.1–2 m | Polarized Red Light | M12 Connector

Overview

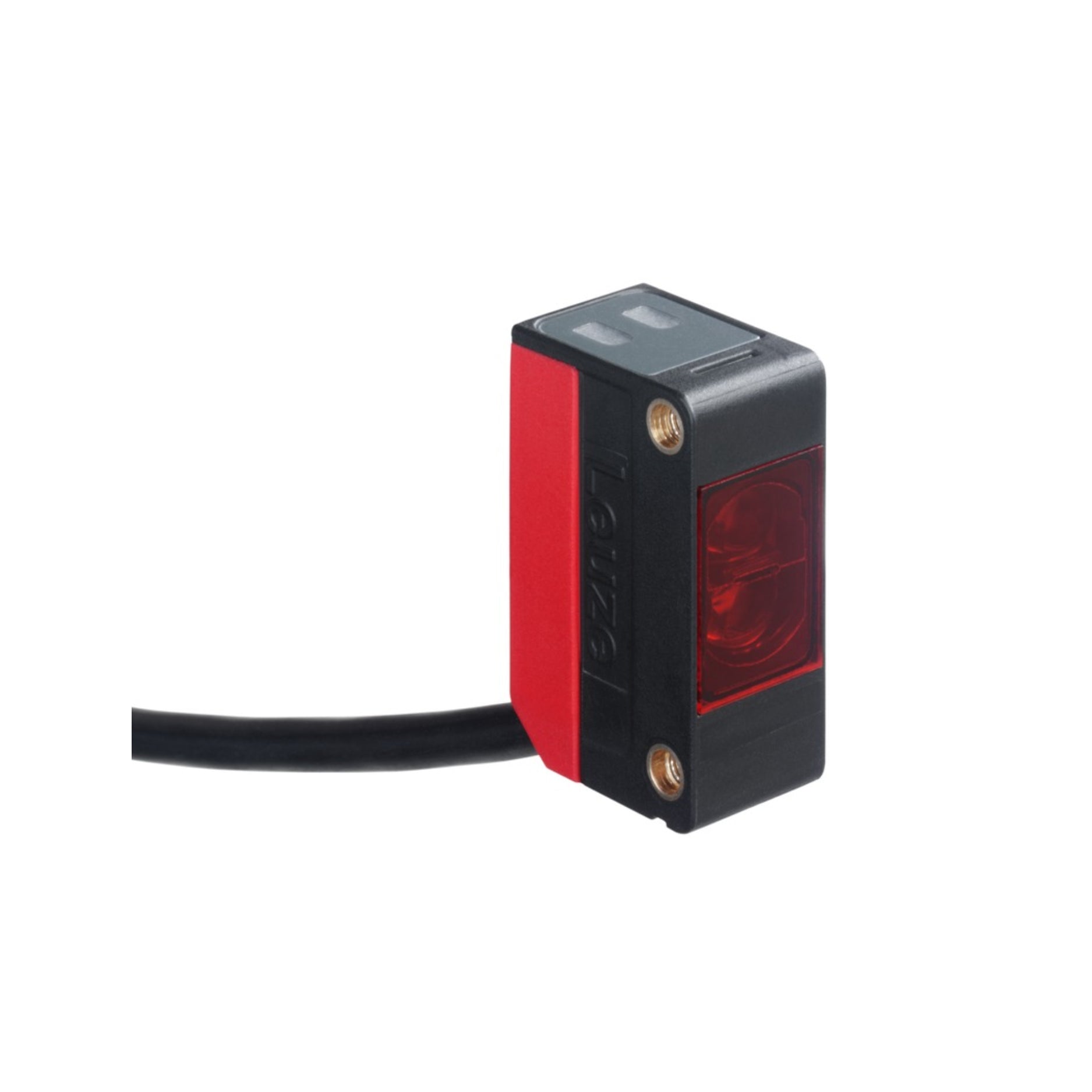

The Leuze PRK5/4P‑200‑M12 is a compact and reliable polarized retro-reflective photoelectric sensor with a sensing range of up to 2 m. Designed for space-constrained industrial applications, it features a red LED light with polarization filtering to detect reflective surfaces accurately. With PNP switching output and a standard M12 connector, this sensor offers quick installation and high performance in demanding environments.

Key Features

• Sensing range: 0.1 m to 2 m (with reflector)

• Polarized red LED for detection of shiny or reflective objects

• Output type: PNP, normally open (NO)

• Compact rectangular housing

• M12, 4-pin connector for easy integration

• Fast switching time and high detection accuracy

• IP67-rated for harsh industrial environments

Technical Specifications

• Catalog Number: 50117704

• Operating Principle: Polarized retro-reflective

• Light Source: Red LED

• Detection Range: 0.1 m to 2.0 m

• Output Type: PNP, NO

• Electrical Connection: M12, 4-pin connector

• Supply Voltage: 10–30 V DC

• Response Time: <1 ms

• Protection Class: IP67

• Housing Material: Plastic

• Operating Temperature: –25 °C to +60 °C

• Storage Temperature: –40 °C to +70 °C

• Dimensions: Approx. 34 × 12 × 20 mm

• Weight: Approx. 20–30 g

Applications

• Short-range object detection in conveyors

• Packaging and labeling systems

• Presence sensing in compact machinery

• Robotics and automation lines

• OEM equipment with limited installation space

Why Choose PRK5/4P‑200‑M12

• Accurate and reliable object detection up to 2 m

• Polarized optics eliminate false triggers from reflections

• Space-saving design with high protection rating

• Fast installation with standard M12 interface

• Excellent choice for compact and fast-moving automation systems

Order Now

The Leuze PRK5/4P‑200‑M12 photoelectric sensor (Part no. 50117704) is available and ships worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
