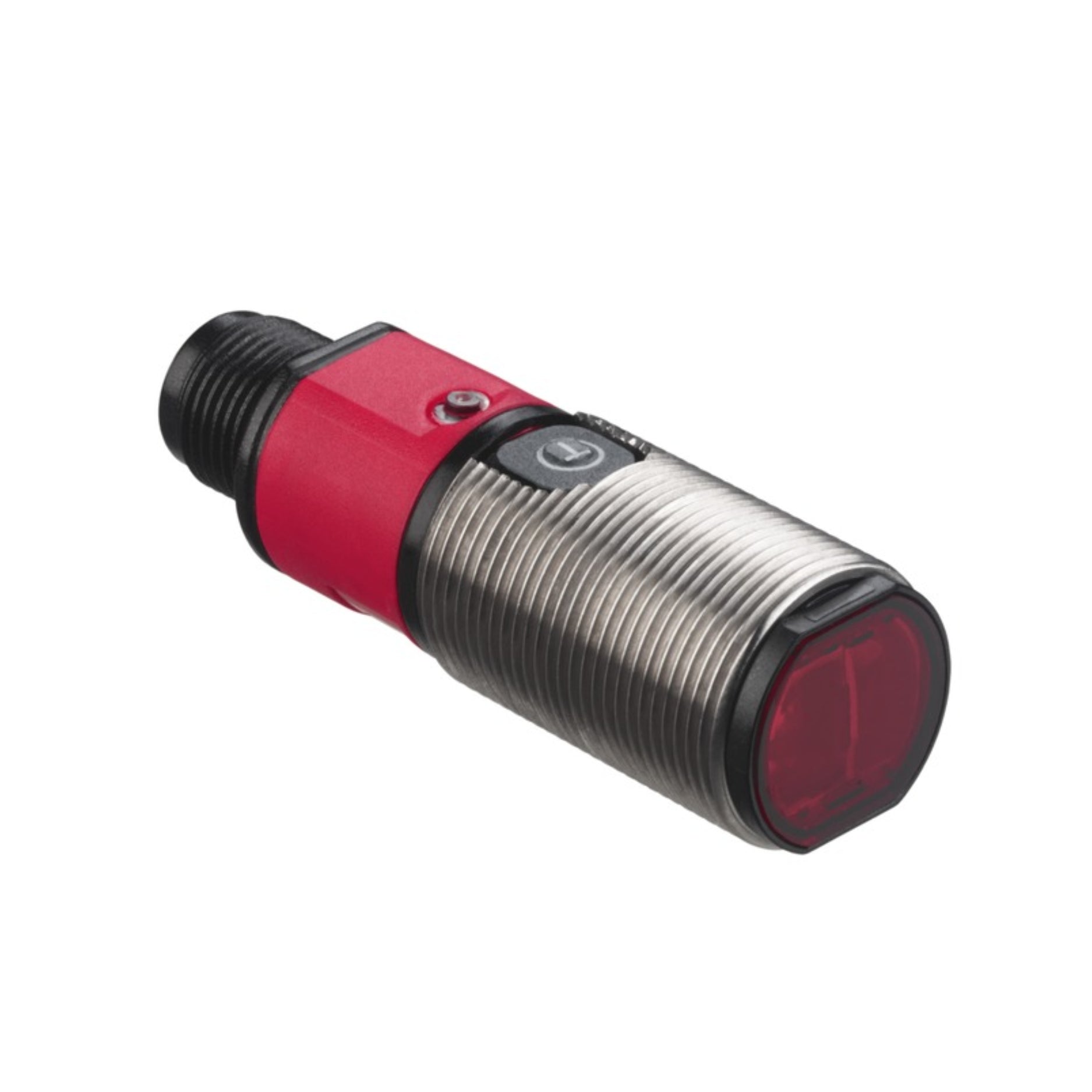

Leuze PRK328.3/4P‑M12

Leuze PRK328.3/4P‑M12 | Retro-Reflective Photoelectric Sensor | 0.1–5 m | Polarized Red Light | M12 Connector

Overview

The Leuze PRK328.3/4P‑M12 is a high-reliability polarized retro-reflective photoelectric sensor with a sensing range of 0.1 to 5 m. It uses a red LED light beam and polarization filter to provide accurate detection, even on reflective surfaces. Housed in a robust cylindrical M18 body with an M12 connector and IP67 rating, this sensor is ideal for industrial automation requiring precision and durability.

Key Features

• Sensing range: 0.1 m to 5 m (with reflector)

• Polarized red LED for precise detection on reflective targets

• Output type: PNP, normally open (NO)

• M12, 4-pin connector for easy integration

• M18 cylindrical threaded housing for secure mounting

• Bright status LEDs for power and signal indication

• IP67 protection for reliable operation in harsh conditions

Technical Specifications

• Catalog Number: 50122695

• Operating Principle: Polarized retro-reflective

• Light Source: Red LED

• Detection Range: 100 mm to 5,000 mm

• Output Type: PNP, NO

• Electrical Connection: M12, 4-pin connector

• Housing Type: Cylindrical M18

• Supply Voltage: 10–30 V DC

• Response Time: <1 ms

• Protection Class: IP67

• Operating Temperature: –25 °C to +60 °C

• Storage Temperature: –40 °C to +70 °C

• Housing Material: Metal or reinforced plastic (model dependent)

• Weight: Approx. 60–80 g

Applications

• Object detection on conveyor belts

• Packaging and bottling lines

• Automated warehouse systems

• Robotics and positioning systems

• OEM automation solutions requiring cylindrical sensors

Why Choose PRK328.3/4P‑M12

• Compact and rugged M18 housing

• Reliable detection of shiny or reflective objects

• Fast response time ideal for dynamic systems

• Easy wiring with standardized M12 connector

• Industrial-grade durability and environmental resistance

Order Now

The Leuze PRK328.3/4P‑M12 photoelectric sensor (Part no. 50122695) is available and ships worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
