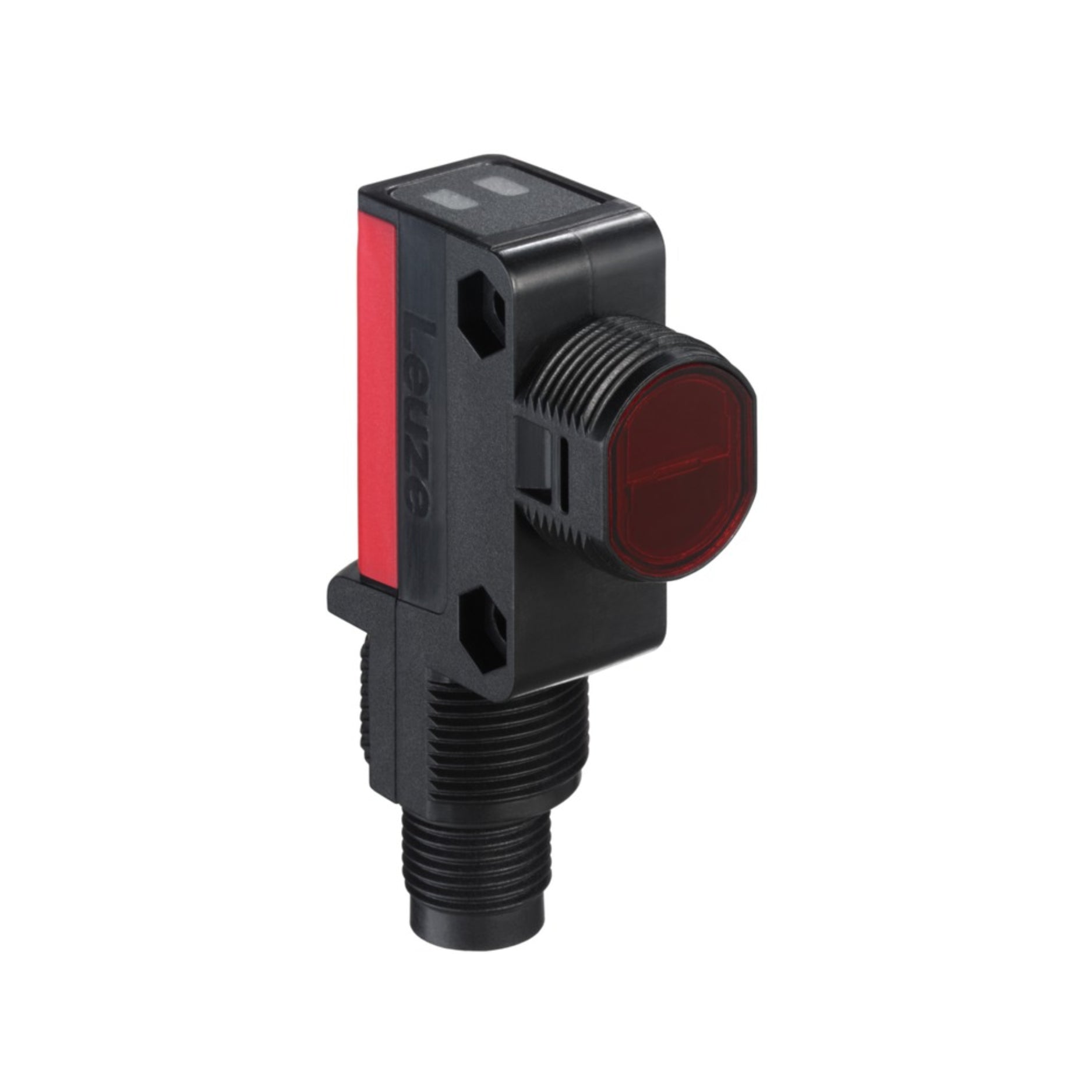

Leuze PRK28/4P‑M12

Leuze PRK28/4P‑M12 | Retro-Reflective Photoelectric Sensor | 0.1–4 m | Polarized Red Light | M12 Connector

Overview

The Leuze PRK28/4P‑M12 is a compact polarized retro-reflective photoelectric sensor designed for short-to-mid-range object detection. With a detection range up to 4 m and red LED light with polarization filter, it delivers reliable sensing performance even on reflective surfaces. Its robust construction, M12 connector, and PNP switching output make it ideal for integration into industrial automation environments.

Key Features

• Sensing range: 0.1 m to 4 m (with reflector)

• Polarized red LED for accurate object detection

• PNP switching output (normally open)

• M12, 4-pin connector for quick, secure wiring

• High switching frequency for dynamic applications

• IP67-rated housing for harsh industrial environments

• Compact rectangular housing for flexible installation

Technical Specifications

• Catalog Number: 50117924

• Operating Principle: Polarized retro-reflective

• Light Source: Red LED

• Sensing Range: 0.1 m to 4 m

• Output Type: PNP, NO

• Connection: M12, 4-pin connector

• Supply Voltage: 10–30 V DC

• Response Time: <1 ms

• Protection Rating: IP67

• Housing Material: Plastic

• Operating Temperature: –25 °C to +60 °C

• Storage Temperature: –40 °C to +70 °C

• Dimensions: Approx. 50 × 18 × 40 mm

• Weight: Approx. 40 g

Applications

• Conveyor line object detection

• Packaging and material handling systems

• Robotics and automated assembly

• Presence detection in logistics equipment

• OEM applications requiring compact sensors

Why Choose PRK28/4P‑M12

• Reliable detection on reflective and angled surfaces

• Compact and rugged design for easy mounting

• Fast response and high detection reliability

• Simplified wiring with industry-standard M12 connector

• Proven Leuze quality for industrial automation systems

Order Now

The Leuze PRK28/4P‑M12 photoelectric sensor (Part no. 50117924) is available and ships worldwide.
