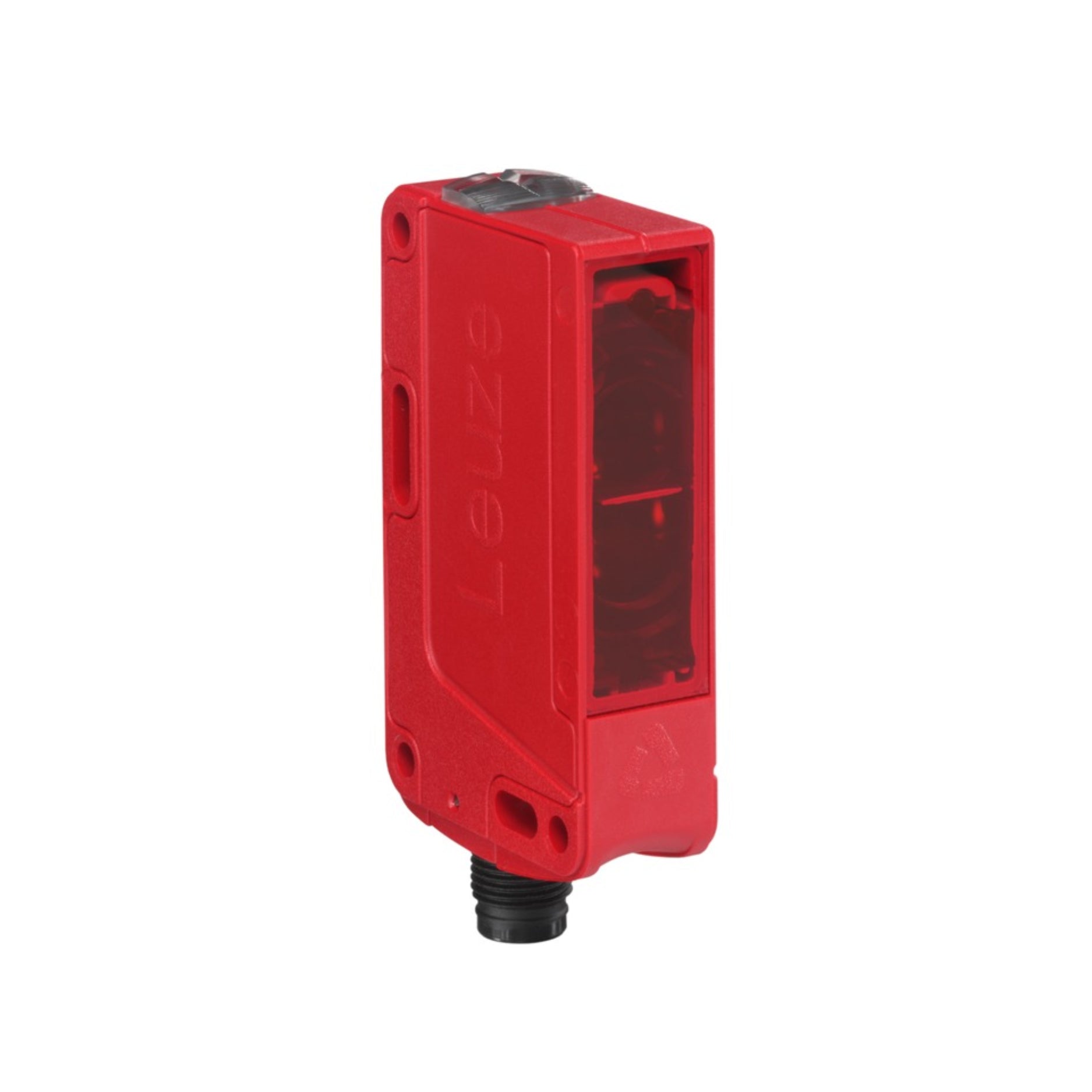

Leuze PRK 46B/44.01‑S12

Leuze PRK 46B/44.01‑S12 | Retro-Reflective Photoelectric Sensor | 0.1–15 m | Polarized Red Light | M12 Connector

Overview

The Leuze PRK 46B/44.01‑S12 is a rugged retro-reflective photoelectric sensor designed for reliable long-range object detection up to 15 m. It features a polarized red light LED for accurate sensing, even on reflective surfaces, and provides a robust switching signal via its PNP output. The M12 connector, high protection rating, and durable housing make it ideal for demanding industrial automation environments.

Key Features

• Sensing range: 0.1 to 15 m with reflector

• Polarized red LED light for filtering reflective surfaces

• PNP switching output (normally open)

• Standard M12, 4-pin connector

• Rugged IP67 housing for industrial environments

• High immunity to ambient light and optical interference

• Visible LED indicators for power and signal status

Technical Specifications

• Operating Principle: Polarized retro-reflective

• Light Source: Red LED

• Sensing Range: 0.1 m to 15 m (with suitable reflector)

• Output Type: PNP, NO (normally open)

• Electrical Connection: M12, 4-pin

• Supply Voltage: 10–30 V DC

• Response Time: <1 ms

• Protection Class: IP67

• Housing Material: Plastic

• Operating Temperature: –25 °C to +60 °C

• Dimensions: Approx. 50 × 50 × 20 mm

• Weight: Approx. 50 g

Applications

• Object detection on fast-moving conveyor lines

• Pallet and carton recognition in logistics

• Packaging and bottling lines

• Machine safety verification systems

• General-purpose industrial automation

Why Choose PRK 46B/44.01‑S12

• Long-range and precise detection up to 15 m

• Effective suppression of false signals from shiny surfaces

• Standardized wiring with M12 plug

• Industrial-grade housing for durability

• Fast response and reliable output in any setup

Order Now

The Leuze PRK 46B/44.01‑S12 retro-reflective sensor is available and ships worldwide.
