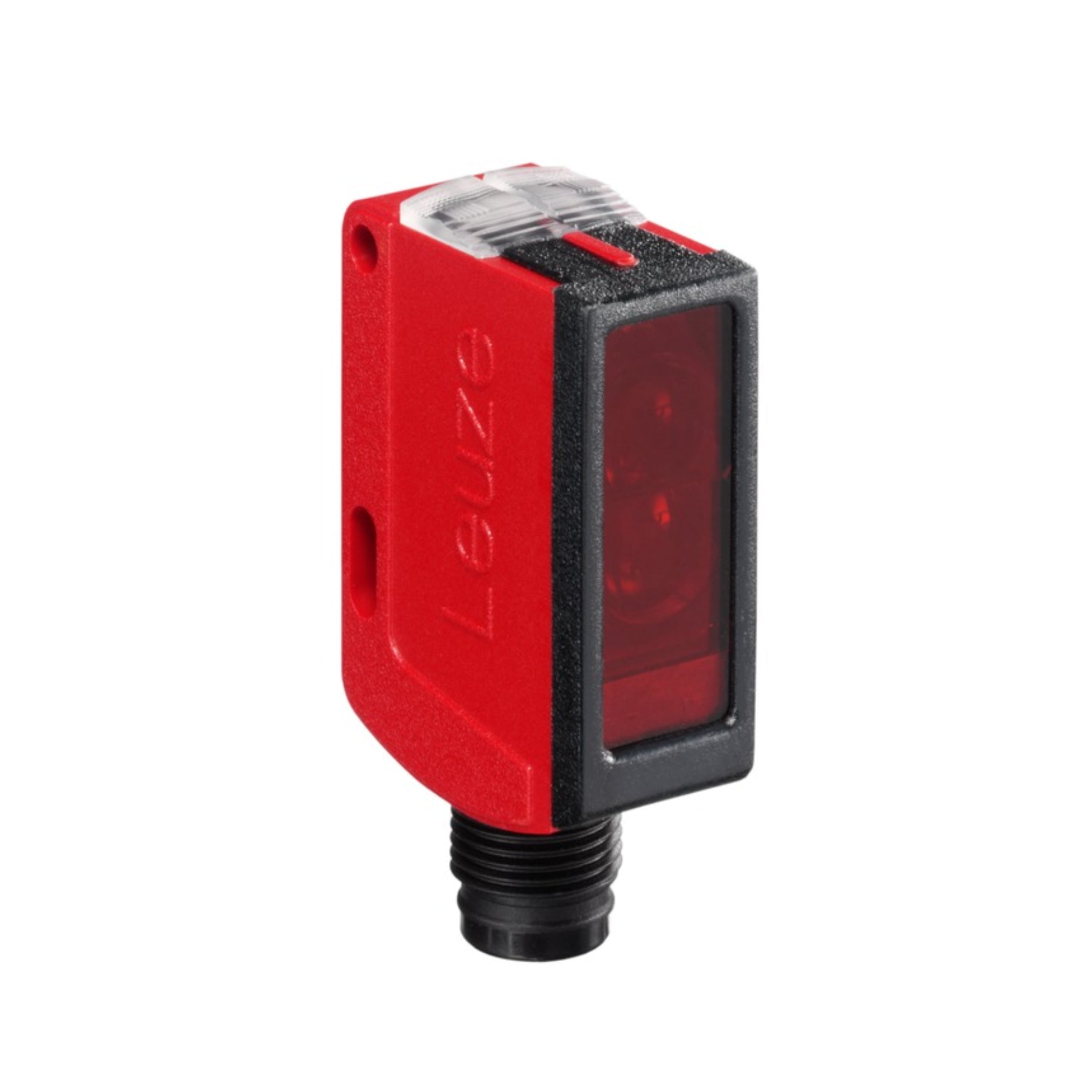

Leuze PRK 25B/66.3‑S12

Leuze PRK 25B/66.3‑S12 | Retro-Reflective Photoelectric Sensor | 0.1–12 m | Polarized Red Light | M12 Connector

Overview

The Leuze PRK 25B/66.3‑S12 is a high-performance retro-reflective photoelectric sensor with polarization filtering for precise object detection. It offers a reliable sensing range of 0.1 to 12 m and is ideal for detecting shiny or reflective surfaces without false triggers. Equipped with a visible red LED, a robust IP67-rated housing, and an M12 connector, it ensures fast installation and long-term stability in demanding automation environments.

Key Features

• Sensing range: 0.1 to 12 m with reflective target

• Polarized red LED for high immunity to false reflections

• Digital switching output (PNP)

• M12, 4-pin connector for easy electrical integration

• Bright LED indicators for signal and power status

• Rectangular, space-saving housing with side-view optics

• Durable design for harsh industrial conditions (IP67)

Technical Specifications

• Catalog Number: 50104236

• Sensing Principle: Polarized retro-reflective

• Light Source: Red LED

• Sensing Range: 0.1 m to 12 m (with recommended reflector)

• Output: PNP, normally open

• Connector Type: M12, 4-pin

• Supply Voltage: 10–30 V DC

• Response Time: <1 ms

• Housing Type: Rectangular plastic housing

• Protection Class: IP67

• Operating Temperature: –25 °C to +55 °C

• Storage Temperature: –40 °C to +70 °C

• Dimensions: Approx. 50 × 18 × 40 mm

• Weight: Approx. 40 g

Applications

• Conveyor and logistics systems

• Packaging and bottling lines

• Detection of shiny or transparent materials

• Machine safety and door interlocks

• OEM sensor integration in automation systems

Why Choose PRK 25B/66.3‑S12

• Accurate detection even on reflective or transparent surfaces

• Fast switching for dynamic environments

• Robust and compact sensor for tight industrial spaces

• Easy-to-integrate with standard M12 wiring

• Reliable performance in dusty, wet, or vibration-prone areas

Order Now

The Leuze PRK 25B/66.3‑S12 photoelectric sensor (Part no. 50104236) is available and ships worldwide.
