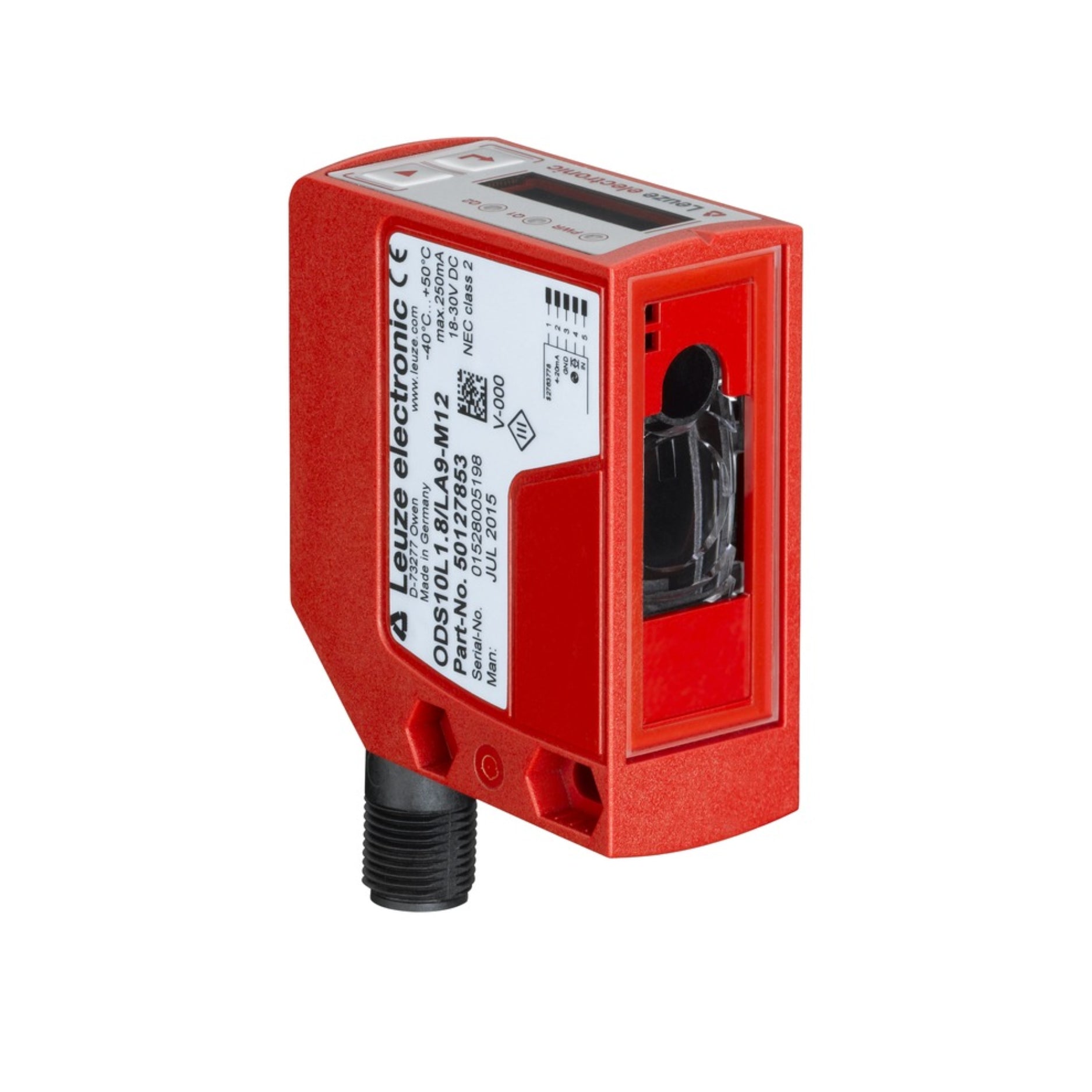

Leuze ODS10L1.8/LAK‑M12

Leuze ODS10L1.8/LAK‑M12 | Optical Distance Sensor | 100 mm – 1.8 m | M12 Connector

Overview

The Leuze ODS10L1.8/LAK‑M12 is a precise optical distance sensor designed for accurate measurement in industrial environments. With a measurement range from 100 mm to 1.8 m, this laser-based device offers high repeatability and fast response, making it ideal for positioning, object detection, and quality control applications. It features an M12 connector and analog output, ensuring flexible and simple integration.

Key Features

• Measurement range: 100 mm to 1.8 m

• Laser Class 1 for safe operation

• Analog output: 0–10 V

• Compact rectangular housing with M12 connector

• High repeatability and fast response time

• Visible red laser for easy alignment

• Suitable for various surface types, including reflective materials

Technical Specifications

• Catalog Number: 50127853

• Sensing Technology: Time-of-flight laser distance measurement

• Measurement Range: 100 mm to 1,800 mm

• Light Source: Laser (red), Class 1

• Output Signal: Analog (0–10 V)

• Repeatability: ±10 mm

• Connector: M12, 4-pin

• Supply Voltage: 18–30 V DC

• Housing Material: Plastic

• Protection Class: IP67

• Operating Temperature: –10 °C to +50 °C

• Mounting Type: Surface / bracket mount

• Dimensions: Approx. 50 × 50 × 20 mm

• Weight: Approx. 60 g

Applications

• Object positioning and presence detection

• Dimensional measurement in conveyors

• Pallet and bin detection in logistics

• Packaging and automated assembly lines

• Non-contact measurement in harsh environments

Why Choose ODS10L1.8/LAK‑M12

• Compact and robust sensor for tight spaces

• Reliable distance measurement on various surfaces

• Plug-and-play M12 connector for easy wiring

• Analog output ideal for continuous distance control

• Trusted performance in demanding industrial settings

Order Now

The Leuze ODS10L1.8/LAK‑M12 optical distance sensor (Part no. 50127853) is available and ships worldwide.
