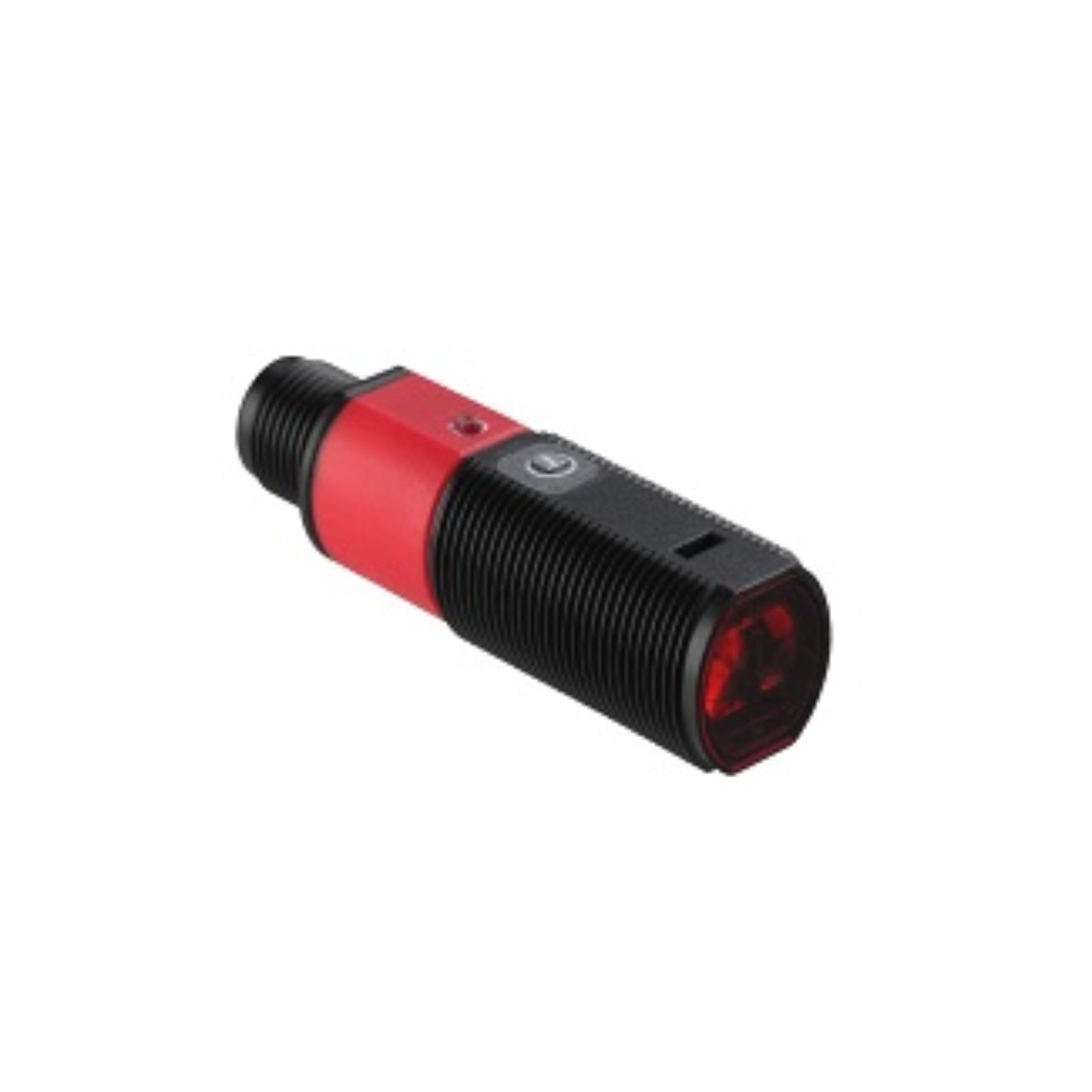

Leuze LE318B/4P-M12

Leuze LE318B/4P-M12 | Diffuse Sensor with Background Suppression | 30–300 mm Sensing | Red Light | IP67 | M12 Connector

Overview

The Leuze LE318B/4P-M12 is a high-performance diffuse photoelectric sensor with background suppression (BGS), designed for precise detection of objects within 30 to 300 mm. It uses a visible red LED and provides a reliable PNP switching output. Its IP67-rated enclosure and M12 connector make it suitable for use in industrial automation, packaging, and handling systems.

Key Features

• Sensing Range: 30–300 mm

• Sensing Mode: Diffuse with background suppression (BGS)

• Light Source: Red LED (visible)

• Output Type: PNP, 4-wire

• Switching Type: Light/dark switching

• Connector: M12, 4-pin

• Housing Rating: IP67

• Material: Reinforced plastic housing

• Response Time: Short reaction for dynamic detection

• Power Supply: 10–30 V DC

Technical Specifications

• Model: LE318B/4P-M12

• Adjustments: Manual potentiometer or teach-in (variant dependent)

• Mounting: Through holes with alignment options

• Status Indicators: LED for power and output status

• Ambient Operating Temperature: -25°C to +55°C

• Certifications: CE, RoHS, cULus

• Protection Class: IP67 for industrial-grade resistance to dust and water

Applications

• Presence detection on conveyor belts

• Packaging and labeling automation

• Object detection on robotic arms

• Industrial parts feeding systems

• Material alignment in production lines

Why Choose the LE318B/4P-M12

• Accurate Detection: Background suppression ensures reliable sensing

• Compact & Durable: IP67 protection in a small form factor

• Fast Integration: M12 connector with standard wiring

• Visible Red Light: Easy alignment during setup

• Leuze Quality: Engineered for consistent performance in harsh environments

Order Now

The Leuze LE318B/4P-M12 diffuse photoelectric sensor is available and ships worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
