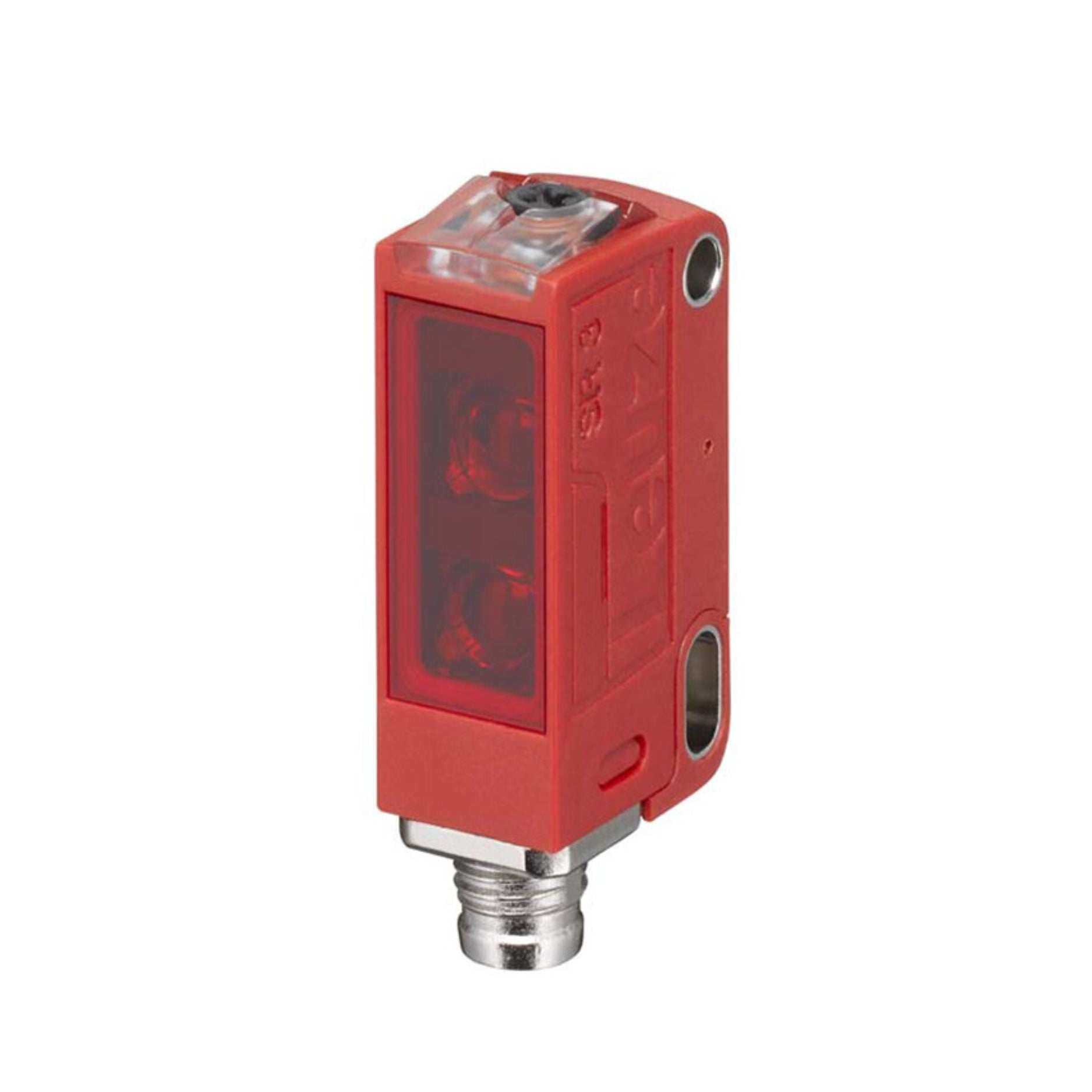

Leuze HT3C/6G-M8

Leuze HT3C/6G-M8 | Diffuse Sensor | 200 mm Range | M8 Connector | Red Light | IP67

Overview

The Leuze HT3C/6G-M8 is a diffuse photoelectric sensor engineered for precise object detection at short ranges up to 200 mm. It uses visible red light for clear sensing and includes a PNP switching output. Housed in a compact and durable plastic enclosure, the sensor features a 4-pin M8 connector for easy wiring and is rated IP67, ensuring dependable operation in demanding industrial settings.

Key Features

• Sensing Principle: Diffuse reflection

• Light Source: Red LED, visible light

• Sensing Range: 10–200 mm

• Output Type: PNP, light switching

• Connection Type: M8, 4-pin male connector

• Response Time: ≤ 0.5 ms

• Switching Frequency: Up to 1000 Hz

• Power Supply: 10–30 V DC

• Enclosure Rating: IP67

• Housing Material: PC/ABS plastic

Technical Specifications

• Model Number: HT3C/6G-M8

• Series: 3C

• Repeatability: ≤ 0.5 mm

• Ambient Light Immunity: > 100,000 lux

• Temperature Range: -40°C to +60°C

• Status Indicators: LED for operation and output status

• Polarity Protection: Yes

• Overload Protection: Yes

• Certifications: CE, cULus

Applications

• Precise detection of small or colored objects

• Assembly and test lines

• Packaging machinery

• Short-range positioning in confined automation systems

• OEM machine integration

Why Choose the HT3C/6G-M8

• Compact Design: Easily fits into space-limited installations

• Reliable Detection: Red light for precise short-range sensing

• Fast Switching: Suitable for high-speed automation

• Durable Build: IP67 for harsh industrial environments

• Plug-and-Play: Quick integration with standard M8 connector

Order Now

The Leuze HT3C/6G-M8 diffuse sensor is in stock and ships worldwide.
