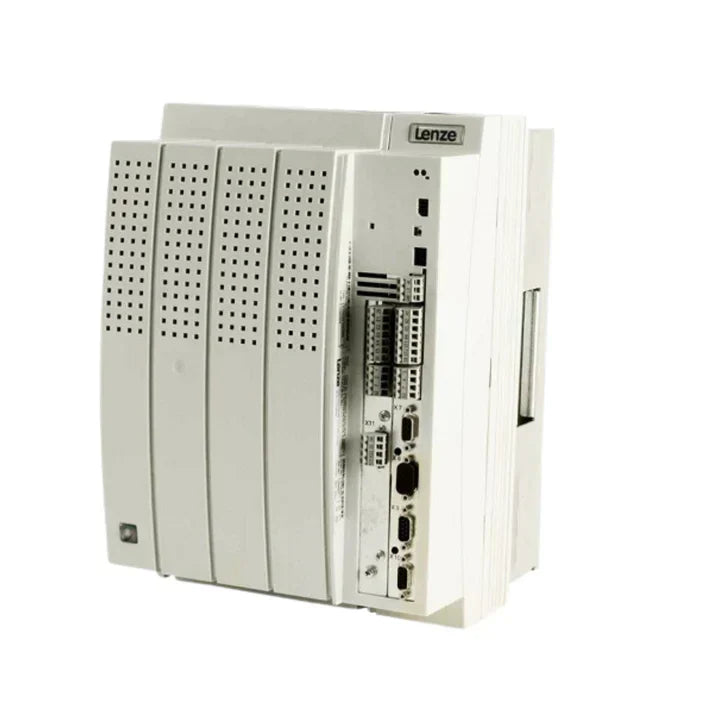

Lenze EVS9329-CS

Lenze EVS9329-CS

Overview

The Lenze EVS9329-CS is an 11 kW servo inverter from the 9300 Servo Series, designed in a compact housing (CS) for space-constrained applications. It offers high dynamic performance for advanced motion control applications, enabling precise position, speed, and torque regulation with modular communication options and flexible encoder support.

Key Features

• Rated Power: 11 kW (15 HP)

• Input Voltage: 3-phase 400 V AC

• Compact "CS" version for panel-mounted installation

• Control Modes: Position, speed, and torque control

• Feedback Compatibility: Resolver and incremental encoder

• Modular fieldbus expansion (CANopen, Profibus, and others)

• Built-in diagnostics and LED indicators

Technical Specifications

• Catalog Number: EVS9329-CS

• Input Voltage: 3×400 V AC ±10%

• Output Frequency: 0–599 Hz

• Cooling: Internal fan

• Protection Class: IP20

• Mounting: Panel-mounted

• Operating Temperature: 0 °C to +45 °C (up to +55 °C with derating)

• Communication: Expandable via fieldbus interface modules

• Certifications: CE, UL, cUL

Applications

• High-power industrial automation systems

• Robotics, packaging, and handling machinery

• OEM machines requiring strong servo performance

• Systems with space limitations and high control demands

• Encoder-based automation requiring dynamic response

Why Choose the EVS9329-CS

• Provides powerful 11 kW control in a compact format

• Trusted performance from the Lenze 9300 Servo Series

• Flexible integration into a variety of automation platforms

• Modular communication options for easy system adaptation

• Ideal for demanding motion applications with limited space

Order Now

The Lenze EVS9329-CS servo inverter is available and ships worldwide.

Return to Lenze 9300 Servo Inverters EVS Series for more options in this range.

Explore our full selection of Lenze industrial automation products, including frequency inverters, servo drives, motors, and control modules for high-performance industrial applications.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
