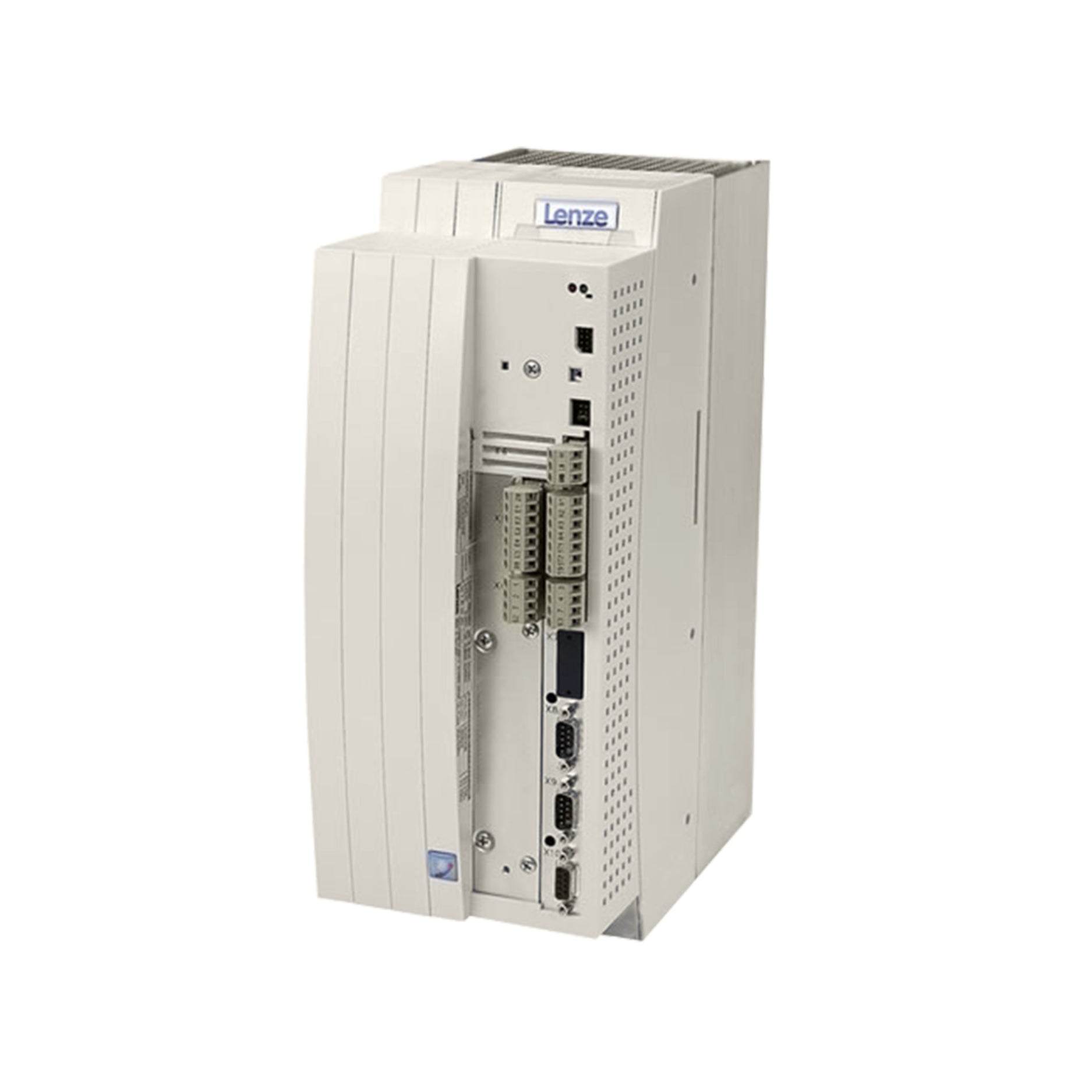

Lenze EVS9325-ESV004

Lenze EVS9325-ESV004 | Compact 5.5 kW Servo Drive for Industrial Applications

Overview

The Lenze EVS9325-ESV004 is a compact and efficient servo drive designed for precise control of three-phase AC motors in industrial environments. With a power rating of 5.5 kW and advanced control capabilities, it ensures reliable performance and energy efficiency in various applications.

Key Features

• Power Output: 5.5 kW (7.4 HP)

• Input Voltage: 3-phase, 400–480 V AC

• Output Current:

  • At 8 kHz: 13 A

  • At 16 kHz: 9.7 A

• Maximum Output Current:

  • At 8 kHz: 19.5 A

  • At 16 kHz: 14.6 A

• Braking Power:

  • Continuous: 11 kW

  • Peak: 25 kW

• Minimum Brake Resistance: 27 Ω ±10%

• Power Loss: 260 W

• Dimensions: 350 mm (H) × 135 mm (W) × 250 mm (D)

• Weight: 7.5 kg

• Enclosure: IP20 protection class

• Mounting: Panel-mounted design

• Cooling: Integrated cooling system

• Permissible Motor Cable Length (Shielded): Up to 50 m

Applications

• Conveyor systems

• Material handling equipment

• Packaging machinery

• Pumps and fans

• General industrial automation

Why Choose Lenze EVS9325-ESV004?

• Precise Motor Control: Advanced control ensures accurate speed and torque management

• Energy Efficiency: Optimizes energy consumption, reducing operational costs

• Compact Design: Saves space in control panels

• Robust Construction: Built for durability in demanding industrial settings

• Flexible Integration: Supports various industrial applications

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
