Lenze EVS9325-CSV003

Lenze EVS9325-CSV003

Overview

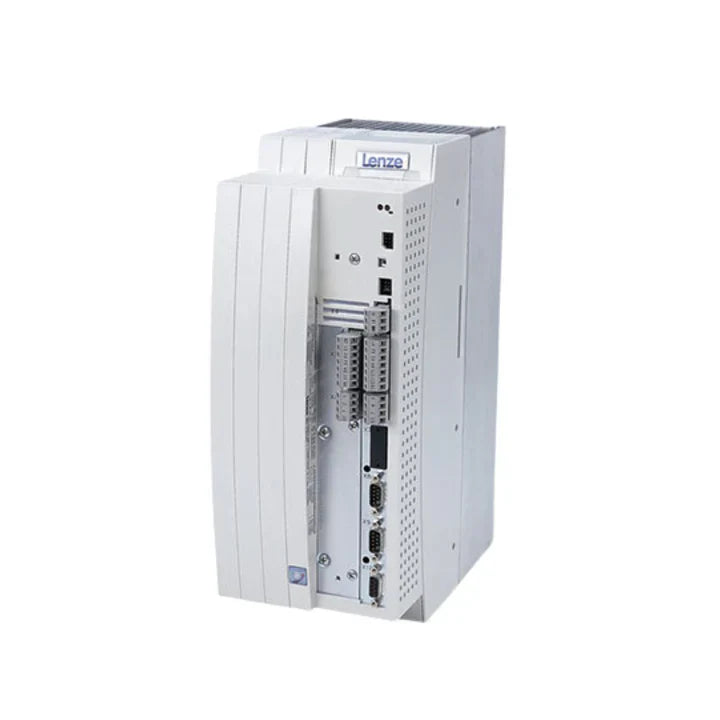

The Lenze EVS9325-CSV003 is a 3.0 kW servo inverter from the 9300 Servo Series, designed in a compact format with integrated I/O expansion. It provides precise control of torque, speed, and position in demanding automation systems. With support for multiple feedback types and modular communication options, this inverter is ideal for dynamic, space-constrained industrial environments.

Key Features

• Rated Power: 3.0 kW (4.0 HP)

• Input Voltage: 3-phase 400 V AC

• Version: Compact with I/O expansion (CSV003)

• Control Modes: Torque, speed, and position

• Feedback Options: Resolver and incremental encoder

• Integrated digital and analog I/O ports

• Fieldbus-ready via expansion modules (e.g., CANopen, Profibus)

• Panel-mount design with IP20 protection

Technical Specifications

• Catalog Number: EVS9325-CSV003

• Input Voltage: 3×400 V AC ±10%

• Output Frequency: 0–599 Hz

• Cooling: Internal fan

• Operating Temperature: 0 °C to +45 °C (up to +55 °C with derating)

• Communication: Modular interface support

• Protection Class: IP20

• Certifications: CE, UL, cUL

• Mounting: Panel installation

Applications

• Medium-power automation systems

• Packaging, robotics, and conveyor technology

• OEM machines requiring built-in I/O functionality

• Motion control with encoder feedback

• Industrial automation in space-limited cabinets

Why Choose the EVS9325-CSV003

• Powerful 3.0 kW servo control in a compact package

• Integrated I/O reduces external wiring and components

• Reliable, responsive performance for demanding tasks

• Modular communication for easy system integration

• Part of Lenze’s proven and scalable 9300 Servo Series

Order Now

The Lenze EVS9325-CSV003 servo inverter is available and ships worldwide.

Return to Lenze 9300 Servo Inverters EVS Series for more options in this range.

Explore our full selection of Lenze industrial automation products, including frequency inverters, servo drives, motors, and control modules for high-performance industrial applications.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
