Lenze EVS9323-CS

Lenze EVS9323-CS

Overview

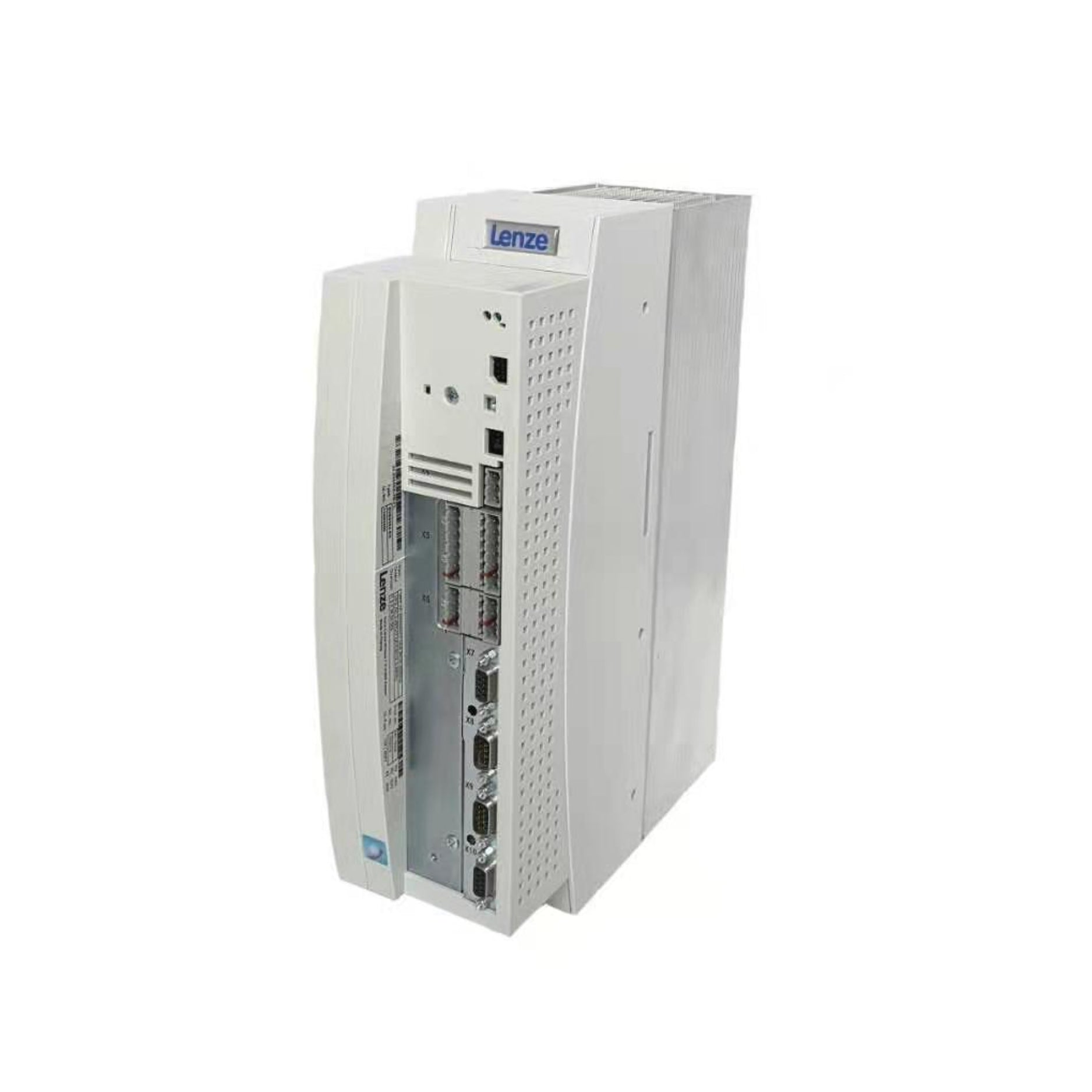

The Lenze EVS9323-CS is a 1.5 kW compact servo inverter from the 9300 Servo Series, built for precise, high-performance motion control in industrial automation systems. This compact model offers a space-saving design and supports versatile feedback systems, making it ideal for machines requiring accuracy and efficiency.

Key Features

• Rated Power: 1.5 kW (2.0 HP)

• Input Voltage: 3-phase 400 V AC

• Variant: CS (Compact Series)

• Control Modes: Position, speed, and torque control

• Supports resolver and incremental encoder feedback

• Modular design for fieldbus expansions (e.g., CANopen, Profibus)

• Compact, panel-mount IP20 construction

Technical Specifications

• Catalog Number: EVS9323-CS

• Input Voltage: 3×400 V AC ±10%

• Output Frequency: 0–599 Hz

• Cooling: Integrated fan

• Protection Class: IP20

• Mounting: Panel-mounted

• Operating Temperature: 0 °C to +45 °C (up to +55 °C with derating)

• Communication: Optional via communication modules

• Certifications: CE, UL, cUL

Applications

• High-speed conveyor and packaging lines

• Robotics and material handling systems

• Compact OEM machinery

• Industrial automation where precision and space-saving are required

• Motion applications using encoder or resolver feedback

Why Choose the EVS9323-CS

• Compact design ideal for dense control panels

• Reliable 1.5 kW servo power with precise control

• Part of Lenze’s trusted 9300 Servo Series

• Expandable communication options for versatile integration

• Proven performance in dynamic motion systems

Order Now

The Lenze EVS9323-CS servo inverter is available and ships worldwide.

Return to Lenze 9300 Servo Inverters EVS Series for more options in this range.

Explore our full selection of Lenze industrial automation products, including frequency inverters, servo drives, motors, and control modules for high-performance industrial applications.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
