Lenze EVS9322-CSV003

Lenze EVS9322-CSV003

Overview

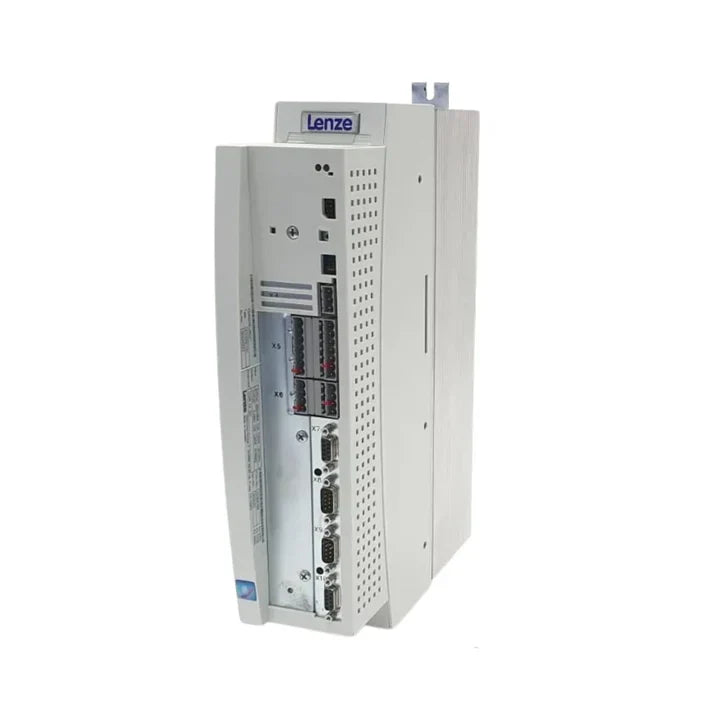

The Lenze EVS9322-CSV003 is a 0.75 kW servo inverter from the 9300 Servo Series, equipped with a compact housing and enhanced I/O capabilities. Ideal for precise and dynamic motion control, this model supports various encoder types and modular communication, with additional digital and analog inputs/outputs built in for versatile machine integration.

Key Features

• Rated Power: 0.75 kW (1.0 HP)

• Input Voltage: 3-phase 400 V AC

• Version: Compact with I/O expansion (CSV003)

• Control Modes: Speed, position, and torque

• Feedback: Supports resolver and incremental encoders

• Integrated I/O expansion for greater connectivity

• Fieldbus-ready via modular interface (CANopen, Profibus, etc.)

• IP20 panel-mount design

Technical Specifications

• Catalog Number: EVS9322-CSV003

• Input Voltage: 3×400 V AC ±10%

• Output Frequency: 0–599 Hz

• Cooling: Internal fan

• Protection Class: IP20

• Mounting: Panel-mounted

• Operating Temperature: 0 °C to +45 °C (up to +55 °C with derating)

• Communication: Fieldbus expansion modules optional

• Certifications: CE, UL, cUL

Applications

• Low- to mid-power automation systems

• OEM machines requiring additional I/O flexibility

• Packaging, robotics, and small-scale CNC machinery

• Precision control using encoder feedback

• Space-constrained control cabinets with I/O demands

Why Choose the EVS9322-CSV003

• Provides accurate 0.75 kW servo control in a compact size

• Integrated I/O expansion streamlines system architecture

• Reliable motion control with high responsiveness

• Scalable communication for seamless integration

• Part of Lenze’s trusted 9300 Servo Series

Order Now

The Lenze EVS9322-CSV003 servo inverter is available and ships worldwide.

Return to Lenze 9300 Servo Inverters EVS Series for more options in this range.

Explore our full selection of Lenze industrial automation products, including frequency inverters, servo drives, motors, and control modules for high-performance industrial applications.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
