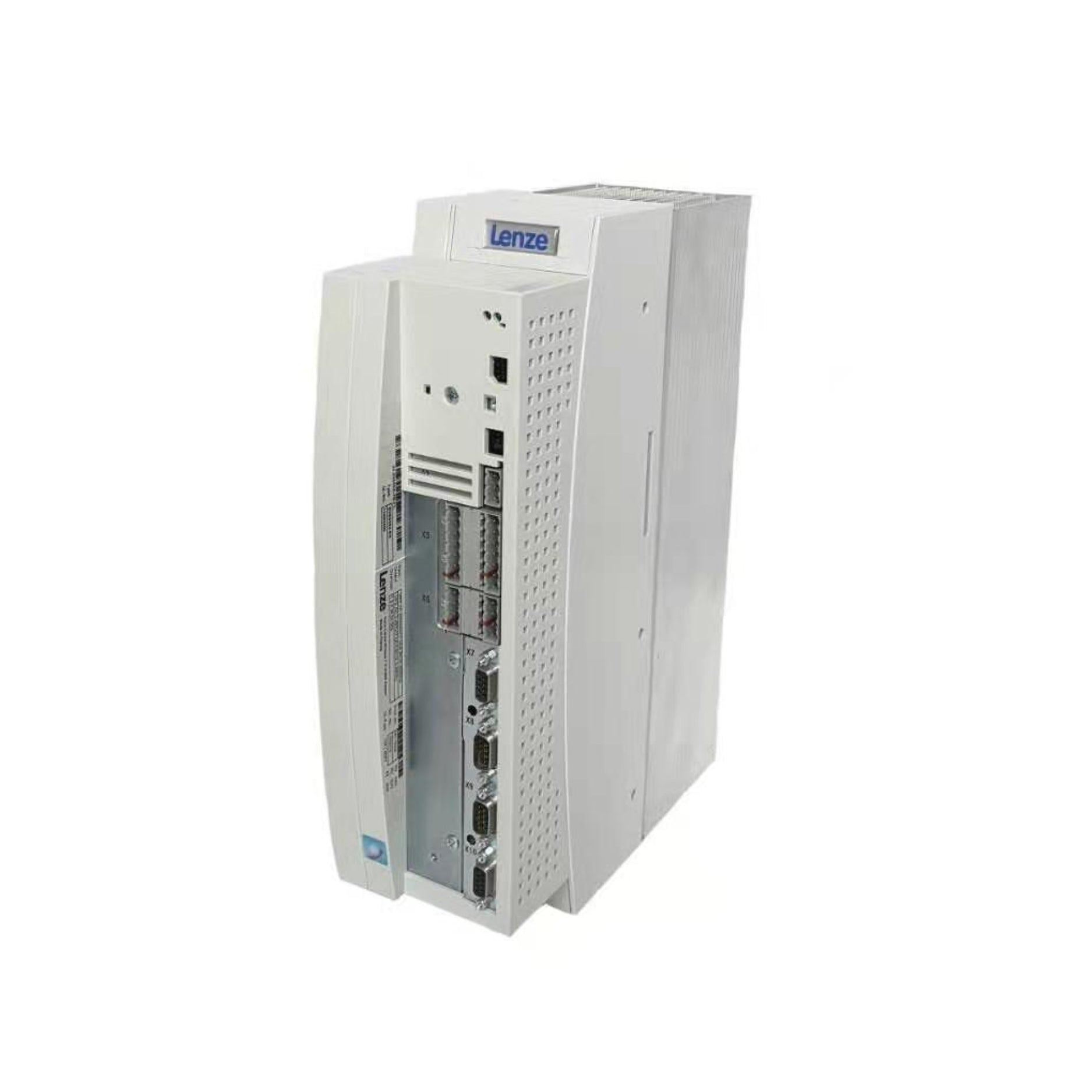

Lenze EVS9322-CS

Lenze EVS9322-CS

Overview

The Lenze EVS9322-CS is a 0.75 kW compact servo inverter from the trusted 9300 Servo Series, engineered for precision control in dynamic motion systems. With integrated motion functionality and compatibility with various encoder types, this inverter is ideal for automation tasks where space and performance are critical.

Key Features

• Rated Power: 0.75 kW (1.0 HP)

• Input Voltage: 3-phase 400 V AC

• Variant: Compact (CS) for tight installation spaces

• Advanced motion control: positioning, speed, torque

• Supports resolver and incremental encoder feedback

• Modular fieldbus communication options

• Compact IP20 panel-mount design

Technical Specifications

• Catalog Number: EVS9322-CS

• Input Voltage: 3×400 V AC ±10%

• Output Frequency: 0–599 Hz

• Cooling: Internal fan

• Protection Class: IP20

• Mounting: Panel-mounted

• Operating Temperature: 0 °C to +45 °C (up to +55 °C with derating)

• Communication: CANopen, Profibus, InterBus (with optional modules)

• Certifications: CE, UL, cUL

Applications

• High-precision packaging machines

• Compact automation systems

• Robotics and handling equipment

• Dynamic servo applications with tight space constraints

• OEM machinery with resolver or encoder-based feedback

Why Choose the EVS9322-CS

• Efficient 0.75 kW servo performance in compact housing

• Full motion control capabilities with minimal footprint

• Flexible integration with standard fieldbus protocols

• Robust design with Lenze quality

• Ideal for space-optimized control cabinets

Order Now

The Lenze EVS9322-CS servo inverter is available and ships worldwide.

Return to Lenze 9300 Servo Inverters EVS Series for more options in this range.

Explore our full selection of Lenze industrial automation products, including frequency inverters, servo drives, motors, and control modules for high-performance industrial applications.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
