Lenze EVS9321-CS

Lenze EVS9321-CS

Overview

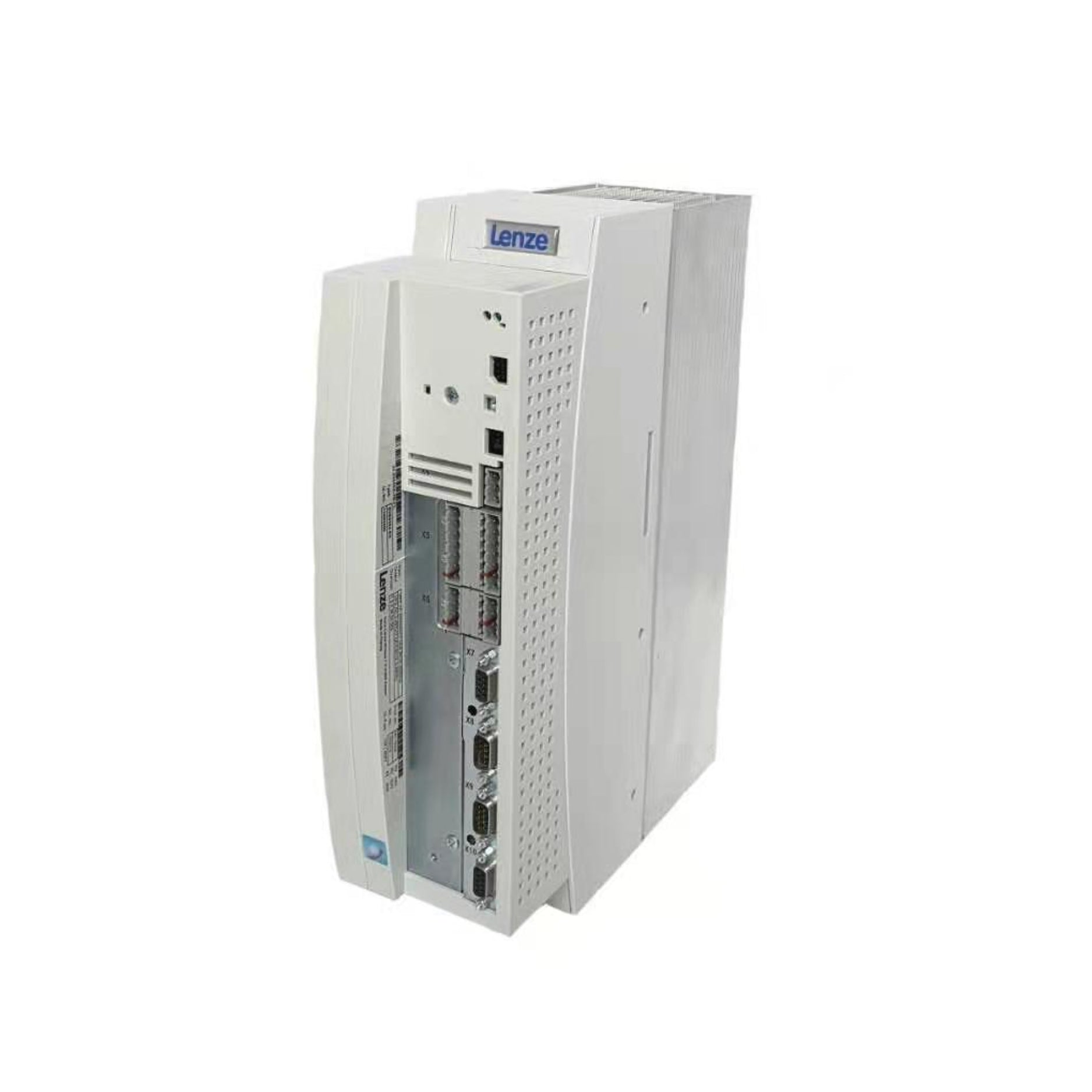

The Lenze EVS9321-CS is a compact 0.37 kW servo inverter from the 9300 Servo Series, designed for high-dynamic applications that require precision and reliability. With support for various feedback systems and advanced control capabilities, it is ideal for demanding motion tasks in industrial automation.

Key Features

• Rated Power: 0.37 kW (0.5 HP)

• Input Voltage: 3-phase 400 V AC

• Compact version (CS) for space-constrained installations

• Integrated motion control functions

• Supports resolver and incremental encoder feedback

• Modular configuration options

• Position, speed, and torque control

Technical Specifications

• Catalog Number: EVS9321-CS

• Input Voltage: 3×400 V AC ±10%

• Output Frequency: 0–599 Hz

• Cooling: Internal fan

• Protection Class: IP20

• Mounting: Panel-mounted

• Operating Temperature: 0 °C to +45 °C (up to +55 °C with derating)

• Communication: CANopen, InterBus, Profibus (with optional modules)

• Certifications: CE, UL, cUL

Applications

• Packaging machinery and robotics

• Precise motion control in industrial automation

• Small-scale conveyor systems

• OEM equipment requiring compact drive solutions

• Applications with resolver or encoder feedback

Why Choose the EVS9321-CS

• Compact and versatile servo drive solution

• Supports advanced motion control in tight spaces

• Ideal for high-precision and high-dynamic loads

• Modular and scalable architecture

• Backed by Lenze’s reliable 9300 technology

Order Now

The Lenze EVS9321-CS servo inverter is available and ships worldwide.

Return to Lenze 9300 Servo Inverters EVS Series for more options in this range.
