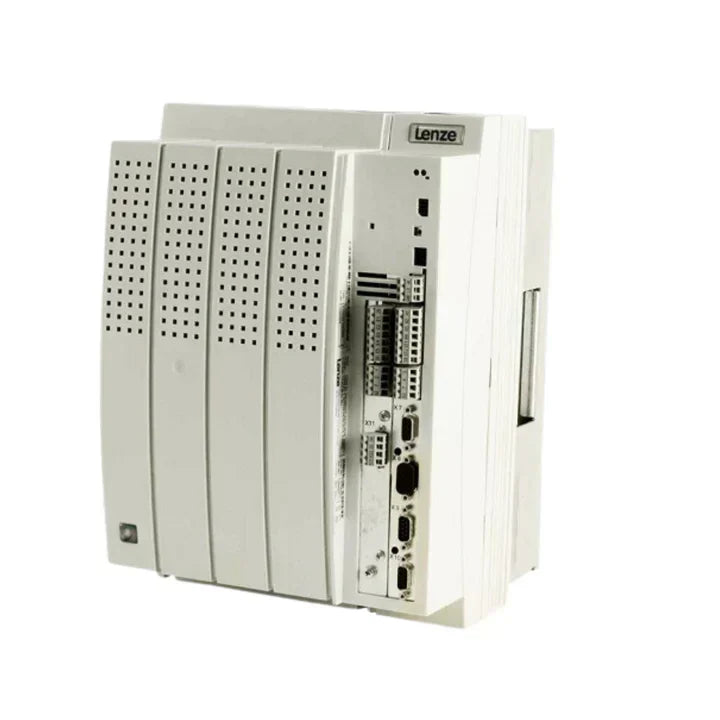

Lenze EVF9328-CV

Lenze EVF9328-CV

Overview

The Lenze EVF9328-CV is an 11 kW frequency inverter from the robust 9300 Series, offering reliable and efficient motor control in a compact design. As a CV (basic) version, it is optimized for open-loop applications where precise position feedback is not required. Its flexibility and ease of integration make it suitable for a wide range of industrial settings.

Key Features

• Rated Power: 11 kW (15 HP)

• Input Voltage: 3-phase 400 V AC

• Version: CV – basic model for open-loop control

• Control Modes: Speed and torque

• Compact IP20 enclosure for cabinet mounting

• Modular communication options via expansion slots

• Built-in fan cooling for consistent performance

Technical Specifications

• Catalog Number: EVF9328-CV

• Output Frequency: 0–599 Hz

• Input Voltage Tolerance: ±10%

• Operating Temperature: 0 °C to +45 °C (up to +55 °C with derating)

• Feedback: Not required (open-loop)

• Communication: CANopen, Profibus, others (with optional modules)

• Certifications: CE, UL, cUL

• Mounting: Control cabinet

Applications

• High-power conveyor systems

• Pumps and fans with variable speed requirements

• Industrial mixers and agitators

• Standard OEM machinery

• Automation processes with simple drive needs

Why Choose the EVF9328-CV

• Dependable 11 kW drive for standard applications

• Designed for ease of integration and maintenance

• Cost-effective solution for non-positioning tasks

• Optional modular communication interfaces

• Backed by Lenze’s engineering quality

Order Now

The Lenze EVF9328-CV frequency inverter is available and ships worldwide.

Return to Lenze 9300 Vector Frequency Inverters for more options in this series.

Explore our full range of Lenze Industrial Automation Products to find frequency inverters, servo drives, motors, gearboxes, and other motion control solutions.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
