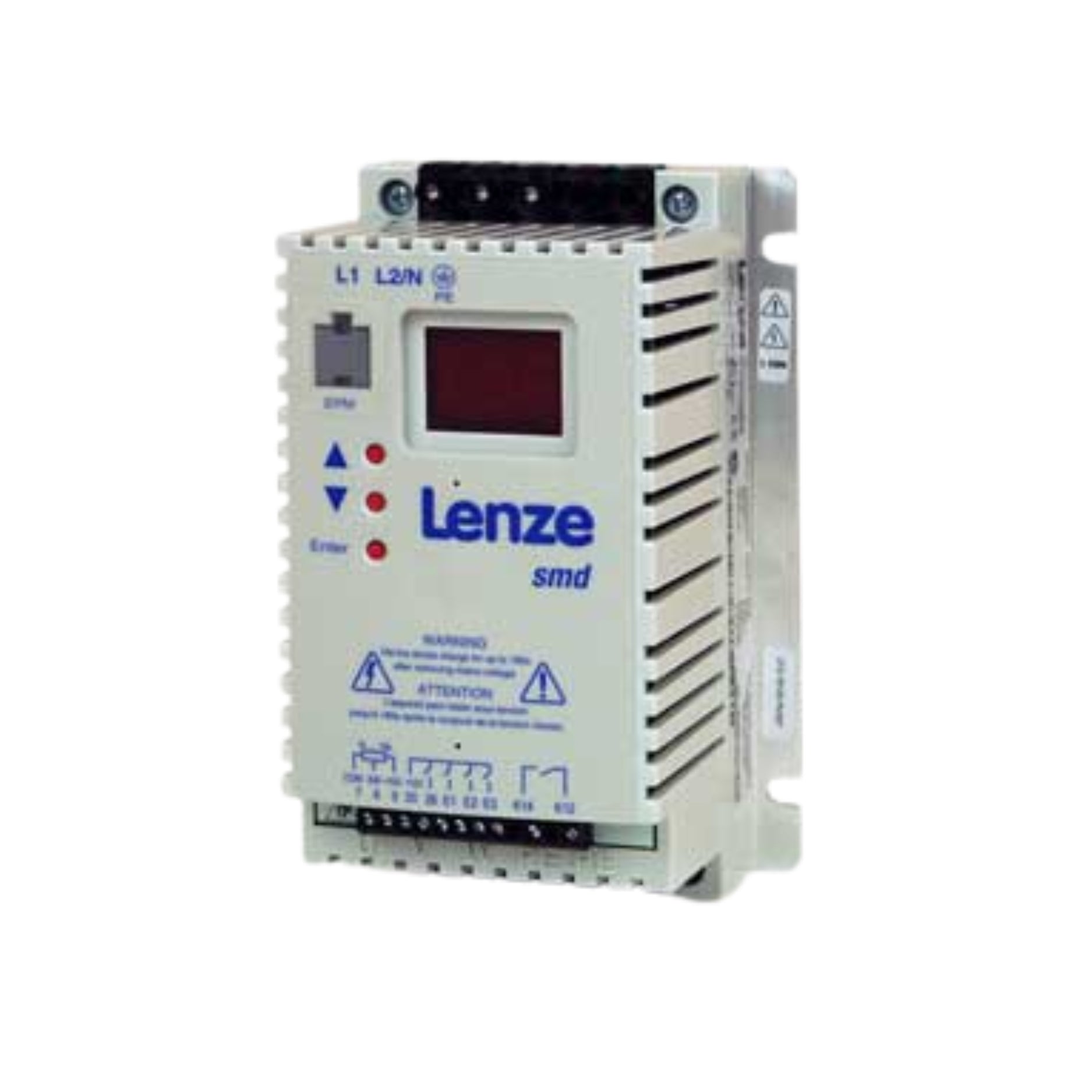

Lenze ESMD113L4TXA

Lenze ESMD113L4TXA | SMD Series Frequency Inverter

Overview

The Lenze ESMD113L4TXA is a robust and versatile frequency inverter from the SMD series, designed for general-purpose applications such as pumps, fans, and conveyors. With a power rating of 11 kW and a 400V 3-phase input, it offers reliable V/f control, ensuring smooth motor operation. Its compact IP20 enclosure makes it suitable for installation in control cabinets and other protected environments.

Key Features

• Power Rating: 11 kW (15 HP)

• Input Voltage: 3-phase, 400/480V AC

• Output Frequency: 0–240 Hz (standard), up to 500 Hz (max)

• Control Method: V/f control (linear or quadratic)

• Integrated Functions:

  • DC braking

  • S-ramps for smooth acceleration

  • Fixed frequency settings

  • Fault history buffer

  • PI controller

• Interfaces:

  • 1 x Analog input (0–10V)

  • 4 x Digital inputs

  • 1 x Relay output

  • RS485 (Modbus RTU) and CAN-Bus communication

• Display: LED for status and diagnostics

Technical Specifications

• Model Number: ESMD113L4TXA

• Series: SMD

• Rated Current: 24 A

• Overload Capacity: 150% for 1 minute

• Enclosure Protection: IP20

• Mounting: DIN rail

• Dimensions (W x H x D): 114 x 146 x 133 mm

• Weight: 9 kg

• Operating Temperature: 0°C to +55°C

• Storage Temperature: -20°C to +70°C

• Certifications: CE, UL, RoHS

• Country of Origin: Germany

Applications

• Pumps and Fans: Efficient speed control for HVAC systems

• Conveyors: Smooth start/stop operations in material handling

• General Machinery: Versatile use in various industrial equipment

• OEM Equipment: Ideal for integration into custom machinery

Why Choose the ESMD113L4TXA?

• Compact Design: Saves space in control panels

• User-Friendly Interface: Easy setup and monitoring via LED display

• Flexible Control: Supports both analog and digital inputs

• Reliable Performance: Proven Lenze quality for industrial applications

• Communication Capabilities: RS485 and CAN-Bus for integration into automation systems

Order Now

The Lenze ESMD113L4TXA is available for order.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
