Lenze EMB9343-E

Lenze EMB9343-E

Overview

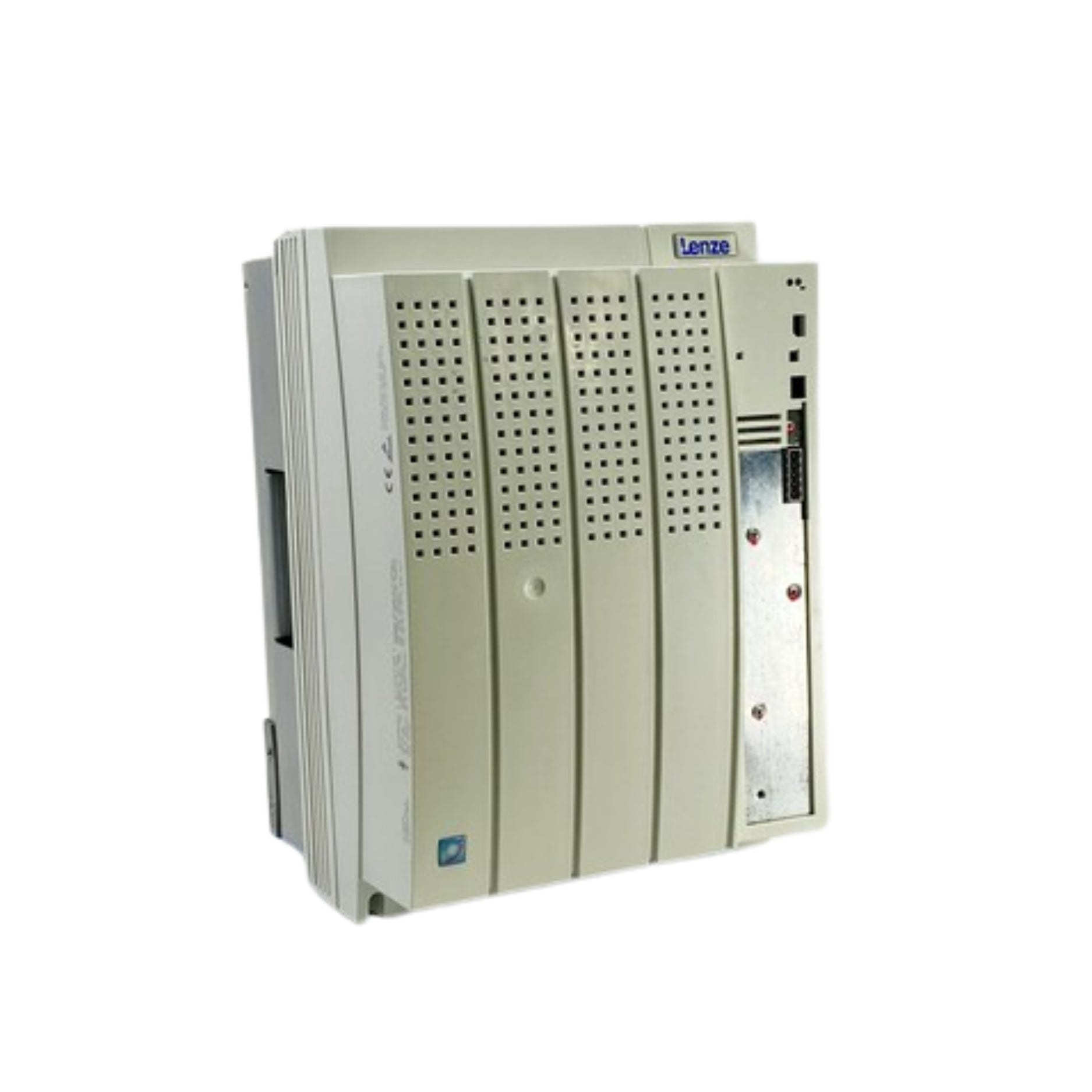

The Lenze EMB9343-E is a high-performance regenerative power supply module designed to recover braking energy from servo drives and feed it back into the power grid, enhancing energy efficiency in industrial applications. With a power rating of 27.4 kW, this module operates on a 3-phase 400/480V AC input and is suitable for use with Lenze's 9300 series drives. Its compact design and robust construction make it ideal for demanding environments where energy savings and reliability are paramount.

Key Features

• Power Rating: 27.4 kW continuous, up to 40.5 kW peak

• Input Voltage: 3-phase 400/480V AC

• Input Frequency: 50/60 Hz

• Output Voltage: 565/680V DC

• Rated Current: 45 A

• Enclosure Rating: IP20

• Cooling Method: Integrated heatsink

• Mounting: Vertical with top power connections

• Compliance: CE, UL, UR, EAC

Technical Specifications

• Catalog Number: EMB9343-E

• Series: 9300

• Apparent Power: 31.2 kVA

• DC Bus Output: 27.0 kW continuous, 40.5 kW peak

• Operating Temperature: 0°C to +50°C

• Storage Temperature: -25°C to +70°C

• Weight: Approximately 13.5 kg

• Dimensions (H × W × D): 720 mm × 280 mm × 258 mm

• Protection Class: IP20

• Installation Altitude: Up to 1000 m without derating

Applications

• Energy recovery in servo drive systems

• Industrial automation requiring regenerative braking

• Applications with frequent acceleration and deceleration cycles

• Systems aiming to reduce energy consumption and operational costs

Why Choose the EMB9343-E

• Energy Efficiency: Converts excess braking energy into usable power, reducing energy costs.

• Compact Design: Saves space in control cabinets with its vertical mounting and top power connections.

• High Performance: Handles substantial loads with continuous and peak power ratings.

• Reliability: Built to operate in demanding industrial environments with a robust design and comprehensive protection features.

Order Now

The Lenze EMB9343-E regenerative power supply module is available and ready to ship. Enhance your system's energy efficiency and performance with this reliable component.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
