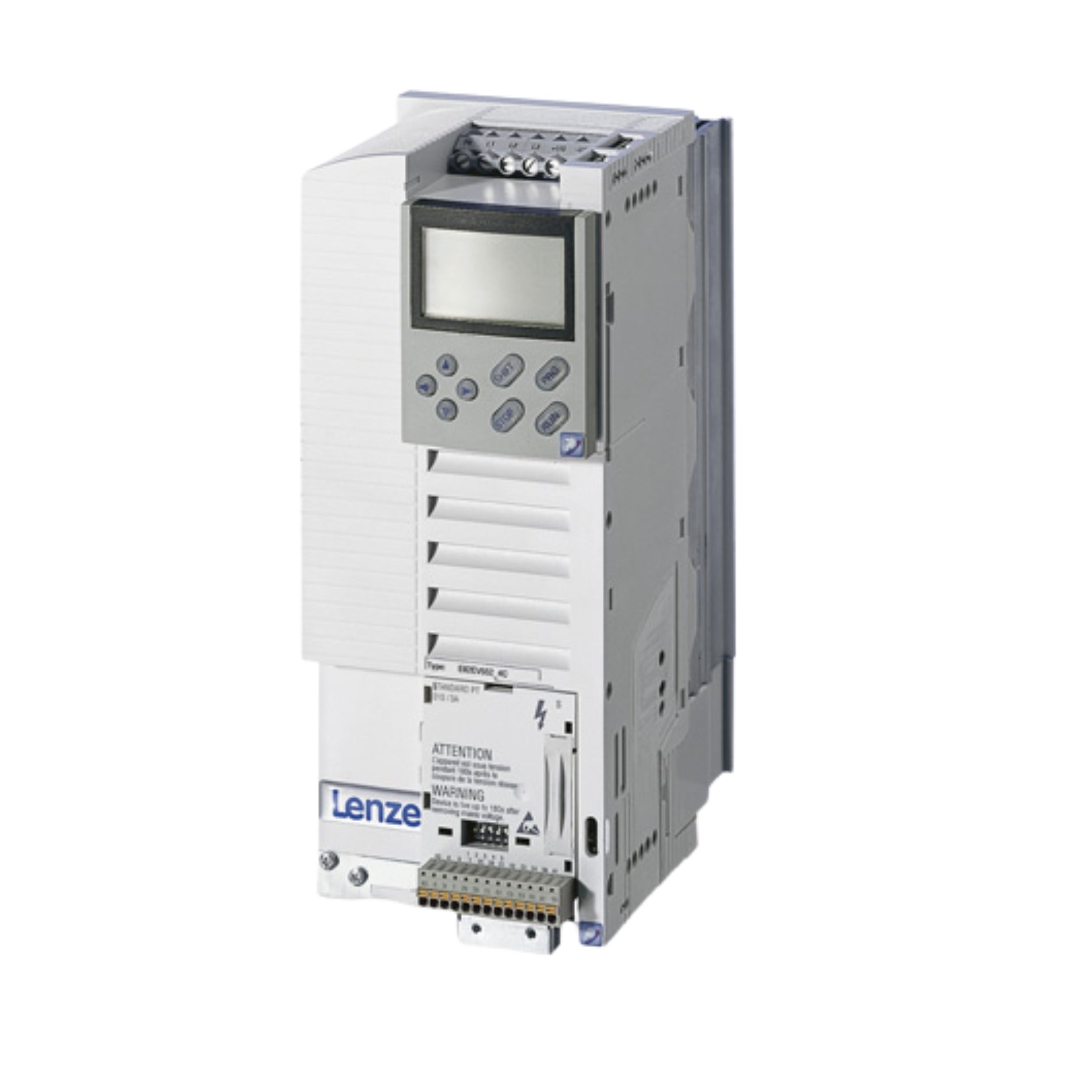

Lenze E82EV222K4C

Lenze E82EV222K4C | 8200 Vector Inverter | 22 kW (30 HP) | 400V | IP20 | Frequency Drive

Overview

The Lenze E82EV222K4C is a powerful frequency inverter from the 8200 Vector series, engineered to control asynchronous motors with a power rating of 22 kW (30 HP). Designed for dynamic, precise motor control, this inverter supports scalable functions via plug-in modules and integrates easily into automation environments. With a 400V three-phase input, IP20 protection, and compact design, it’s ideal for cabinet mounting in industrial machinery and automation systems.

Key Features

• Rated Power: 22 kW (30 HP)

• Input Voltage: 3-phase 400V AC

• Output Frequency: 0–480 Hz

• Control Mode: Sensorless Vector / V/Hz

• Enclosure Type: IP20 (for cabinet installation)

• Integrated Brake Chopper: Yes

• Fieldbus Compatibility: Via optional communication modules (e.g., PROFIBUS, CANopen)

• Cooling: Internal fan

• Mounting: Vertical panel mounting

Technical Specifications

• Model Number: E82EV222K4C

• Series: Lenze 8200 Vector

• Output Current: Approx. 45 A (at 22 kW load)

• Ambient Operating Temperature: 0°C to +45°C (with derating up to +55°C)

• Overload Capacity: 150% for 60 seconds

• Protection Functions: Overvoltage, undervoltage, short-circuit, motor stall, overtemperature

• User Interface: Optional keypad or external modules

• Standards & Certifications: CE, UL, cULus, RoHS

Applications

• Conveyors and hoists

• Packaging machines

• Pumps and fans

• Machine tools and production lines

• General industrial automation systems

Why Choose the E82EV222K4C

• High Power Performance: 22 kW for heavy-duty applications

• Modular Flexibility: Expandable with plug-in function modules

• Precision Control: Vector control ensures smooth, efficient motor performance

• Industrial Ready: IP20 cabinet-mount design with built-in protections

• Global Compatibility: Designed to meet international standards

Order Now

The Lenze E82EV222K4C frequency inverter is available and ships worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
