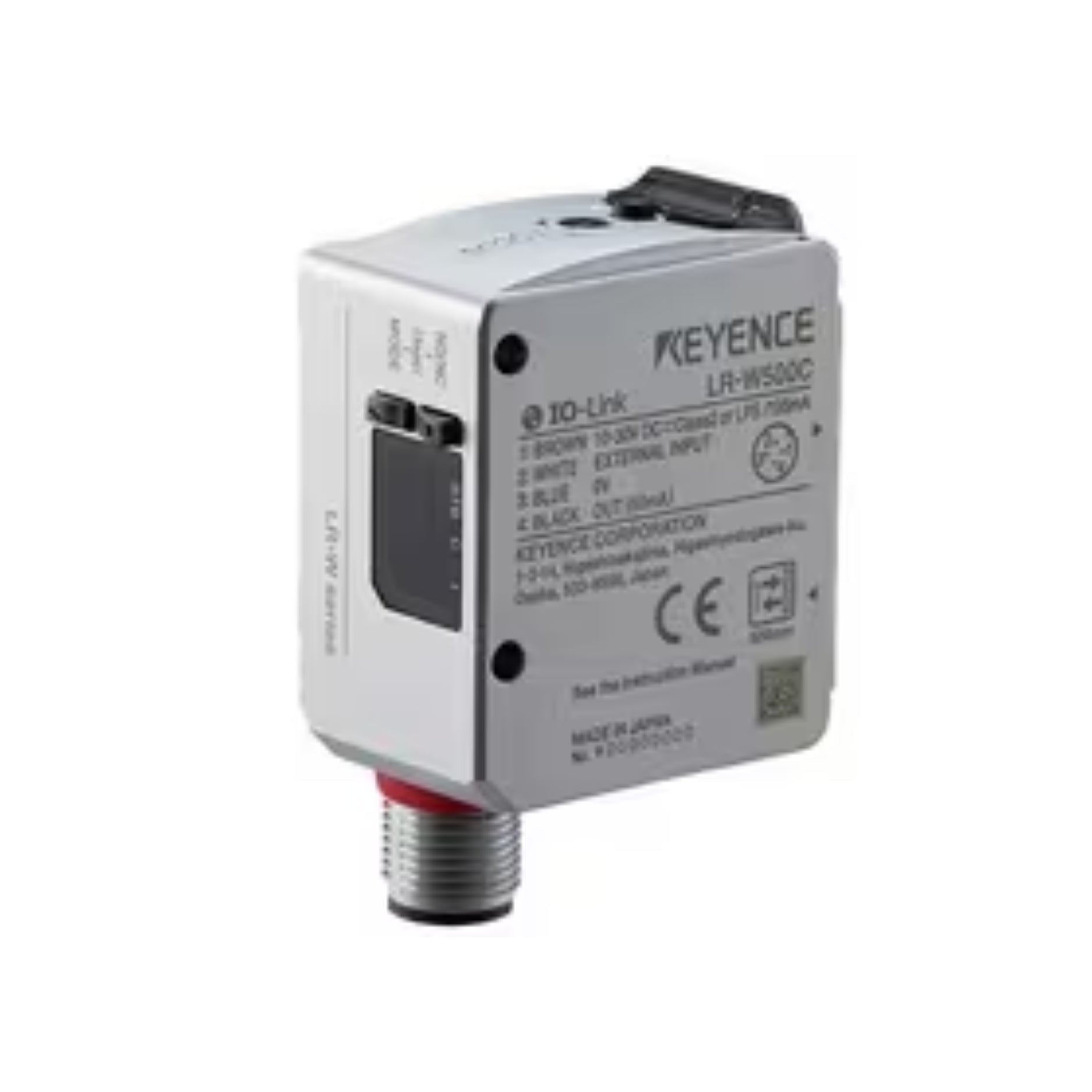

Keyence LR-W500C | Full-Spectrum Reflective Sensor with Long Range

Keyence LR-W500C | Full-Spectrum Reflective Sensor

Overview

The Keyence LR-W500C is a full-spectrum reflective sensor designed for reliable detection of color, material, and object presence at distances up to 500 mm. With its white LED light source and advanced sensing algorithm, it delivers high stability and accuracy, even on challenging surfaces like glossy, dark, or transparent objects.

The LR-W500C features a durable IP65/67-rated housing, easy one-touch teach, and multi-output options, making it an excellent solution for industrial automation, packaging, and inspection systems.

Key Features

• Sensing Range: Up to 500 mm
• Full-Spectrum Detection – Accurately detects color, material, and presence
• White LED Light Source – Enables stable detection across surface types
• Multi-Output Capability – PNP/NPN and analog outputs available
• Fast Response Time – Ideal for high-speed production lines
• One-Touch Teach & OLED Display – Simplifies setup
• IP65/IP67 Rated – Dustproof and waterproof

Technical Specifications

• Model: LR-W500C
• Sensing Method: Reflective
• Sensing Distance: 30 mm to 500 mm
• Light Source: White LED
• Output Type: NPN/PNP + analog (selectable)
• Response Time: 250 µs
• Power Supply: 12–30V DC
• Protection Rating: IP65/IP67
• Operating Temperature: -10°C to +55°C
• Connection Type: M8 or M12 connector

Applications

• Color and Material Differentiation
• Label and Package Detection
• Part Presence Verification
• Glossy or Transparent Object Detection
• High-Speed Sorting Systems

Why Choose the Keyence LR-W500C?

• Detects complex targets with high accuracy
• Easy setup with OLED display and intuitive interface
• Rugged design for harsh industrial environments

Order Now

Brand new. Fast shipping and worldwide delivery available.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
