Keyence LR-TB5000C | 5m Long-Range Reflective Laser Sensor

Keyence LR-TB5000C | 5m Long-Range Reflective Laser Sensor

Overview

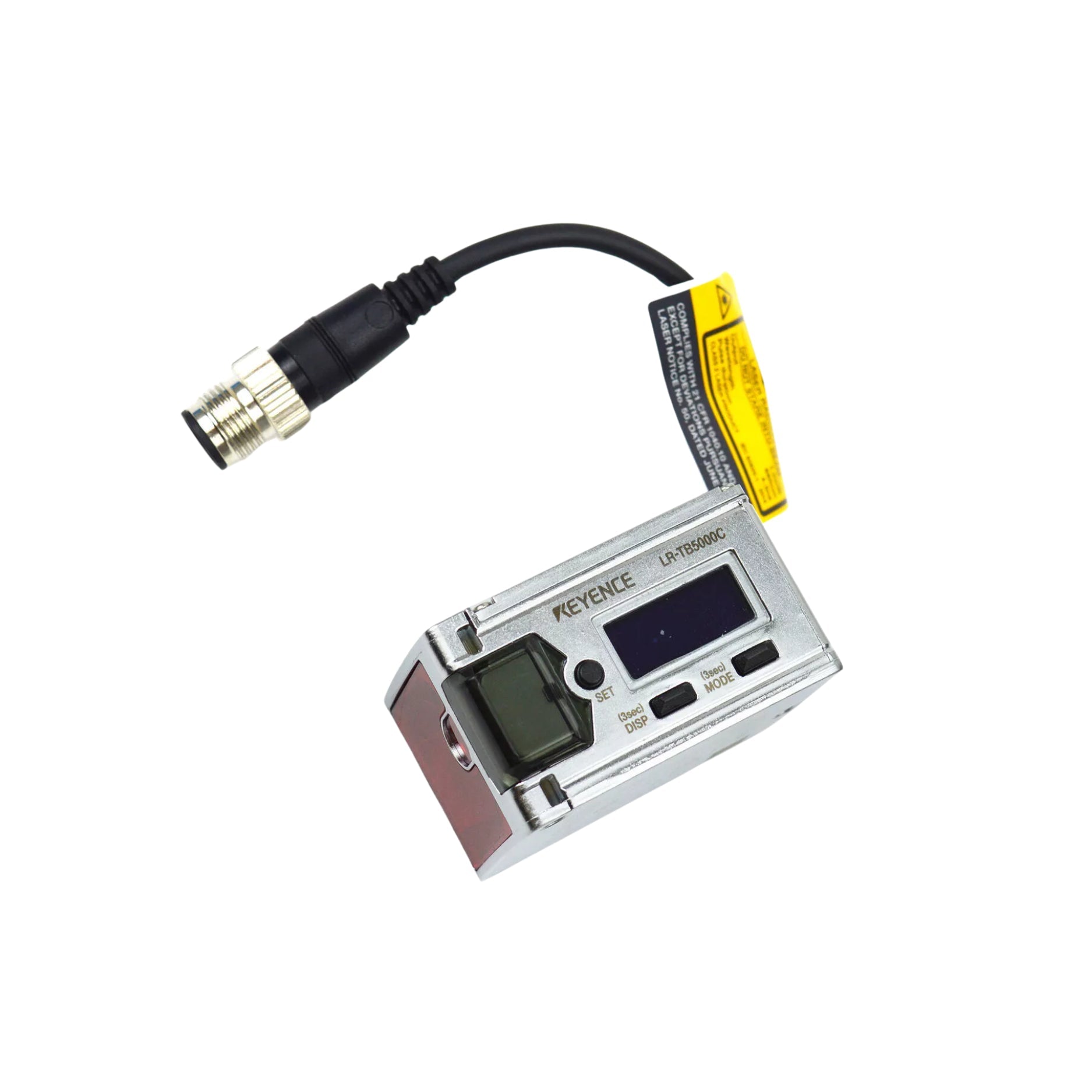

The Keyence LR-TB5000C is a long-range reflective laser sensor capable of detecting objects up to 5000 mm away. Designed with a CMOS sensor and built-in amplifier, it ensures stable detection across a wide variety of surfaces, including dark, shiny, and transparent materials.

Its rugged metal housing, IP65/IP67 rating, and simple one-touch teach function make it perfect for industrial automation, material handling, and large equipment applications.

Key Features

• Sensing Range: Up to 5000 mm
• CMOS Image Sensor + Laser Technology – For accurate, stable detection
• Built-in Amplifier – Reduces installation complexity
• White OLED Display – Easy to read and configure
• High Ambient Light Immunity – Works reliably in bright environments
• IP65/IP67 Protection – Withstands dust and water
• Metal Housing – Durable for harsh industrial settings

Technical Specifications

• Model: LR-TB5000C
• Sensing Method: Reflective
• Sensing Distance: 100 mm to 5000 mm
• Output Type: NPN/PNP switchable
• Response Time: 10 ms
• Power Supply: 12–30V DC
• Protection Rating: IP65/IP67
• Operating Temp: -10°C to +55°C
• Connection: M12 connector

Applications

• Large Conveyor Object Detection
• Pallet and Package Presence Sensing
• Material Level Monitoring
• Machine Position Feedback
• Automated Storage & Retrieval Systems

Why Choose the Keyence LR-TB5000C?

• Long-range performance up to 5 meters
• Handles difficult surfaces with ease
• Built for reliable operation in industrial environments
• Simple setup with intuitive interface

Order Now

Brand new. Fast shipping and worldwide delivery available.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
