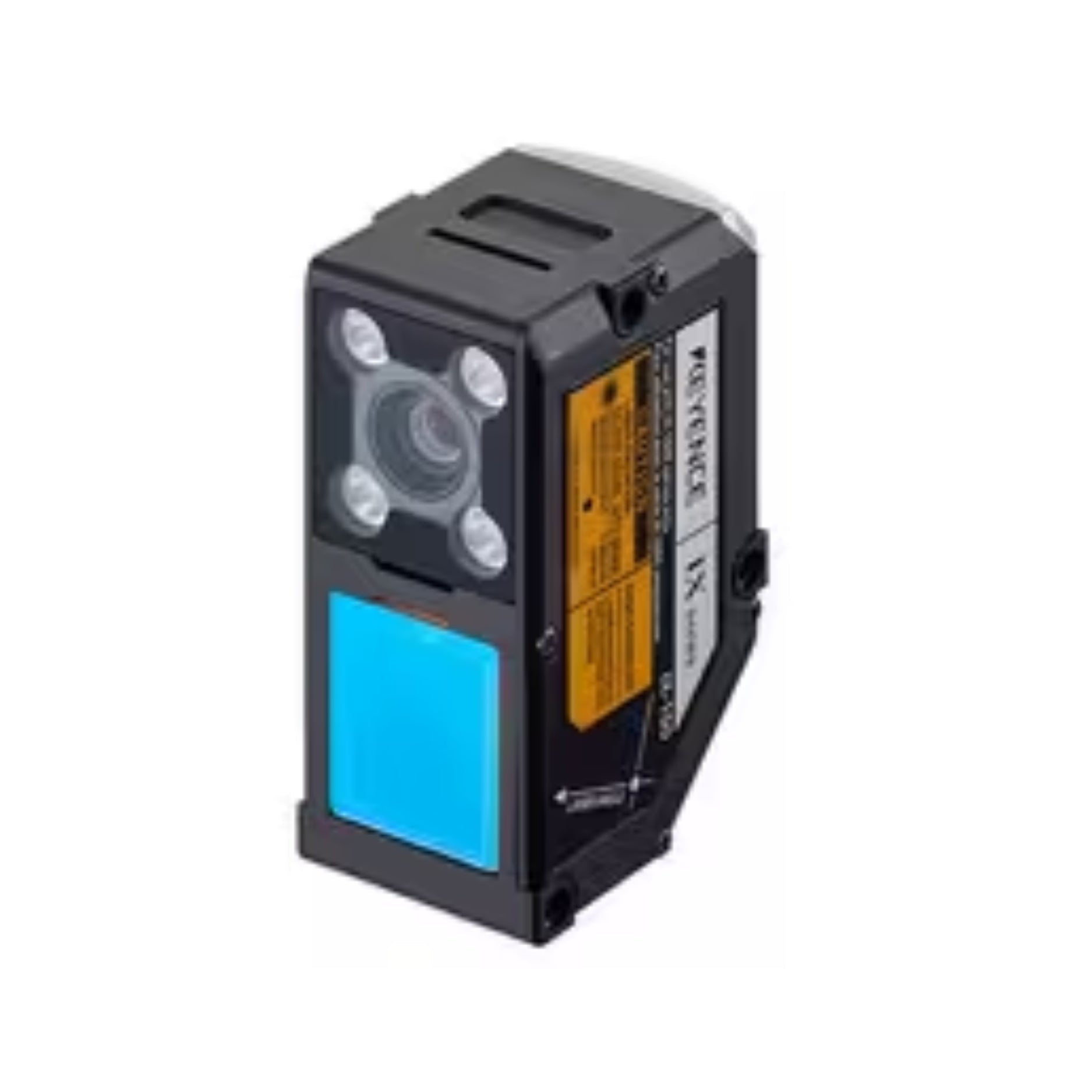

Keyence IX-150 | 2D Vision-Guided Laser Displacement Sensor

Keyence IX-150 | Vision-Guided Laser Displacement Sensor for Industrial Measurement

Overview

The Keyence IX-150 is a vision-guided laser displacement sensor, combining 2D visual recognition with precise height measurement in a single unit. It’s engineered for applications requiring precise part positioning, surface inspection, and height verification, even with positional variation in parts or targets.

Thanks to its built-in camera and laser triangulation system, the IX-150 delivers high accuracy and stable measurements, even on complex shapes, varying surfaces, and moving production lines.

Key Features

• 2D Vision + Laser Sensing – Combines position detection with height measurement
• Flexible Target Positioning – Automatically corrects for misalignment or shift
• Fast Measurement Cycle – Ideal for high-speed production environments
• Simple Setup Interface – Easy to configure with intuitive software tools
• Built-in Camera – Captures image and position data for analysis
• Reliable on Various Materials – Measures even on reflective or curved surfaces

Technical Specifications

• Model: IX-150
• Measurement Range (Z-Axis): Approx. ±15 mm (depending on target and setup)
• Repeatability: High precision (micron-level)
• Camera Resolution: Built-in 2D CMOS sensor
• Light Source: Red semiconductor laser
• Interface: Ethernet, RS-232C, and digital I/O
• Power Supply: 24V DC
• Protection Rating: IP67 (sensor head)
• Operating Temperature: 0°C to 45°C (32°F to 113°F)

Applications

• Height and Step Measurement – Detects presence, gaps, or protrusions
• Surface Inspection – Identifies scratches, dents, or irregularities
• Assembly Verification – Ensures parts are present and correctly positioned
• Position Compensation – Ideal for non-fixtured or variable-position targets
• Automated Inspection Lines – Used in electronics, automotive, packaging, and robotics

Why Choose the Keyence IX-150?

• Combines Vision and Laser Sensing in One Device
• Stable, Precise, and Fast Measurement in Any Condition
• Ideal for Complex Inspection Applications
• Simple to Set Up, Integrate, and Operate

Order Now

Fast shipping and worldwide delivery available.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
