Keyence IX-1000 | Main Amplifier Unit for IX Series Laser Sensors

Keyence IX-1000 | Main Sensor Amplifier Unit for IX Series Laser Displacement Sensors

Overview

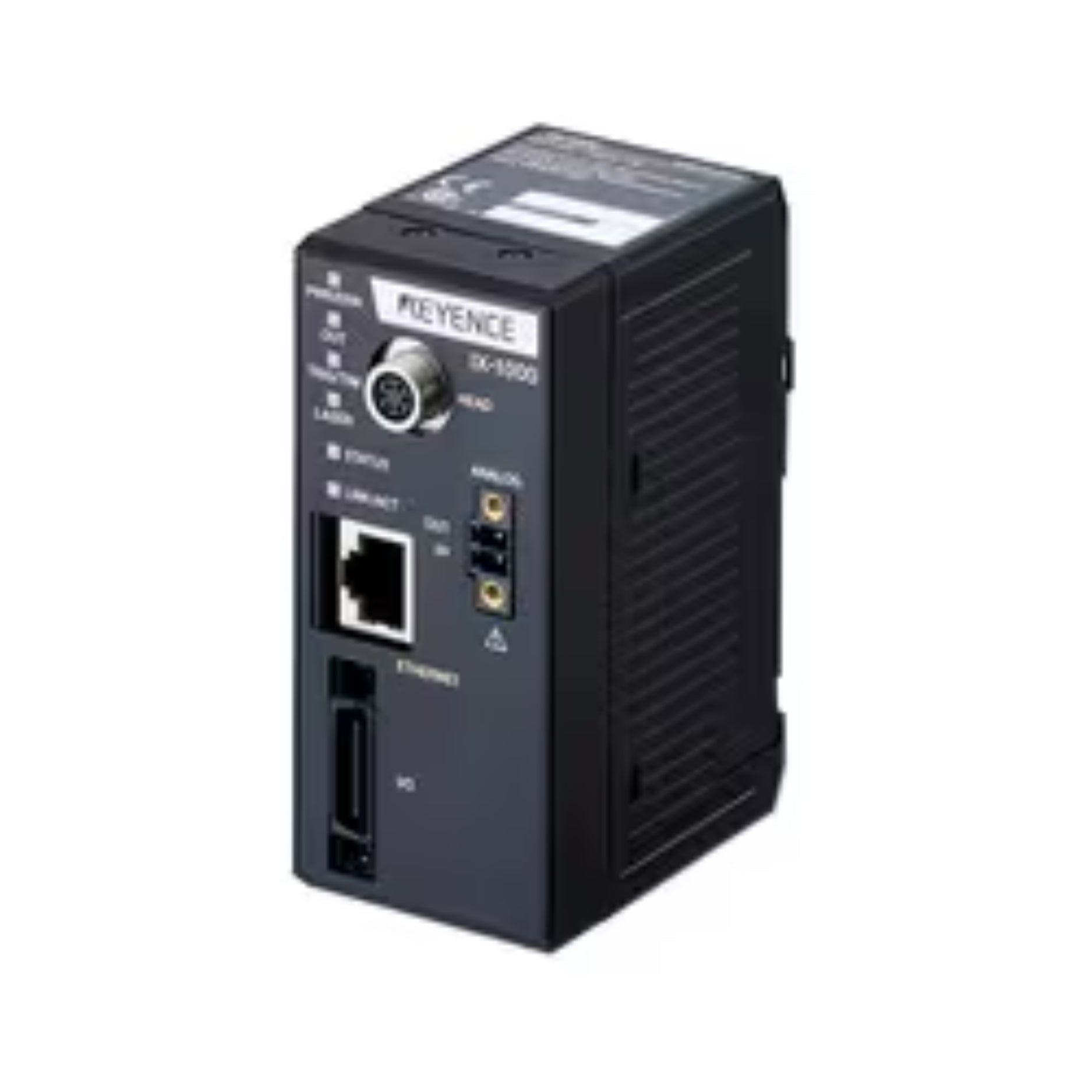

The Keyence IX-1000 is the main amplifier unit for the IX Series laser displacement sensors, enabling non-contact height and position measurement with high speed and precision. Paired with IX sensor heads (like IX-055, IX-105), the IX-1000 controller delivers powerful processing and real-time detection, ideal for automated inspection and inline quality control systems.

With user-friendly setup, multi-head compatibility, and advanced tools like position correction and edge detection, the IX-1000 simplifies complex measurements in dynamic industrial environments.

Key Features

• High-Speed Processing – Real-time analysis for fast-moving lines

• Multi-Sensor Compatibility – Supports various IX sensor heads (e.g., IX-055, IX-105)

• Position Correction Function – Adjusts for shifting or misaligned parts

• Edge, Height & Width Detection – Built-in measurement tools

• Intuitive Setup Interface – Configure via display or software

• Compact DIN Rail Mountable Design – Saves control panel space

• Ethernet & I/O Communication – Easy integration with PLCs and controllers

Technical Specifications

• Model: IX-1000

• Compatible Sensor Heads: IX-055, IX-105, IX-150, etc.

• Sampling Rate: High-speed (depends on head model)

• Display: Built-in or optional remote display

• Output Types: 2 control outputs (NPN/PNP), 1 analog output (selectable), 1 external trigger input

• Communication: Ethernet TCP/IP, EtherNet/IP, PROFINET, RS-232C

• Power Supply: 24 VDC ±10%

• Operating Temperature: 0 to +50°C

• Mounting: DIN rail or panel

• Protection Rating: IP20 (amplifier), IP67 (sensor head)

• Dimensions: Approx. 90 × 30 × 60 mm

Applications

• Height and Step Measurement – Verify height, flatness, or thickness

• Presence/Absence Checks – Detect missing or misplaced parts

• Inline Inspection – Real-time profile and position monitoring

• Automated Assembly Lines – Improve quality control with fast feedback

Why Choose the Keyence IX-1000?

• Versatile and fast controller for IX laser displacement sensors

• User-friendly operation with advanced functionality

• Reliable results in complex and shifting environments

Order Now

In stock and available for fast international shipping.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
