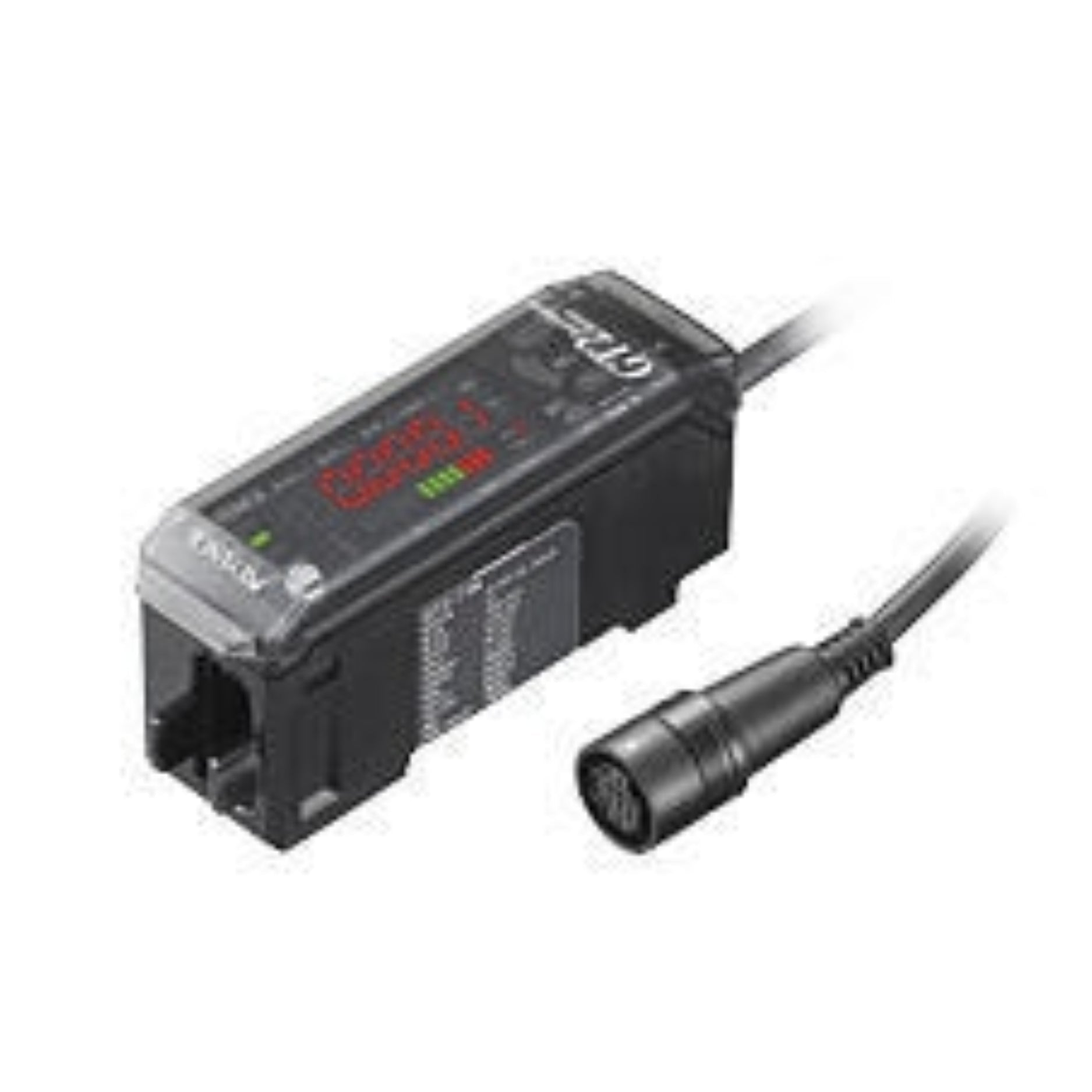

Keyence GT2-71MCP | Digital Contact Sensor Amplifier PNP

Keyence GT2-71MCP | Precision Digital Contact Sensor Amplifier with PNP Output

Overview

The Keyence GT2-71MCP is a high-accuracy digital contact sensor amplifier designed for precision measurement tasks in industrial environments. Featuring a PNP open-collector output and analog output capabilities, this amplifier ensures accurate and reliable data acquisition for various applications.

With a DIN-rail mounting design, the GT2-71MCP offers easy integration into existing systems, supporting up to 14 expansion units for scalable measurement solutions.

Key Features

• High-Accuracy Measurement: Ensures precise data acquisition for critical applications.
• PNP Open-Collector Output: Compatible with PNP input devices for seamless integration.
• Analog Output (4 to 20 mA): Facilitates continuous monitoring and control.
• Expandable Design: Supports up to 14 expansion units for versatile measurement setups.
• DIN-Rail Mounting: Simplifies installation and maintenance.

Technical Specifications

• Model: GT2-71MCP
• Mounting Method: DIN-rail mount
• Output: PNP open-collector
• Analog Output: 4 to 20 mA, with adjustable range
• Power Supply Voltage: 20 to 30 VDC, including 10% ripple (P-P), Class 2
• Power Consumption:
  • Normal: 2,700 mW max. (30 V, 90 mA max.)
  • Eco Mode: 2,200 mW max. (30 V, 73.3 mA max.)
• Display:
  • Measured Value: 6 + 1/2-digit 7-segment LED (red)
  • Other Displays: 2-color, 13-level bar LED (red, green), indicators (red, green)
• Display Range: -199.999.9 to 199.999.9
• Display Resolution: 0.1 μm
• Response Time: Selectable (3 ms to 1,000 ms)
• Environmental Resistance:
  • Ambient Temperature: -10 to +50 °C (14 to 122 °F)
  • Relative Humidity: 35 to 85% RH (No condensation)
  • Vibration Resistance: 10 to 55 Hz, double amplitude 1.5 mm, 2 hours in each of the X, Y, and Z directions
• Material: Main body case: Polycarbonate; Key top: Polyacetal; Front sheet: PET; Cable: PVC
• Weight: Approximately 70 g

Applications

• Precision Thickness Measurement: Ensures material consistency in manufacturing processes.
• Height and Position Detection: Accurate measurement of component placement.
• Deformation and Deflection Monitoring: Detects structural changes in materials under stress.
• Surface Profiling: Assesses surface flatness and texture for quality control.

Why Choose the Keyence GT2-71MCP?

• High Precision: Delivers accurate measurements for critical quality assurance.
• Flexible Integration: PNP and analog outputs cater to diverse system requirements.
• Scalable Design: Expandable to accommodate complex measurement setups.
• Robust Construction: Built to withstand industrial environments.

Order Now

Brand new. Fast shipping and worldwide delivery available.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
