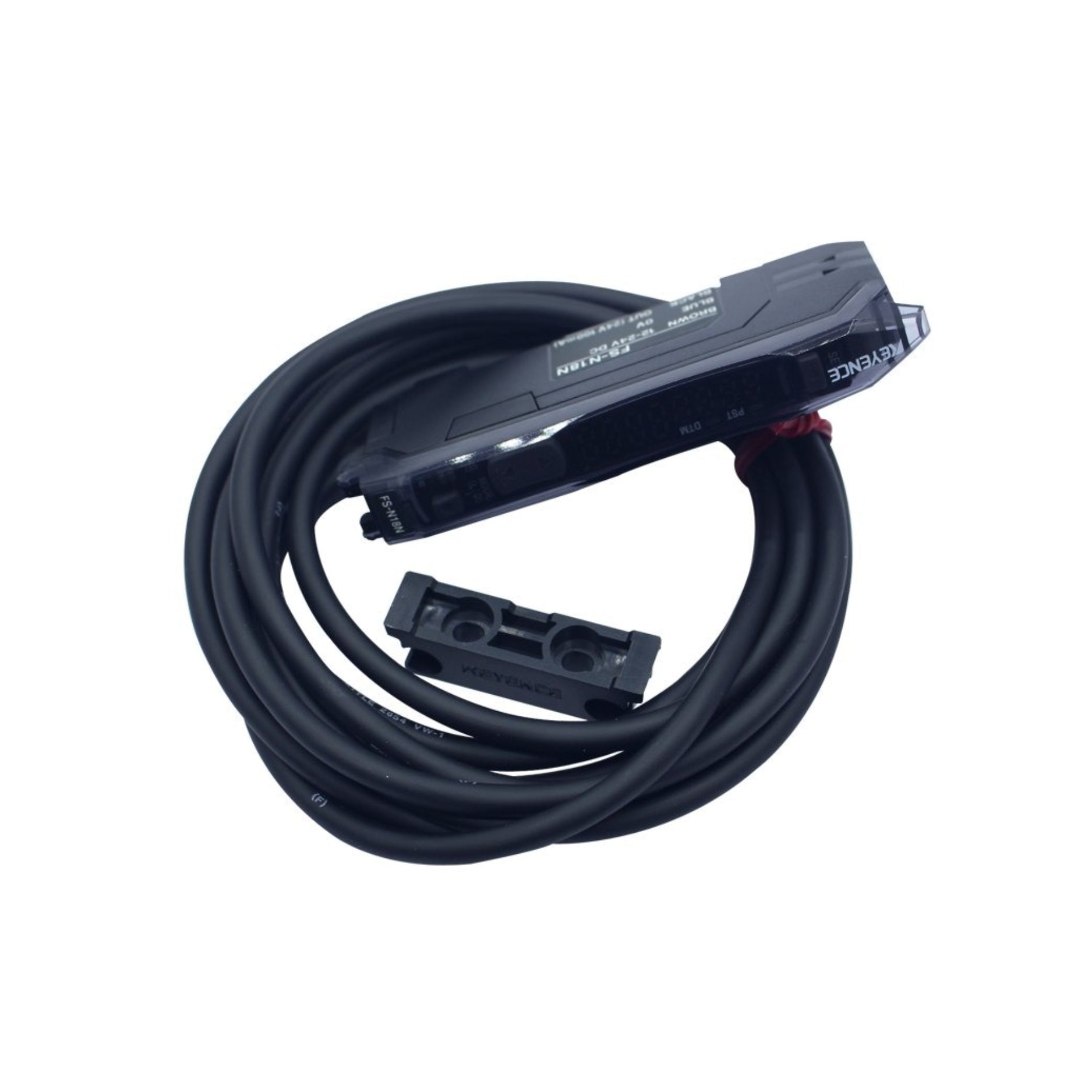

Keyence FS-N41P | Digital Fiber Optic Sensor Amplifier with PNP

Keyence FS-N41P | Digital Fiber Optic Sensor Amplifier with PNP Output

Overview

The Keyence FS-N41P is a digital fiber optic sensor amplifier featuring a PNP open-collector output, designed for high-speed and precise detection in various industrial applications. Its compact design and user-friendly interface make it ideal for integration into existing systems, offering reliable performance and easy setup.

Key Features

• PNP Open-Collector Output – Suitable for systems requiring PNP signal integration.
• High-Speed Response – Adjustable response times as fast as 23 µs for rapid detection.
• Flexible Mounting – Compact design allows for easy installation in space-constrained environments.
• User-Friendly Interface – Simple setup and configuration through intuitive controls.
• Durable Construction – Built to withstand industrial environments with robust materials.

Technical Specifications

• Model: FS-N41P
• Output Type: PNP open-collector, 30 V or less, 100 mA or less per output.
• Response Time: Selectable – 23 µs (S-HSPD), 50 µs (HSPD), 250 µs (FINE), 500 µs (TURBO), 1 ms (SUPER), 4 ms (ULTRA), 16 ms (MEGA), 64 ms (TERA).
• Power Supply: 10 to 30 VDC (including 10% ripple (P-P) or less), class 2 or LPS.
• Power Consumption: During normal operation: 910 mW or less (36 mA or less at 24 V/65 mA or less at 12 V).
• Ambient Temperature: -20 °C to +55 °C (no freezing).
• Light Source: Red, four-element LED (wavelength: 660 nm).
• Protection Circuit: Protection against reverse power connection, output overcurrent, output surge, and reverse output connection.
• Unit Expansion: Up to 16 units (17 units connected in total including the main unit). However, each dual output type will be treated as two expansion units.

Applications

• Presence/Absence Detection – Ensuring components are correctly placed or assembled.
• Positioning Verification – Confirming the accurate positioning of parts during manufacturing.
• Object Counting – High-speed counting of items on production lines.
• Edge Detection – Identifying edges of materials for alignment or processing purposes.

Why Choose the Keyence FS-N41P?

• High-Speed Performance – Capable of detecting fast-moving objects with adjustable response times.
• Easy Integration – Compact size and PNP output make it compatible with various control systems.
• Reliable Operation – Designed to perform consistently in demanding industrial environments.
• Expandable – Supports expansion up to 16 units, allowing for scalable system designs.

Order Now

Brand new. Fast shipping and worldwide delivery available.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
