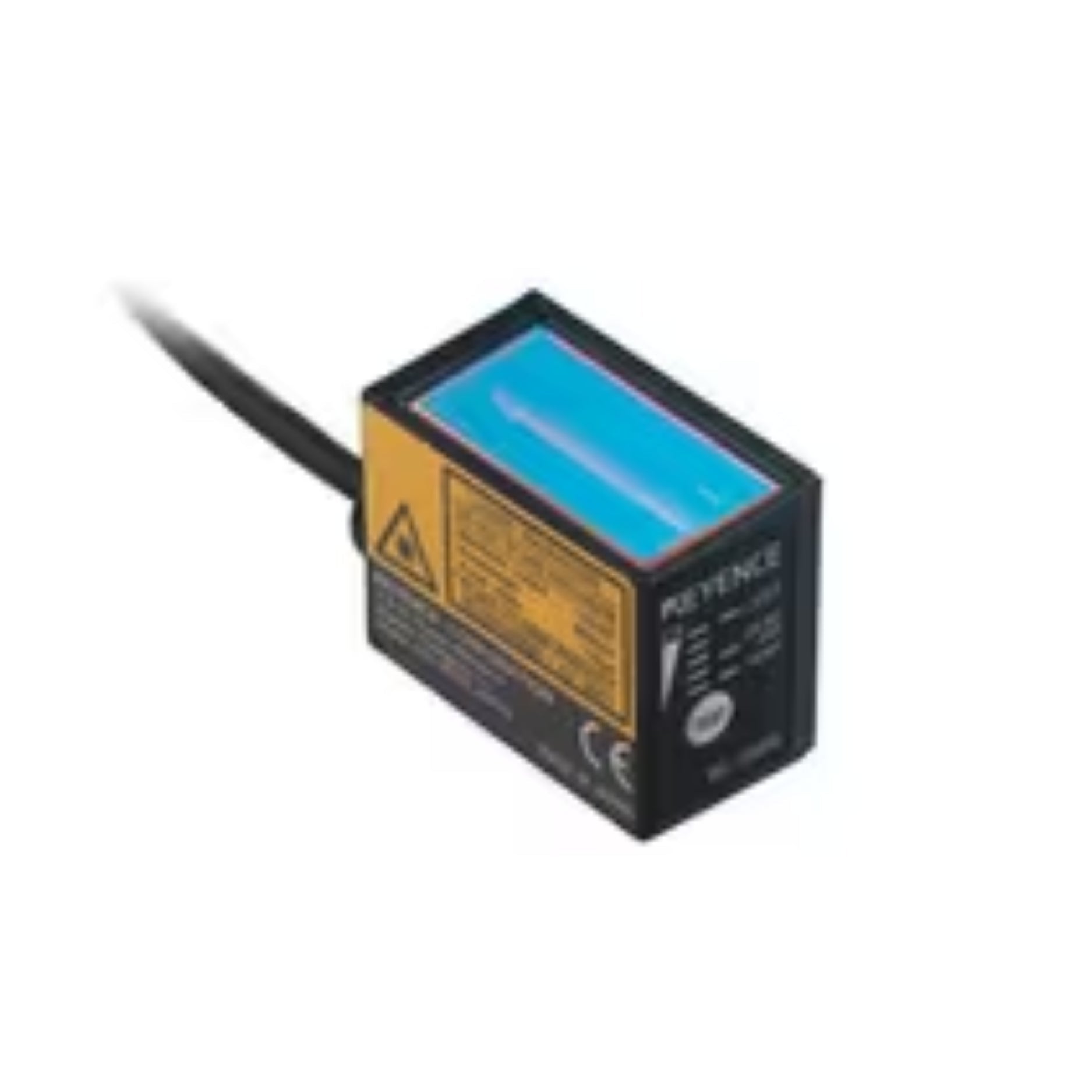

Keyence BL-1301 | Ultra-Compact Barcode Reader, Front Raster

Keyence BL-1301 | Ultra-Small Digital Barcode Reader with Front Raster Scan (Standard Type)

Overview

The Keyence BL-1301 is an ultra-compact digital barcode reader designed for high-speed reading of 1D barcodes using a front raster scan. Engineered for embedded use in space-restricted applications, the BL-1301 delivers fast decoding, high reliability, and easy integration into automated equipment, packaging lines, and OEM machinery.

Despite its small size, the BL-1301 offers exceptional reading performance across a wide range of barcodes—even on curved or irregular surfaces.

Key Features

• Front Raster Scanning – Expands scan area for stable barcode capture

• Ultra-Compact Housing – Easily embedded in small devices or control panels

• High-Speed Reading – Scans up to 500 scans per second

• Wide Barcode Compatibility – Reads Code 39, Code 128, ITF, EAN, UPC, and more

• Automatic Tuning – Adjusts settings for optimal read performance

• Standard Output Formats – Compatible with most PLCs and control systems

• LED Indicators – Visual status for reading, error, and power

• Durable Design – Withstands industrial use with stable read output

Technical Specifications

• Model: BL-1301

• Scan Type: Raster (front scan)

• Supported Barcodes: 1D codes (Code 39, Code 128, EAN, UPC, ITF, etc.)

• Scan Rate: Up to 500 scans/sec

• Read Distance: Approx. 50 mm (varies by barcode size/condition)

• Output Type: RS-232C (standard), or TTL (depending on configuration)

• Power Supply: 10–30 VDC

• Housing Dimensions: Approx. 29 × 39 × 20 mm

• Weight: Approx. 50 g

• Indicators: Status LEDs (Read OK, NG, Power)

• Protection Rating: IP54

• Operating Temperature: 0 to +45 °C

Applications

• OEM and Embedded Systems – Built into compact machinery

• Packaging Lines – Inline barcode tracking and validation

• Electronics Manufacturing – Reads small codes on curved surfaces

• Automation & Robotics – Lightweight sensor for integration into motion systems

Why Choose the Keyence BL-1301?

• Extremely compact yet powerful barcode reader

• Stable performance on high-speed lines

• Easy integration with standard communication options

Order Now

Available for immediate shipping.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
