Schneider Electric ATV310HU22N4E | 2.2 kW Variable Speed Drive – 380–460V AC, 3-Phase, Altivar 310 Series

Overview

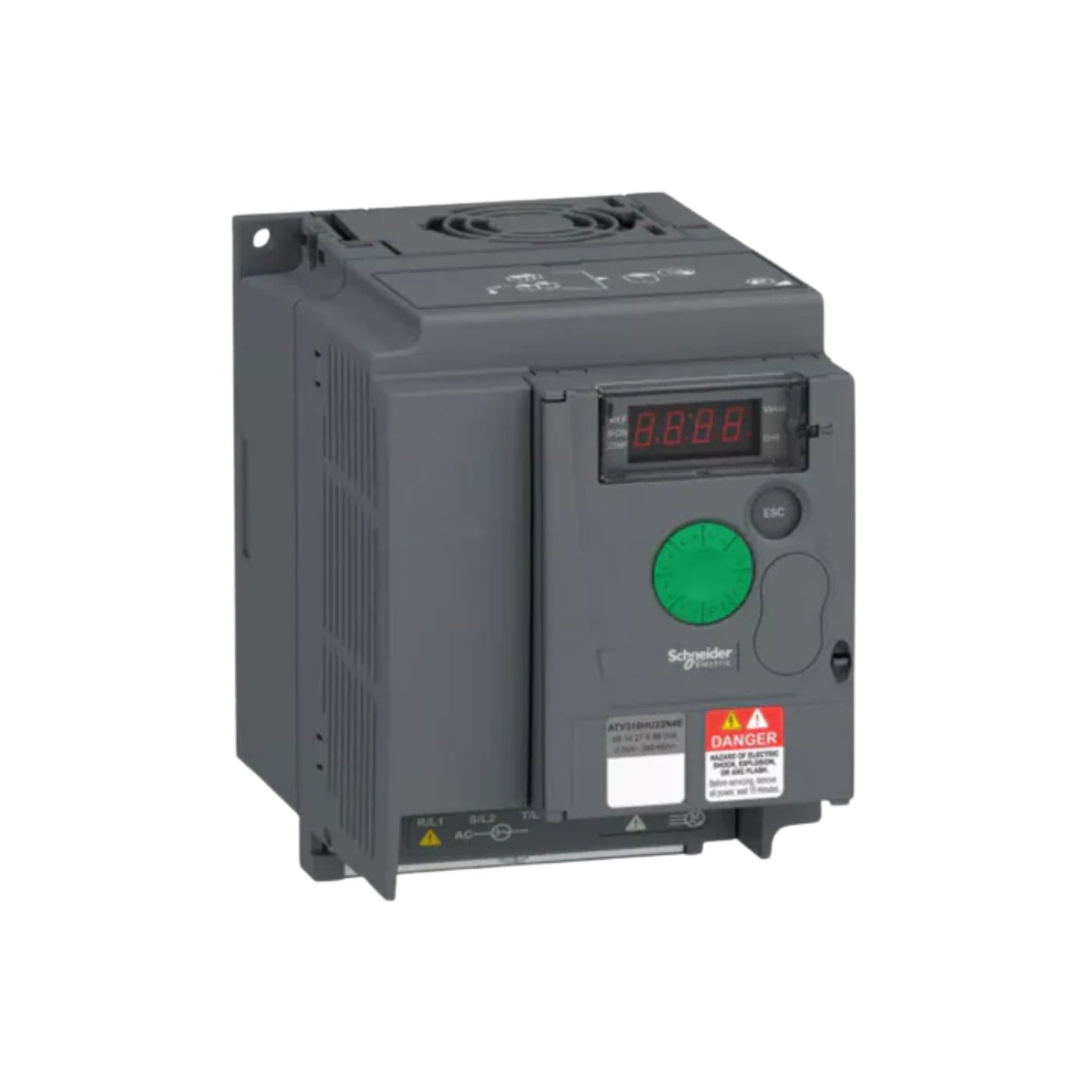

The Schneider Electric ATV310HU22N4E is a 2.2 kW (3 hp) variable speed drive from the Altivar 310 series, designed to control 3-phase asynchronous motors operating at 380–460V AC. It provides energy efficiency, reliable motor control, and is suitable for various industrial applications like pumps, fans, and conveyors.

Key Features

• Power Rating: 2.2 kW (3 hp)

• Input Voltage: 380–460V AC, 3-phase

• Output Frequency: 0.5 to 400 Hz

• Control Type: Sensorless vector control for asynchronous motors

• Overload Capacity:

  • Heavy Duty: 150% of motor rated current for 60 seconds

  • Normal Duty: 110% of motor rated current for 60 seconds

• Integrated EMC Filter: Class C2 for better noise suppression

• Communication Protocols: Modbus RTU, CANopen

• Safety Features: Safe Torque Off (STO)

• Mounting: Compact design suitable for wall or panel mounting

• Protection Rating: IP20

Technical Specifications

• Model Number: ATV310HU22N4E

• Series: Altivar 310

• Input Voltage: 380–460V AC, 3-phase

• Output Power: 2.2 kW (3 hp)

• Rated Output Current:

  • Heavy Duty: 5.0 A

  • Normal Duty: 6.5 A

• Output Frequency: 0.5–400 Hz

• Overload Capacity: 150% for 60 seconds (Heavy Duty)

• Control Inputs: 6 configurable digital inputs, 1 analog input

• Control Outputs: 3 discrete outputs (2 open collector, 1 relay)

• Cooling Method: Forced convection

• Operating Temperature: -10°C to +50°C

• Dimensions (H x W x D): Approx. 232 x 150 x 172 mm

• Weight: Approx. 3.7 kg

• Certifications: CE, UL, CSA, EAC, RCM

Applications

• Pumps and Fans: Ideal for controlling flow and pressure with energy savings

• Conveyors: Smooth ramp-up and ramp-down for materials handling

• Mixers and Agitators: Stable torque control for efficient mixing

• HVAC Systems: Energy-efficient operation in heating, ventilation, and air conditioning

• General Machinery: Versatile motor control for a wide range of industrial applications

Why Choose Schneider ATV310HU22N4E?

• Energy Efficiency: Optimizes motor performance to reduce overall energy consumption

• Compact and Robust Design: Space-saving with high performance and durability

• Flexible Integration: Supports Modbus RTU and CANopen communication for system integration

• Safety Features: Safe Torque Off function ensures machine and operator safety

Order Now

Available for immediate worldwide shipping. Contact us for accessories, spare parts, and technical support to ensure seamless integration into your system.
