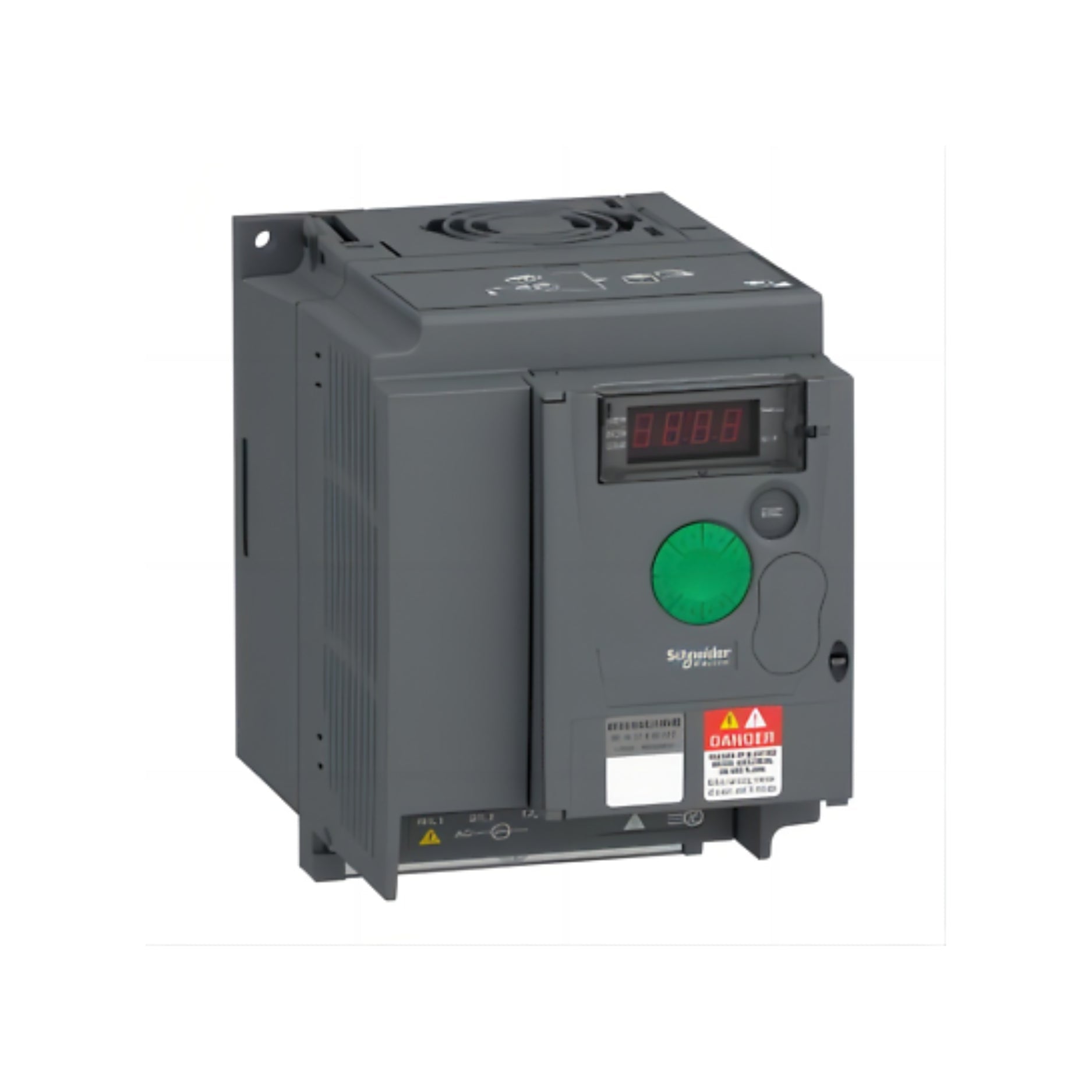

Schneider Electric ATV310HU15N4E | 1.5 kW Variable Frequency Drive – 3-Phase, 380–460V AC, Altivar 310 Series

Overview

The Schneider Electric ATV310HU15N4E is a 1.5 kW (2 hp) variable frequency drive from the Altivar 310 series, built to control three-phase motors with high efficiency and precision. Suitable for general industrial machinery, it offers reliable performance in compact applications.

Key Features

• Power Rating: 1.5 kW (2 hp)

• Input Voltage: 380–460V AC, 3-phase

• Output Frequency: 0.5 to 400 Hz

• Motor Control: Sensorless vector for asynchronous motors

• Overload Capacity:

  • Heavy Duty: 150% for 60 sec

  • Normal Duty: 110% for 60 sec

• Communication: Modbus RTU (RJ45)

• Built-in Functions:

  • PID control

  • Multi-speed

  • Flying start

  • Auto-tuning

• EMC Filter: Integrated C2 class

Technical Specifications

• Model Number: ATV310HU15N4E

• Series: Altivar 310

• Input Voltage: 380–460V AC ±10%

• Output Current: 4.1 A (Heavy Duty)

• Output Frequency: 0.5–400 Hz

• Cooling: Forced convection

• Protection Degree: IP20

• Mounting: Wall or panel

• Ambient Temperature: -10°C to +50°C

• Dimensions (H x W x D): Approx. 143 mm x 104 mm x 151 mm

• Weight: Approx. 1.9 kg

• Certifications: CE, UL, CSA, EAC

Applications

• Pumps and Fans: Energy-saving and smooth control

• Conveyors: Controlled acceleration and deceleration

• Agitators and Mixers: Stable speed under varying loads

• General Equipment: Ideal for compact industrial machines

Why Choose ATV310HU15N4E?

• Reliable Performance: Designed for demanding industrial tasks

• Energy Efficiency: Cuts power usage with smart motor control

• Compact Size: Saves space in control cabinets

• Simple Setup: Easy to configure and integrate with Modbus

Order Now

In stock and ready for fast global delivery. Contact us for filters, braking units, and accessories to complete your installation.
