Schneider Electric ATV212HD30N4 | 30 kW Variable Frequency Drive

Schneider Electric ATV212HD30N4 | 30 kW Variable Frequency Drive – 3-Phase, 380–480V AC, Altivar 212 Series

Overview

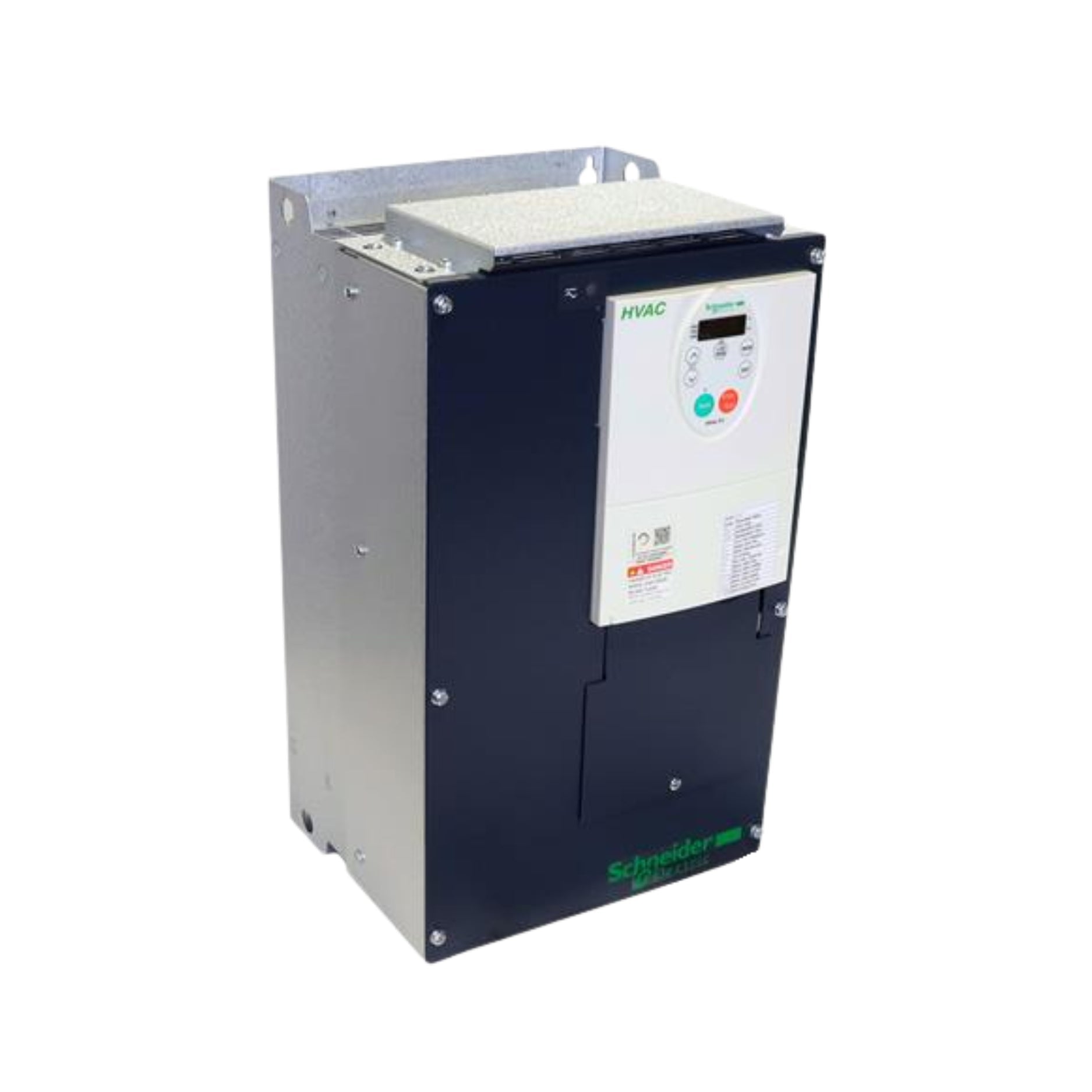

The ATV212HD30N4 is a 30 kW (40 hp) variable frequency drive from Schneider Electric’s Altivar 212 series, optimized for HVAC and pumping systems. It supports a 380–480V AC 3-phase input and offers advanced energy-saving features, making it ideal for building management and fluid control applications.

Key Features

• Power Rating: 30 kW (40 hp)

• Input Voltage: 380–480V AC, 3-phase

• Output Frequency: 0.5 to 200 Hz

• Control Type: V/F control optimized for fan and pump applications

• Integrated Functions:

  • PID control

  • Sleep/wake mode

  • Auto energy optimizer

• User Interface: Integrated keypad and LCD display

• Communication Options: Modbus, BACnet, Metasys N2, Apogee FLN

• Built-in EMC Filter: Category C2 compliant

• Overload Capacity: 120% for 60 seconds

Technical Specifications

• Model Number: ATV212HD30N4

• Series: Altivar 212

• Input Voltage: 3-phase 380–480V AC

• Output Current: 61 A

• Output Frequency: 0.5 to 200 Hz

• Frequency Resolution: 0.1 Hz

• Cooling Method: Forced convection

• Protection Rating: IP21 (with cover), IP20 (without cover)

• Operating Temp.: -10°C to +50°C (with derating above 40°C)

• Mounting: Wall or panel

• Dimensions (H x W x D): Approx. 584 mm x 280 mm x 265 mm

• Weight: Approx. 20 kg

• Certifications: CE, UL, CSA, RoHS

Applications

• HVAC Systems: Precise control of fans, chillers, and air handlers

• Pumping Stations: Efficient flow regulation in water systems

• Cooling Towers: Energy-efficient speed modulation

• Commercial Buildings: Optimized energy use in BMS-integrated environments

Why Choose ATV212HD30N4?

• Energy-Saving Features: Lower consumption with intelligent optimization

• HVAC-Focused Control: Ideal for fan and pump-specific functions

• Integrated Protocols: Communicates easily with building systems

• Robust Design: Reliable operation in demanding conditions

Order Now

Available for immediate worldwide shipping. Contact us for matching filters, accessories, or replacement parts for your VFD application.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
