Schneider Electric ATV212HD11N4 | 11 kW (15 HP) HVAC Variable

Schneider Electric ATV212HD11N4 | Altivar 212 HVAC Variable Speed Drive

Overview

The Schneider Electric ATV212HD11N4 is an 11 kW (15 HP) variable speed drive from the Altivar 212 series, designed specifically for HVAC applications including pumps, fans, and compressors. Operating on a 380–480V 3-phase input, it provides energy-efficient motor control with integrated EMC filtering, embedded Modbus, and BACnet communication, making it ideal for building automation systems.

Key Features

• Power Rating: 11 kW (15 HP)

• Input Voltage: 380–480V, 3-phase

• Output Frequency: 0.5 to 200 Hz

• Application-Specific Design: Optimized for HVAC systems

• Control Modes:

  • V/f (voltage/frequency)

  • Automatic Energy Optimization (AEO)

• Integrated EMC Filter: Reduces interference (C1/C2 class)

• Communication Protocols:

  • Embedded Modbus

  • Embedded BACnet MS/TP

  • Optional: LonWorks, Metasys N2, APOGEE FLN

• Display Interface: Optional remote keypad for configuration

Technical Specifications

• Model: ATV212HD11N4

• Series: Altivar 212

• Nominal Output Current: 24 A

• Max Transient Current: 36 A (for 60 seconds)

• Switching Frequency: 4 kHz (default)

• Protection Rating: IP21 (standard), optional IP55 enclosures

• Operating Temperature: -10°C to +50°C without derating

• Altitude: Up to 1000 m without derating

• Mounting: Wall or panel

• Dimensions (W x H x D): Approx. 220 mm x 350 mm x 232 mm

• Weight: Approx. 7.5 kg

Applications

• HVAC Fans and Blowers

• Water Pumps and Circulators

• Air Handling Units (AHUs)

• Building Management Systems (BMS)

Why Choose the Schneider Electric ATV212HD11N4?

• Energy-Efficient HVAC Control

• Seamless BMS Integration with BACnet

• Compact and Reliable Design

• Tailored Features for Fan and Pump Applications

Order Now

Fast shipping and worldwide delivery available.

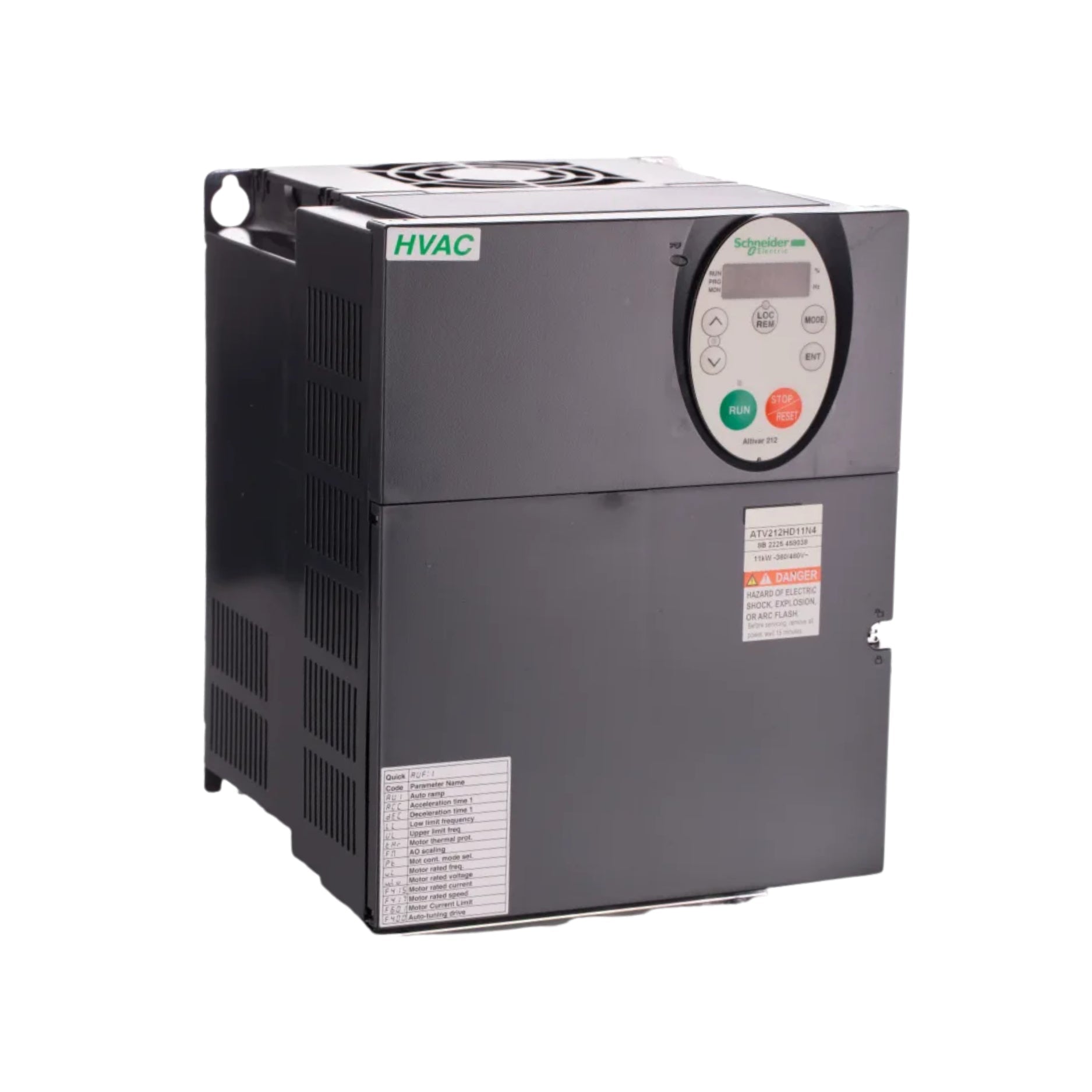

SEO-Optimized Alternative Text for Image (125 Characters or Less):

Schneider Electric ATV212HD11N4 HVAC drive, 11 kW (15 HP), 380–480V, with EMC filter and BACnet for energy-efficient building automation.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
