Schneider ATV930U55N4 | 5.5 kW VSD 380–480V 3-Phase with Braking

Schneider Electric ATV930U55N4 | Altivar Process ATV930 Variable Speed Drive

Overview

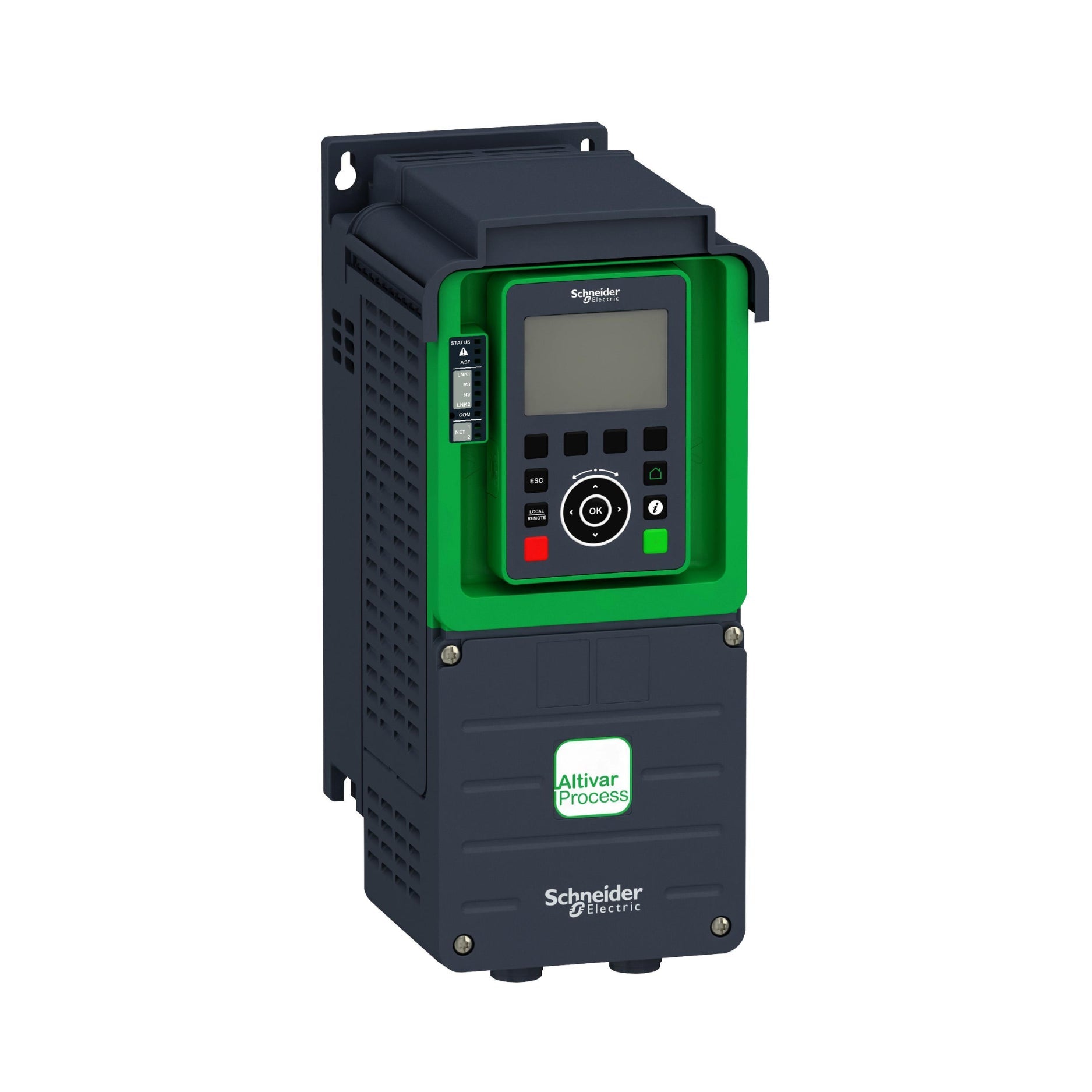

The Schneider Electric ATV930U55N4 is a high-performance variable speed drive from the Altivar Process ATV930 series, engineered for precision motor control of asynchronous and synchronous motors. With a 5.5 kW (7.5 HP) power rating and a 380–480V 3-phase input, it features an integrated braking unit and IP21 protection, making it ideal for demanding industrial applications.

Key Features

• Power Rating: 5.5 kW (7.5 HP)

• Input Voltage: 380–480V, 3-phase

• Output Frequency: 0.1 to 599 Hz

• Control Modes:

  • Sensorless Flux Vector Control (SFVC)

  • Flux Vector Control with Encoder (FVC)

  • Voltage/Frequency (V/f)

• Integrated Braking Unit: Yes

• Embedded Communication: Ethernet/IP, Modbus TCP

• Built-in Functions: Pump protection, PID control, energy saving

Technical Specifications

• Model: ATV930U55N4

• Series: Altivar Process ATV930

• Line Current: 10.4 A (380V normal duty), 9.1 A (480V normal duty)

• Switching Frequency: 2–16 kHz (default 4 kHz)

• Cooling Method: Fan with forced convection

• Protection Rating: IP21

• Operating Temperature: -15°C to +50°C (no derating)

• Dimensions (W x H x D): 144 mm x 350 mm x 203 mm

• Weight: 4.7 kg

Applications

• Pumps and Fans

• Conveyors and Mixers

• Water/Wastewater Systems

• Industrial Process Automation

Why Choose the Schneider ATV930U55N4?

• Integrated Braking Unit for Efficient Deceleration

• Advanced Connectivity via Ethernet/IP and Modbus TCP

• Designed for Harsh Environments with IP21 Protection

• Energy-Saving Features and Embedded Functions for Process Control
