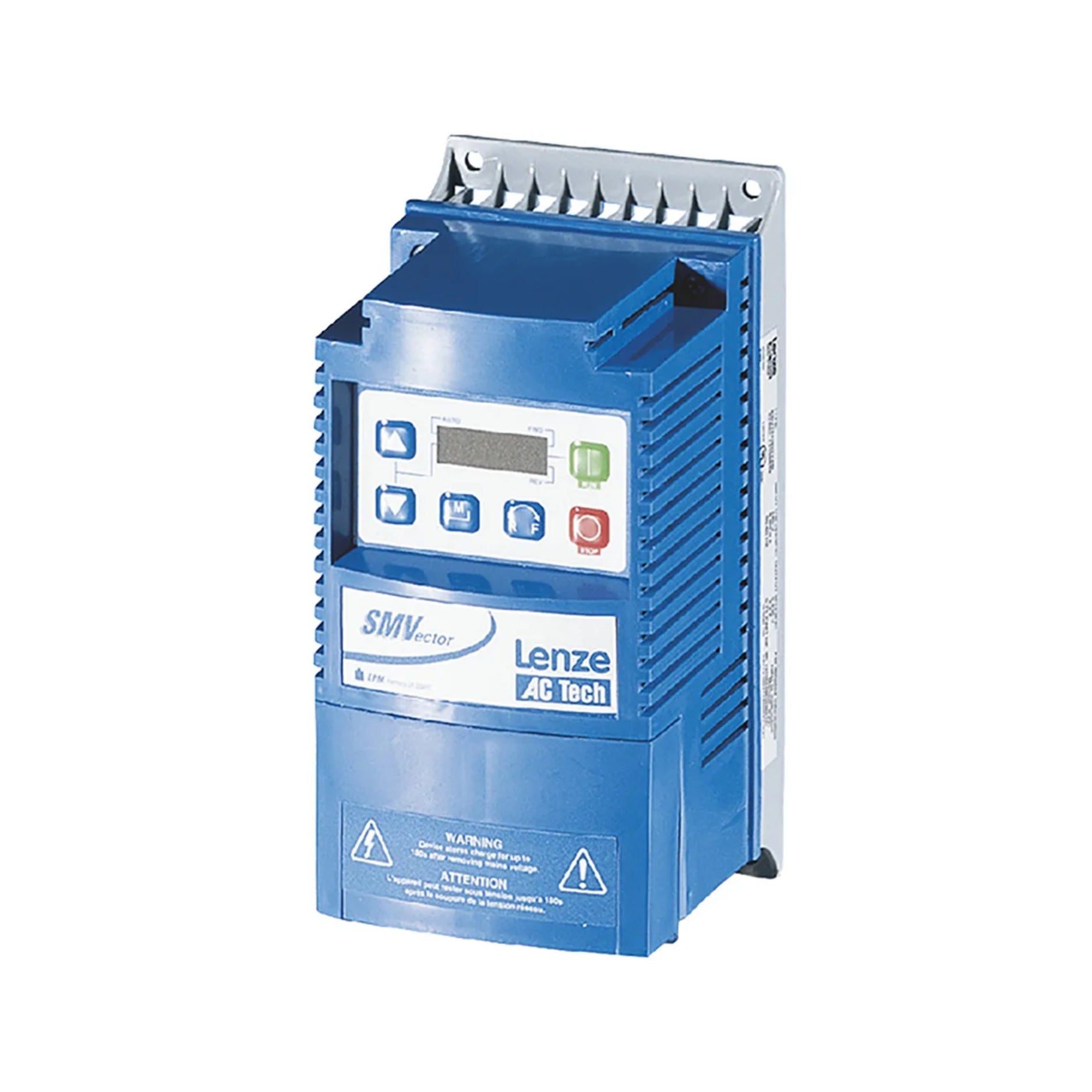

Lenze ESV751N01SXB | 0.75 kW VFD, 1-Phase, 120 V, NEMA 1 Enclosure

Lenze ESV751N01SXB | 0.75 kW VFD, 1-Phase, 120 V, NEMA 1 Enclosure

Overview

The Lenze ESV751N01SXB is a 0.75 kW (1 HP) variable frequency drive from the SMVector series, built for simplicity and performance in low-voltage applications, offering precise control in a compact NEMA 1 enclosure.

Key Features

• Power Output: 0.75 kW (1 HP)

• Input Voltage: 1-phase, 120 V AC

• Output Voltage: 3-phase, 0–230 V

• Control Type: V/f, Enhanced V/f, and Sensorless Vector

• Integrated Keypad: Yes

• Enclosure Rating: NEMA 1 (IP31)

• Communication Options: Modbus (standard), others via modules

Technical Specifications

• Frequency Range: 0–500 Hz

• Overload Capacity: 150% for 60 seconds

• Ambient Temp: -10°C to +45°C (no derating)

• Cooling: Integral fan cooling

• Digital & Analog I/O: Programmable inputs/outputs

• Dimensions (H x W x D): Approx. 180 mm x 100 mm x 140 mm

• Weight: Approx. 1.4 kg

• Certifications: CE, cUL, RoHS compliant

Applications

• HVAC systems

• Conveyors and pumps

• Small machinery

• OEM equipment

• Fan and blower systems

Product Description

The Lenze ESV751N01SXB is a reliable and compact drive solution for light-duty 120 V applications, offering robust performance, flexible control modes, and quick setup in industrial or commercial environments.

Why Choose Lenze ESV751N01SXB?

• Compact and cost-effective solution

• Easy installation and parameterization

• NEMA 1 protection for indoor use

• Flexible control and expansion options

Order Now

Choose the Lenze ESV751N01SXB for dependable motor control in low-voltage applications—ideal for OEMs and small automation systems.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
