Schneider Electric ATV630D11N4
Condition: New
Warranty: 1 Year
Available
We deliver worldwide
sales@ddpartssolution.com
📞 +1 (689) 275-3558

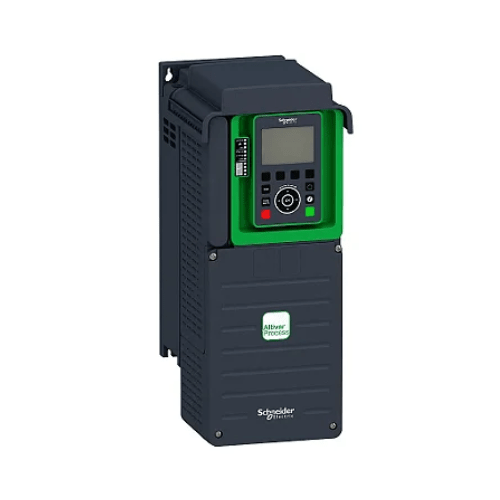

Schneider Electric ATV630D11N4 | Altivar Process ATV630 Variable Speed Drive
Overview
The Schneider Electric ATV630D11N4 is an 11 kW (15 HP) variable speed drive from the Altivar Process ATV630 series, engineered for energy-efficient motor control in demanding industrial environments. Operating on a 380–480V 3-phase supply, it supports both asynchronous and synchronous motors, with advanced process features, integrated safety, and built-in Ethernet communication.
Key Features
- Power Rating: 11 kW (15 HP)
- Input Voltage: 3-phase, 380–480V ±10%
- Integrated EMC Filter: Reduces electromagnetic interference
-
Motor Control Modes:
- Voltage/Frequency (V/f)
- Sensorless Flux Vector Control (SFVC)
- Permanent Magnet Motor Control
- Output Frequency: Adjustable from 0.1 to 599 Hz
-
Integrated Communications:
- Ethernet/IP
- Modbus TCP
- Embedded Web Server for monitoring and diagnostics
- Integrated Safety Function: Safe Torque Off (STO)
- Advanced Protection: Overload, overvoltage, short-circuit, thermal protection
Technical Specifications
- Model: ATV630D11N4
- Series: Altivar Process ATV630
- Motor Power: 11 kW (15 HP)
- Nominal Output Current: 22 A
- Max Transient Current: 33 A (for 60 seconds)
- Switching Frequency: Default 4 kHz (adjustable from 2.5 to 8 kHz)
- Protection Rating: IP21
- Operating Temperature: -15°C to +50°C without derating
- Altitude: Up to 1000 m without derating
- Mounting: Wall or panel
- Dimensions (W x H x D): 215 mm x 600 mm x 284 mm
- Weight: Approx. 20 kg
Applications
- Pumps & Fans: HVAC systems, water treatment, and fluid control
- Material Handling: Conveyor and transport systems
- Process Industries: Speed and pressure regulation in continuous systems
- Oil & Gas, Utilities: Motor control in harsh and remote environments
Why Choose the Schneider Electric ATV630D11N4?
- High Energy Efficiency for variable torque applications
- Built-in Ethernet & Web Server for remote access and diagnostics
- Flexible Motor Control for multiple motor types
- Industrial-Grade Reliability for continuous operation
