Schneider Electric ATV340D30N4E | 30 kW (40 HP) Variable Speed

Schneider Electric ATV340D30N4E | Altivar Machine ATV340 Variable Speed Drive

Overview

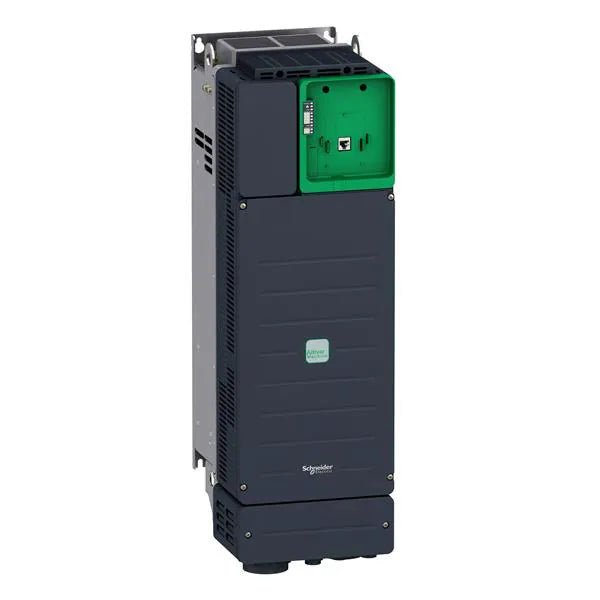

The Schneider Electric ATV340D30N4E is a 30 kW (40 HP) high-performance variable speed drive from the Altivar Machine ATV340 series, built for controlling asynchronous and synchronous motors in demanding industrial applications. Designed with integrated Ethernet communication, EMC filtering, and advanced safety features, it is perfect for OEMs and system integrators looking for precision, reliability, and real-time performance.

Key Features

• Power Rating: 30 kW (40 HP)

• Input Voltage: 3-phase, 380–480V ±10%

• Motor Types: Asynchronous and permanent magnet

• Output Frequency: Adjustable from 0.1 to 599 Hz

• Control Modes:

  • V/f (Voltage/Frequency)

  • Sensorless Flux Vector Control (SFVC)

  • Flux Vector Control with Encoder (FVC)

• Integrated Safety:

  • Safe Torque Off (STO)

  • Expandable safety functions (SS1, SLS, etc. with optional modules)

• Communication Protocols:

  • Embedded Modbus TCP and EtherNet/IP

  • Optional cards: CANopen, Profibus DP, Profinet, etc.

• Diagnostics: Built-in web server for remote access, monitoring, and maintenance

Technical Specifications

• Model: ATV340D30N4E

• Series: Altivar Machine ATV340

• Motor Power: 30 kW (40 HP)

• Nominal Output Current: 61 A

• Max Transient Current: 91.5 A (60 seconds)

• Switching Frequency: Default 4 kHz (adjustable 2.5–16 kHz)

• Protection Rating: IP21

• Cooling: Integrated fan

• Operating Temperature: -15°C to +50°C without derating

• Altitude: Up to 1000 m without derating

• Mounting: Wall or panel

• Dimensions (W x H x D): Approx. 275 mm x 600 mm x 310 mm

• Weight: Approx. 29 kg

Applications

• Packaging Machines

• Material Handling & Conveyors

• Pumps & Fans in Process Industries

• High-Speed Robotics and Machine Tools

Why Choose the Schneider Electric ATV340D30N4E?

• High Dynamic Performance for Demanding Machines

• Embedded Ethernet & Web Server

• Integrated Safety and EMC Compliance

• Ideal for OEMs Requiring Modular and Scalable Drive Solutions
