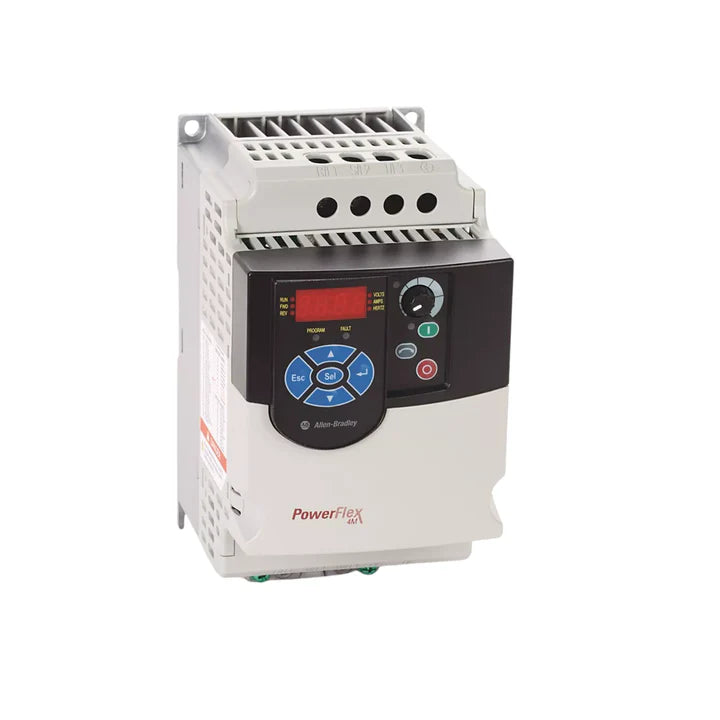

Allen-Bradley 22F-D024N114 | PowerFlex 4M AC Drive, 480V AC,

Allen-Bradley 22F-D024N114 | PowerFlex 4M AC Drive, 480V AC, 3-Phase, 24A, 11 kW (15 HP)

Overview

The Allen-Bradley 22F-D024N114 PowerFlex 4M is a compact and cost-effective variable frequency drive (VFD) designed for industrial motor control applications. Operating at 480V AC, 3-phase, with a 24A output current, it provides 11 kW (15 HP) of power, making it ideal for pumps, fans, conveyors, and general-purpose motor control.

This model features an IP20 open enclosure, an LED display with a fixed digital keypad, an internal CE-compliant filter, and RS485 communication, ensuring seamless integration and efficient motor control in various industrial environments.

Key Features

• Voltage and Power Ratings:
  • 480V AC, 3-Phase
  • 24A Output Current
  • 11 kW (15 HP) Motor Rating
• Frame Size C – Compact and space-saving design
• Fixed Digital Keypad with LED Display – Provides easy setup and operation
• Integrated RS485 Communication – Enables network connectivity
• Built-In CE-Compliant Filter – Ensures electromagnetic compatibility
• IP20 Open-Type Enclosure – Suitable for panel-mounted applications
• Sensorless Vector Control (SVC) – Enhances motor performance and efficiency
• User-Friendly Programming – Simplifies installation and operation

Technical Specifications

• Model: 22F-D024N114
• Series: PowerFlex 4M
• Voltage Input: 480V AC, 3-Phase
• Output Current: 24A
• Motor Power Rating: 11 kW (15 HP)
• Enclosure Rating: IP20 (Open)
• Control Type: V/Hz Control, Sensorless Vector Control (SVC)
• Communication Protocol: RS485
• Filter: Internal CE-Compliant
• Keypad Type: Fixed Digital Keypad with LED Display
• Mounting: Panel Mount
• Operating Temperature: 0°C to 50°C (32°F to 122°F)

Applications

• Industrial Motor Control – Provides efficient speed and torque control
• Pumps and Fans – Enhances energy efficiency and process automation
• Conveyors and Material Handling – Ensures smooth operation and load handling
• HVAC and Ventilation Systems – Optimizes airflow and temperature control
• General-Purpose Machine Automation – Supports various industrial applications

Why Choose the Allen-Bradley 22F-D024N114?

• Compact and Cost-Effective Drive Solution – Ideal for space-constrained applications
• Reliable Performance and Energy Efficiency – Ensures smooth motor operation
• Built-In CE-Compliant Filter – Reduces electromagnetic interference
• Easy-to-Use Interface with LED Display – Simplifies setup and operation
• Seamless RS485 Communication Integration – Supports networked motor control

Order Now

Fast shipping and worldwide delivery available.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
