Infineon FZ2400R33HE4

nfineon FZ2400R33HE4

Overview

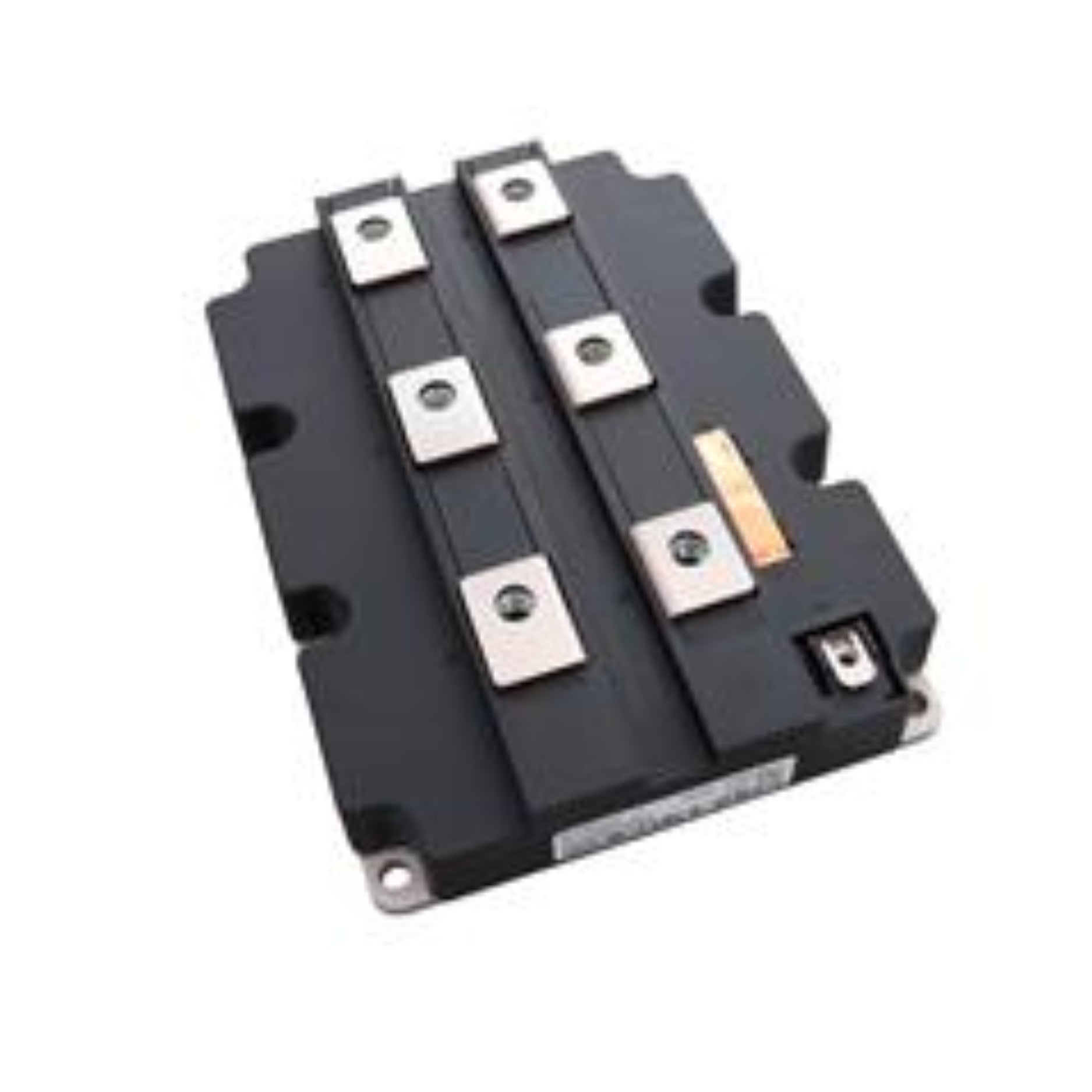

The Infineon FZ2400R33HE4 is an ultra-high-capacity IGBT module rated at 2400 A and 3300 V, utilizing advanced Trench‑Field‑Stop IGBT4 technology within a durable PrimePACK™ 4 chassis-mount housing. Engineered for the highest-demand industrial and utility applications, it offers outstanding efficiency, thermal performance, and high-frequency switching—ideal for large-scale grid converters, traction systems, utility power plants, and heavy-duty drives.

Key Features

• Collector–Emitter Voltage: 3300 V

• Continuous Collector Current: 2400 A

• Trench‑Field‑Stop IGBT4 technology—low conduction and switching losses

• Integrated fast-recovery free-wheeling diode

• PrimePACK 4 heavy-duty package

• Low stray inductance with high creepage/clearance

• Built-in NTC thermistor for temperature monitoring

• Pre-applied thermal interface material

• Modular design allowing parallel operation

Technical Specifications

• Part Number: FZ2400R33HE4

• Configuration: Single IGBT module

• Voltage Rating: 3300 V

• Current Rating: 2400 A continuous

• Package: PrimePACK 4

• Isolation Voltage: ≥4000 V AC

• Mounting Type: Chassis with screw terminals

• Operating Temperature: –40 °C to +150 °C (Tj)

• Switching Frequency: Up to ~10 kHz

• NTC Thermistor: Included

Applications

• Utility-scale grid converters & industrial inverters

• High-power traction and rail drive systems

• Renewable energy power plants (wind/solar)

• Mass transit power modules

• Large UPS and converter systems

Why Choose the FZ2400R33HE4

• Industry-leading current and voltage capacity for supreme power systems

• Optimized continuous-load performance with strong thermal design

• PrimePACK 4 standard enables seamless integration in modular power setups

• Temperature sensor and thermal interface simplify installation and monitoring

• Backed by Infineon’s advanced IGBT4 platform for maximum industrial reliability

Order Now

The Infineon FZ2400R33HE4 IGBT module is available through major industrial distributors and ships worldwide.
